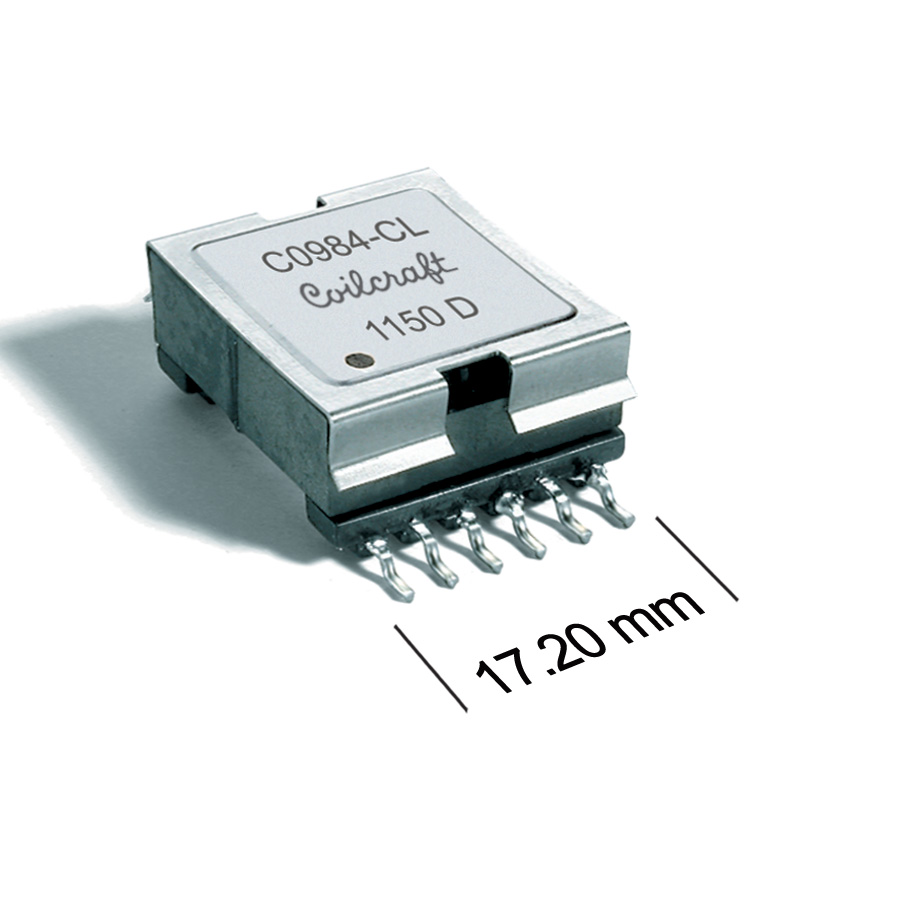

C0984-CL Transformer

for Maxim MAX5074

RoHS 준수
  • Designed for use in forward converters with Maxim MAX5074 Isolated PWM Power IC
  • Can be used in Power over Ethernet (PoE) applications
  • Ideal for telecom applications with an input from 36 V to 72 V
  • Very low secondary winding DCR

지금 구매:
개수 단품 가격
1 $1.67
200 $1.50
600 $1.25
1200 $1.09
2400 $0.94
5000 $0.83

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

통상적인 적용 분야

Maxim MAX5074와(과) 호환

입력 전압 출력 전력 FSW
Sec Bias
36 V 72 V 12 V , 1.5 A 14 V , 0.03 A 18 W 10 kHz

사양

Electrical specifications at 25°C.

부품 번호 1
(Hover for schematics)
인덕턴스
최소 (µH) 2
DCR max (Ω) 3 누설
인덕턴스
최대 (µH) 4
권수비 절연
전압 (Vrms) 5
Pri Sec Bias Pri : Sec : Bias
C0984-CL_ 395 0.127 0.065 0.875 1.8 1 : 0.88 : 0.44 1500
메모
  1. When ordering, please specify packaging code: e.g. C0984-CLD
  2. Inductance is for the primary, measured at 10 kHz, 0.1 Vrms, 0Adc.
  3. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. Leakage inductance is for the primary winding with the other windings shorted.
  5. Isolation is measured from the primary and bias windings to the secondary.

종단 처리:

  • RoHS-compliant. 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations.

패키지:

  • D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +125°C
보관 온도 범위:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
고장 비율(FIT) / 평균 고장률(MTBF):

회로도

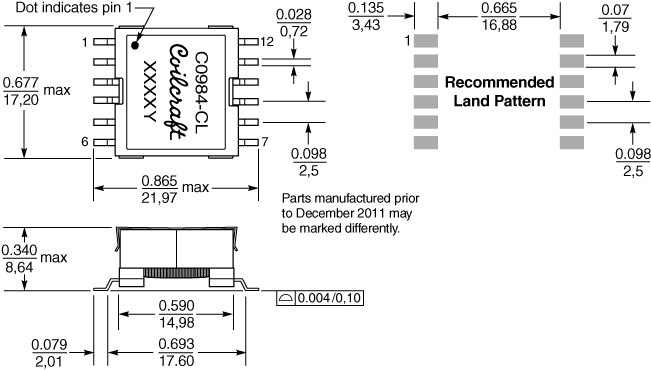

물리적 특성




테이프 및 릴 사양



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c.gif
200 330 100 13 50,4 44,4 44 28 4 2 9,6 0,35

일반 사양

중량:
5.8 g
패키지:
200/13″ reel Plastic tape: 44 mm wide, 0.35 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth

세척

PCB 세척:
Tested with pure water or alcohol only. More info.
