B0695-A Flyback Transformer

for Texas Instruments LM5020

RoHS 준수
  • Developed for TI LM5020 PWM Controller
  • Can be used in PoE applications
  • 1 MHz operating frequency
  • Low profile, surface mount

지금 구매:
개수 단품 가격
1 $5.24
175 $4.49
700 $3.92
1400 $3.05
2800 $2.62
5000 $2.39

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

통상적인 적용 분야

Texas Instruments LM5020와(과) 호환

입력 전압 출력 전력 FSW
Sec Bias
36 V 72 V 3.3 V , 4.5 A 12 V , 0.02 A 15 W 1000 kHz

사양

Electrical specifications at 25°C.

부품 번호 1
(Hover for schematics)
인덕턴스
@ 0A (µH) 2
(허용 오차: ±10%)
인덕턴스
최소 @   1.5 A (µH)
DCR max (Ω) 3 누설
인덕턴스
최대 (µH) 4
권수비 5 정전용량
max (pF)
절연
전압 (Vrms) 6
Pri Sec Bias Pri : Sec : Bias
B0695-AL_ 110.0 99.0 0.133 0.019 0.656 1.1 1 : 0.23 : 0.69 110 1500
메모
  1. When ordering, please specify a packaging code: B0695-ALD
  2. Inductance is for the primary, measured at 10 kHz, 0.1 Vrms, 0 Adc
  3. DCR for the secondary is per winding.
  4. Leakage inductance measured between pins 4 and 6 with all other pins shorted.
  5. Turns ratio is with the secondary windings connected in parallel.
  6. Isolation is measured from the primary and bias windings to the secondary.

종단 처리:

  • RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

  • D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +85°C
보관 온도 범위:
Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C
고장 비율(FIT) / 평균 고장률(MTBF):

회로도


Secondary windings to be connected
in parallel on the PC board

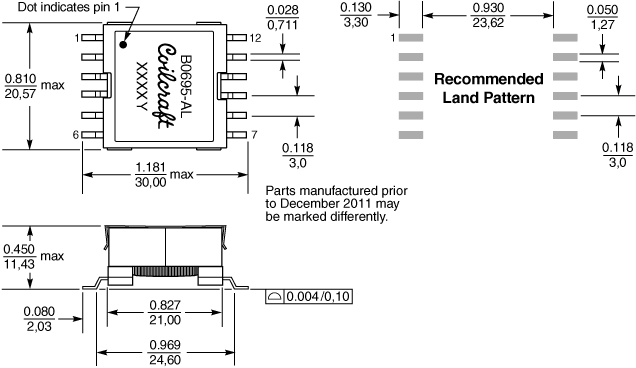

물리적 특성



테이프 및 릴 사양



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c.gif
175 330 100 13 50,4 44,4 44 32 4 2 11,9 0,4

일반 사양

코어 소재:
Ferrite
중량:
12.8 g
패키지:
175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested with pure water or alcohol only. More info.
