No-Opto Flyback Transformer

AC1584-AL

RoHS 준수
The AC1584-AL no-opto flyback transformer is designed for the EVL8017-L-00B PoE PD Flyback converter evaluation board from Monolithic Power. It has no auxiliary winding, specifically designed for active-clamp, primary side regulation (PSR) in a flyback topology. The AC1584-AL is optimized for a 37 – 57 V input voltage range and generates an output at 5 V, 2.4 A.
  • Optimized for MP8017 Active clamp Flyback converter for Monolithic Power.
  • Designed to meet IEEE802.3af standard for 13 W POE PD converters and operates with 37 – 57 V input
  • 1500 Vrms, one minute isolation (hipot) between primary and secondary

지금 구매:

The part number you have selected is not available through our online store.

Please click the "Request Quote" button for pricing and more information.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

통상적인 적용 분야

Monolithic Power MP8017와(과) 호환

입력 전압 출력 전력 FSW
37 V 57 V 5 V , 2.4 A 13 W 100 kHz

사양

Electrical specifications at 25°C.

부품 번호
(Hover for schematics)
인덕턴스
@ 0A (µH) 1
(허용 오차: ±10%)
Isat (A) DCR max (Ω) 2 누설
인덕턴스
최대 (µH) 3
권수비 절연
전압 (Vrms) 4
Pri Sec1 Sec2 Pri : Sec1 : Sec2
AC1584-ALD 55 1.8 0.195 0.024 0.018 1.25 1 : 0.208 : 0.208 1500
메모
  1. Inductance is for the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc.
  2. DC current that causes the primary inductance drop 30% from its value without current.
  3. Leakage inductance is for the primary winding with the secondary windings shorted.
  4. 1500 Vrms, one minute isolation (hipot) between primary and secondary.

종단 처리:

  • RoHS tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

패키지:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +85°C
보관 온도 범위:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
최고 부품 온도:
+125°C (ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

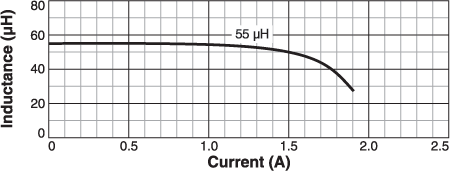

L vs Current

회로도


Connect pin 5 to 6 and pin 7 to 8 on the PC board

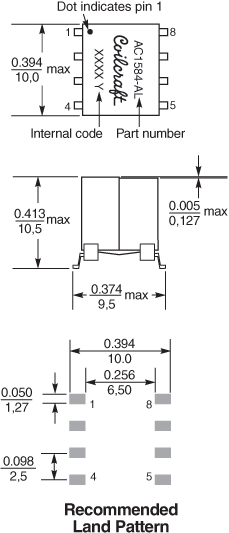

물리적 특성


테이프 및 릴 사양



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c.gif
300 330 100 13 38,4 32,4 32 20 4 2 10,69 0,5

일반 사양

코어 소재:
Ferrite
중량:
2.1 g
패키지:
300/13″ reel Plastic tape: 32 mm wide, 0.50 mm thick, 20 mm pocket spacing, 10.69 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
