ZE2531 Series

Isolation Transformer for 10BASE-T1L Applications

The ZE2531-AL Isolation Transformer is designed to provide galvanic isolation for Single Pair Ethernet (SPE) networks, supporting 10Base-T1L and Power over Data Line (PoDL) for transmitting both data and power over a single twisted pair cable. The part is compliant with the IEEE 802.3cg standard. It works with 10Base-T1L common mode choke and power injection chokes as a complete solution for 10Base-T1L applications, including industrial automation, building automation, IoT, and others, where low-cost, long-range Ethernet is essential.

Isolation transformer designed for 10Base-T1L applications
Compliant with IEEE802.3cg standard
3000 VDC, 2000 Vrms, one minute isolation (hipot) between windings
AEC-Q200 qualified

지금 구매:

부품 번호

내 부품 찾기

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±30%)	DCR max (Ω)	누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vdc) 5	Irms (mA) 3
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±30%)	DCR max (Ω)	누설 인덕턴스 최대 (µH) 4	Pri : Sec	절연 전압 (Vdc) 5	Irms (mA) 3
ZE2531-105LC	1.0	0.185	0.09	1 : 1	3000	1000
ZE2531-225LC	2.2	0.516	0.13	1 : 1	3000	520

메모

When ordering, please specify packaging code: e.g. ZE2531-225LC
Inductance is measured at 100 kHz, 0.1 Vrms, 0 ADC.
Irms current is the current when applied to both windings in series that causes a 40°C temperature rise from room temperature.
Leakage inductance is measured on pins 1 and 2 with the same test parameters as inductance with pins 3 and 4 shorted.
3000 VDC, 2000 Vrms, one minute isolation (hipot) between primary to secondary.

종단 처리:

RoHS compliant matte tin over nickel over phos-bronze

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +140°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+140°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

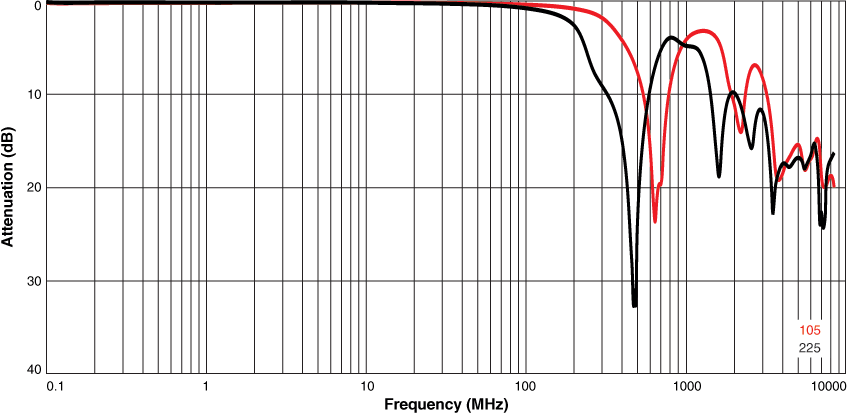

Attenuation vs Frequency (Insertion Loss Sdd21)

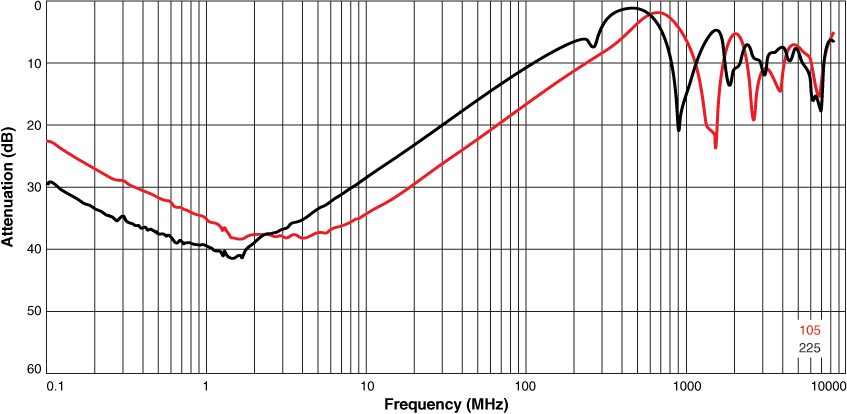

Attenuation vs Frequency (Return Loss Sdd11)

회로도

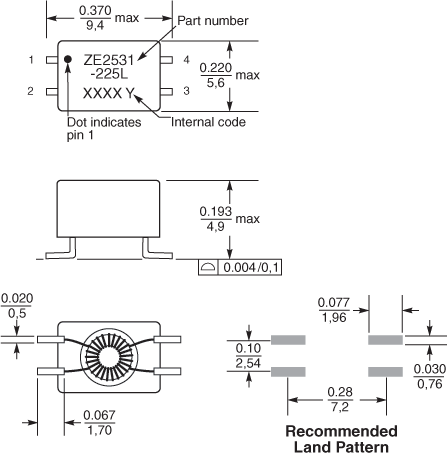

물리적 특성

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	4,8	0,4

* Special order

일반 사양

코어 소재:

Ferrite

중량:

290 – 310 mg

패키지:

250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 4.8 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
