3D Model Datasheet

PA6598-AL Isolation Transformer

Designed for ON Semiconductor NCP4305FBDAP 65 W Off-Line AC/DC Adapter
Suitable for gate drive and other power applications
Reinforced insulation class

COTS Plus tin-silver-copper and tin-lead terminations available

지금 구매:

개수	단품 가격
1	$4.19
100	$3.60
500	$2.10
1000	$1.84
2500	$1.58
5000	$1.44

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±30%)	DCR max (mΩ) 2	권수비	전압시간적 (V-µs) 3	절연 전압 (Vrms) 4
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±30%)	DCR max (mΩ) 2	Pri : Sec	전압시간적 (V-µs) 3	절연 전압 (Vrms) 4
PA6598-AL	16	33.0	1 : 1	8.64	3000

메모

Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR is per winding, measured at 25°C on a Cambridge Technology micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
Volt-time product is for the primary, between pin 1 and 2.
3000 Vrms, one minute isolation (hipot) between windings.

종단 처리:

RoHS tin-silver over tin over nickel over phos bronze.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C

보관 온도 범위:

Component: –40°C to +85°C
Tray packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

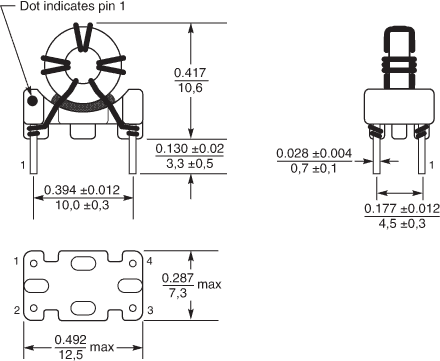

물리적 특성

일반 사양

코어 소재:

Ferrite

중량:

0.77 g

패키지:

100 per tray

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
