Isolation Transformers

Great News! More Choices!
See UA825x for a significantly smaller and lower profile solution (10 × 6.8 × 4.3 mm).

For increased creepage and clearance specification along with improved isolation rating, see ZA9801 (17.07 x 10.3 x 5.97 mm).

Optimized for Texas Instruments SN6501, ISO1176T/35T/3086T and Analog Devices ADM2482E/2485/2487E RS-485 Transceivers
Center tapped primary and secondary
AEC-Q200 Grade 1 (−40°C to +125°C)
Contact us for 8 mm creepage and clearance options.

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$3.20
300	$2.73
600	$2.38
1200	$1.86
2400	$1.59
5000	$1.46

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Texas Instruments SN6501, ISO1176T/35T/3086T와(과) 호환

부품 번호	일차 전압	이차 전압	전력 1	FSW
DA2304-AL_	3.3 V	6 V	7.2 W	500 kHz
DA2303-AL_	5 V	6 V	7.2 W	500 kHz

사양

Electrical specifications at 25°C.

부품 번호 2 (Hover for schematics)	인덕턴스 최소 (µH) 3	DCR max (Ω) 4		누설 인덕턴스 최대 (µH) 5	권수비	전압시간적 (V-µs) 6	절연 전압 (Vrms) 7
부품 번호 2 (Hover for schematics)	인덕턴스 최소 (µH) 3	Pri	Sec	누설 인덕턴스 최대 (µH) 5	Pri : Sec	전압시간적 (V-µs) 6	절연 전압 (Vrms) 7
DA2304-AL_	17.8	0.086	0.232	0.43	1 : 2.2	21.5	2500
DA2303-AL_	45.6	0.130	0.260	1.00	1 : 1.5	34.4	2500

메모

Calculated output power based on 150 kHz operating frequency. Power varies depending on application.
When ordering, please specify termination and packaging codes: e.g. DA2303-ALD
Inductance is tested between pins 4 and 3 at 500 kHz, 0.5 Vrms, 0 Adc.
DCR is per winding at 25°C. For other operating temperatures, use this use this DCR at Temperature calculator.
Leakage inductance is for the primary with both windings connected in series and with the secondary windings shorted.
Volt-time product is for the primary, between pins 4 and 1 with pins 2 and 3 connected.
2500 Vrms, one minute primary to secondary isolation.

종단 처리:

L = RoHS compliant tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order)
S = non-RoHS tin-lead (63/37). (Special order)

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

−40°C to +125°C

보관 온도 범위:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

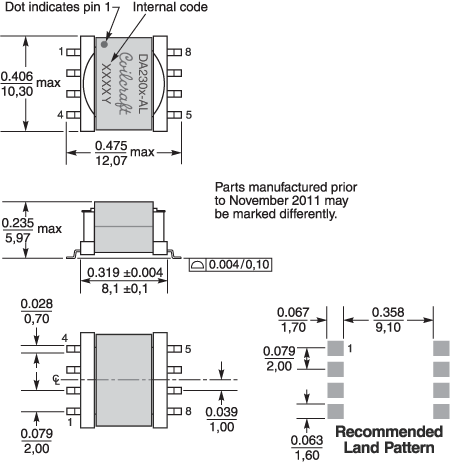

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	330	100	13	30,4	24,4	24	16	4	2	6,1	0,37

일반 사양

코어 소재:

Ferrite

중량:

0.94 – 1.0 g

패키지:

600/13″ reel Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Three reflows at >217°C for 90 seconds (+260°C ±:5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
