Datasheet 3D 모델

Transformers

for ADI ADuM4070 Isolated Switching Regulator

Developed to work with Analog Devices ADuM4070 Isolated switching regulator with integrated feedback
Power rating: 2 Watts

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$5.08
175	$4.30
350	$3.75
700	$3.26
1400	$2.61
2800	$2.22
5000	$2.04

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Analog Devices ADuM4070와(과) 호환

부품 번호	일차 전압	이차 전압
CR7983-CL_	5 V	3.3 V — 15 V
CR7984-CL_	5 V	12 V — 24 V
CR7985-CL_	5 V	5 V — 15 V

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 최소 (µH) 2	DCR max (Ω) 3		누설 인덕턴스 최대 (µH) 4	권수비	전압시간적 (V-µs) 5	절연 전압 (Vrms) 6
부품 번호 1 (Hover for schematics)	인덕턴스 최소 (µH) 2	Pri	Sec	누설 인덕턴스 최대 (µH) 4	Pri : Sec	전압시간적 (V-µs) 5	절연 전압 (Vrms) 6
CR7983-CL_	256	0.16	0.32	0.75	1 : 2	18	5000
CR7984-CL_	256	0.17	0.45	0.75	1 : 3	18	5000
CR7985-CL_	256	0.17	2.00	0.72	1 : 5	18	5000

메모

When ordering, please specify packaging code: e.g. CR7983-CLD
Inductance is for the primary, measured from pins 12 – 11 at 1 kHz, 0.1 V.
DCR is for each winding of the primary and secondary.
Leakage inductance is for the primary windings, measured from pins 12 – 11 with all secondary windings shorted.
Based on VIN max, FSW min and number of primary turns.
Isolation: 5000 Vrms, one second primary to secondary.

종단 처리:

Tin-silver-copper over tin over nickel over phos bronze.

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

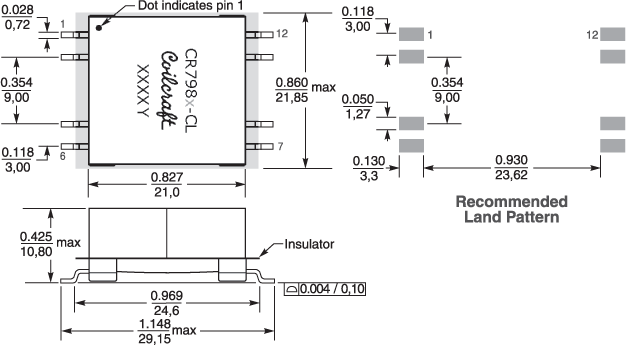

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

일반 사양

코어 소재:

Ferrite

중량:

10.1 g

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested with pure water or alcohol only. More info.
