3D Model Datasheet

YA9215-AL 50 W Resonant Transformer

Planar Transformer for Microchip EV84C64A

The YA9215 planar transformer is specifically designed for use on the EV84C64A model 50 W interleaved LLC converter development board from Microchip. The planar design is constructed with flat coil windings and copper plates to offer high power density and higher current handling in a lower profile package compared with traditional wire wound transformers.

Designed for 50 W interleaved LLC converter development board EV84C64A from Microchip
New planar transformer design, higher power density and lower profile vs. the wire wound type
Operates up to 1000 kHz, with 38 – 42 V DC input voltage

지금 구매:

개수	단품 가격
1	$15.53
108	$12.68
252	$9.51
504	$5.71

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

L = Matte tin over nickel over brass

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Microchip EV84C64A와(과) 호환

입력 전압	전력	FSW
38 V — 42 V	50 W	800 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	DCR max (mΩ) 2		누설 인덕턴스 최대 (µH) 3	권수비	전압시간적 (V-µs) 4	절연 전압 (Vrms) 5
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Pri	Sec	누설 인덕턴스 최대 (µH) 3	Pri : Sec	전압시간적 (V-µs) 4	절연 전압 (Vrms) 5
YA9215-ALD	3.2	7.35	0.65	0.105	1 : 0.25	75	500

메모

Inductance is for the primary, measured on Agilent/HP 4284A at 800 kHz, 0.8 Vrms, 0 Adc with primary windings connected in parallel.
DCR for the primary is measured with the windings connected in parallel. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage Inductance is for the primary, measured at 800 kHz, 0.8 Vrms, 0 Adc with primary windings connected in parallel and all secondary pins shorted.
Volt-time product is based on primary windings connected in parallel.
500 Vrms, one minute isolation hipot) from primary to secondary.

종단 처리:

RoHS-compliant 260°C compatible. Matte tin over nickel over brass.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tray packaging: –40°C to +80°C

최고 부품 온도:

+145°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

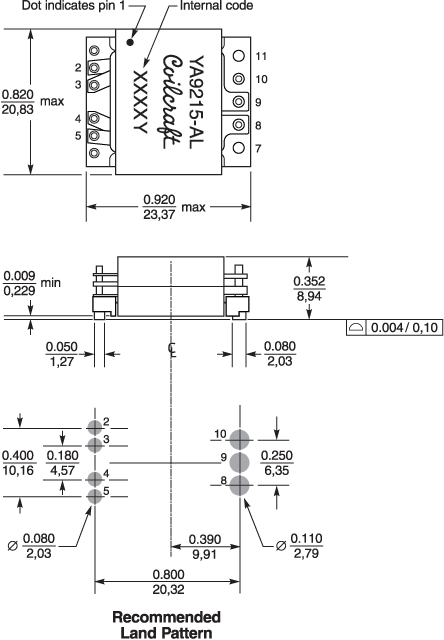

물리적 특성

일반 사양

코어 소재:

Ferrite

중량:

11.44 g

패키지:

36 per tray

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
