0402AF

Ferrite Chip Inductors

Great News! More choices!

See 0402DF for the widest inductance range (20 to 3300 nH) and much lower DCR (up to 45% lower).

Our 0402AF Series is the first generation of 0402 wirewound ferrite chip inductors. It has inductance values from 20 nH to 560 nH and higher current handling than ceramic constructions of similar values. For much lower DCR, consider our newer 0402DF Series.

Higher inductance values than other 0402 inductors
Ferrite construction for high current handling
±5% inductance tolerance for all values
23 inductance values from 20 nH to 560 nH

Need parts for space, military or other critical applications?
See Coilcraft ST235RAM Series

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.51
200	$1.09
500	$0.73
1000	$0.51
2000	$0.38
4000	$0.30
10000	$0.21

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

J = 5%

Termination

L = Gold over nickel over silver-palladium-glass frit

Packaging

W = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

설계자용 키트:

키트	값	가격
C397	23 (20 of each)	$55.00

사양

Electrical specifications at 25°C.

부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	임피던스, 통상 (Ω)		SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	900 MHz	1.7 GHz	SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
0402AF-200XJL_	20	5	83.0	118	2.6	50.0	1600
0402AF-220XJL_	22	2,3,5	96.0	146	2.5	65.0	1300
0402AF-330XJL_	33	5	142	207	2.3	60.0	1400
0402AF-360XJL_	36	2,3,5	157	249	2.3	75.0	1300
0402AF-390XJL_	39	2,3,5	173	263	2.2	115	830
0402AF-510XJL_	51	2,3,5	218	330	1.9	70.0	1100
0402AF-560XJL_	56	5	239	360	1.9	95.0	1000
0402AF-720XJL_	72	5	311	453	1.7	100	1000
0402AF-780XJL_	78	2,3,5	344	522	1.6	130	970
0402AF-101XJL_	100	2,3,5	513	850	1.4	160	900
0402AF-141XJL_	140	2,3,5	629	949	1.2	260	630
0402AF-181XJL_	180	2,3,5	832	1270	1.2	280	560
0402AF-201XJL_	200	5	1110	1890	1.0	440	400
0402AF-221XJL_	220	2,3,5	1050	1560	1.2	530	380
0402AF-251XJL_	250	5	1230	1940	0.90	360	520
0402AF-271XJL_	270	2,3,5	1320	1960	0.86	550	360
0402AF-301XJL_	300	2,3,5	1550	2230	0.86	410	420
0402AF-331XJL_	330	5	1850	2880	0.82	560	350
0402AF-361XJL_	360	5	1920	2640	0.81	575	360
0402AF-391XJL_	390	5	2350	2970	0.76	750	300
0402AF-421XJL_	420	5	2270	2800	0.70	700	340
0402AF-471XJL_	470	2,3,5	2680	3010	0.65	730	310
0402AF-561XJL_	560	2,3,5	3620	3110	0.60	920	200

메모

When ordering, please specify termination and packaging codes: e.g. 0402AF-561XJLW
Inductance measured at 7.9 MHz, 0.1 Vrms, using an Agilent/HP 4286A LCR meter or equivalent with a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured at 25°C using a Cambridge Technology Micro-ohmmeter and a Coilcraft CCF805 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. Because of their open construction, these parts will not saturate. This information is for reference only and does not represent absolute maximum ratings.

종단 처리:

L = RoHS compliant gold over nickel over silver-palladium-glass frit
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

패키지:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Q = 7″ machine-ready reel. EIA-481 punched paper tape (5000 parts per full reel).
Y = 7″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C with Irms current

보관 온도 범위:

Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+100°C (ambient + temp rise) Derating.

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

L vs Frequency

Q vs Frequency

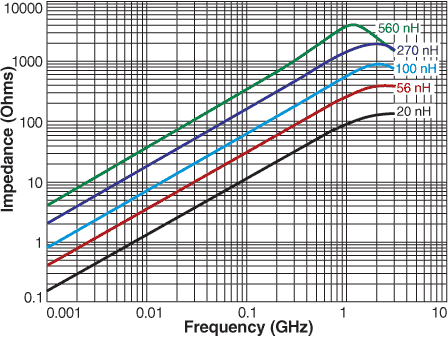

Z vs Frequency

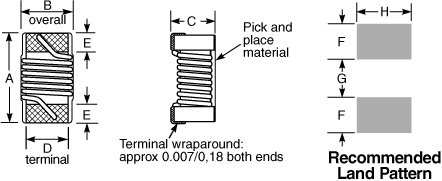

물리적 특성

A max²	B max	C max³	D ref	E	F	G	H
0.044	0.026	0.026	0.020	0.009	0.017	0.018	0.026	inches
1,12	0,66	0,66	0,51	0,23	0,43	0,46	0,66	mm

Notes:

Unless otherwise indicated, all dimensions are nominal.
Length dimension (A) is before optional solder application. Maximum dimension including solder is 0.045 in / 1.143 mm.
Height dimension (C) is before optional solder application. For maximum height dimension including solder, add 0.006 in / 0,152 mm.

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	178	100	13	14,4	8,4	8	2	4	2	0,68
5000*	178	100	13	14,4	8,4	8	2	4	2	0,68
10000*	178	100	13	14,4	8,4	8	2	4	2	0,68

* Special order

일반 사양

코어 소재:

Ferrite

중량:

0.9 – 1.1 mg

패키지:

2000 or 5000 or 10000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
