1512SP 2712SP Series

1512SP / 2712SP Series

Mini Air Core Inductors

Inductance values from 2.5 nH to 150 nH (tolerances as low as 2%)
Tight tolerance can eliminate circuit tuning
Acrylic jacket provides a flat top for pick and place
Exceptionally high Q over a wide frequency range
Solder coated leads ensure reliable soldering
Wide range of standard EIA inductance values
Available in two sizes: 4.45 × 3.94 × 3.15 mm and 6.86 × 4.45 × 3.15 mm
RoHS-compliant 260°C compatible. Terminations: tin-silver over copper
COTS Plus tin-silver-copper and tin-lead terminations available

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.06
350	$0.87
700	$0.70
1400	$0.60
2100	$0.40
4000	$0.27

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

K = 10%

Termination

E = Tin-silver

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

설계자용 키트:

키트	값	가격
C501	32 (10 of each)	$85.00
C501-2	32 (10 of each)	$105.00

사양

Electrical specifications at 25°C.

1512SP Series

부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	Q min @ 150 MHz 4	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	Q min @ 150 MHz 4	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
1512SP-2N5K1E_	2.5	10	80	14.0	1.0	11.1
1512SP-2N7K1E_	2.7	10	80	14.0	3.0	8.4
1512SP-4N7_2E_	4.7	1,2,5	80	18.0	2.0	9.4
1512SP-5N6_2E_	5.6	1,2,5	80	18.0	3.2	6.6
1512SP-6N8_3E_	6.8	1,2,5	80	6.4	2.1	9.8
1512SP-8N2_3E_	8.2	1,2,5	80	7.2	2.9	7.4
1512SP-10N_4E_	10.0	1,2,5	80	3.4	2.5	9.2
1512SP-12N_4E_	12.0	1,2,5	80	4.1	3.5	8.0
1512SP-15N_4E_	15.0	1,2,5	80	4.5	5.0	5.9
1512SP-18N_4E_	18.0	1,2,5	80	5.2	9.3	3.7
1512SP-22N_5E_	22.0	1,2,5	80	3.1	5.3	5.2
1512SP-27N_5E_	27.0	1,2,5	80	4.2	10.6	3.5
1512SP-33N_6E_	33.0	1,2,5	80	2.8	8.6	3.9
1512SP-43N_7E_	43.0	1,2,5	80	2.1	10.6	4.3
1512SP-51N_7E_	51.0	1,2,5	80	2.1	14.5	2.7
1512SP-62N_8E_	62.0	1,2,5	80	1.8	15.5	2.7

2712SP Series

부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	Q min @ 150 MHz 4	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
부품 번호 1	인덕턴스 (nH) 2	허용 오차 (%) 3	Q min @ 150 MHz 4	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
2712SP-10N_4E_	10.0	1,2,5	85	6.6	3.1	10.3
2712SP-12N_5E_	12.0	1,2,5	85	5.8	3.4	7.8
2712SP-15N_6E_	15.0	1,2,5	85	4.9	3.3	8.2
2712SP-18N_7E_	18.0	1,2,5	85	3.9	3.5	7.9
2712SP-22N_7E_	22.0	1,2,5	85	3.9	4.5	7.0
2712SP-27N_8E_	27.0	1,2,5	85	3.1	5.0	6.6
2712SP-33N_8E_	33.0	1,2,5	85	3.3	7.4	5.1
2712SP-39N_9E_	39.0	1,2,5	90	2.7	6.8	4.6
2712SP-47N_0E_	47.0	1,2,5	90	2.4	8.0	4.8
2712SP-51N_0E_	51.0	1,2,5	95	2.4	9.3	4.1
2712SP-56N_0E_	56.0	1,2,5	95	2.6	15.5	2.9
2712SP-68N_1E_	68.0	1,2,5	100	2.3	16.0	3.1
2712SP-82N_3E_	82.0	1,2,5	100	1.9	14.7	2.8
2712SP-101_4E_	100.0	1,2,5	100	1.8	19.0	2.3
2712SP-121_4E_	120.0	1,2,5	100	1.6	26.5	2.3
2712SP-151_6E_	150.0	1,2,5	100	1.4	29.0	2.2

메모

When ordering, please specify tolerance, termination and packaging codes: e.g. 2712SP-151J6EC
Inductance measured at 150 MHz using an Agilent/HP 4286A or equivalent with a Coilcraft SMD-A fixture and Coilcraft supplied correlation.
Tolerances in bold are stocked for immediate shipment.
Q measured at 150 MHz using an Agilent/HP 4291A with an Agilent/HP 16193A test fixture or equivalents.
SRF measured with an Agilent 8753ES network analyzer or equivalent and a Coilcraft CCF1268 test fixture. Details
DCR tested at 25°C on a Keithley 580 Micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 125°C ambient. This information is for reference only and does not represent absolute maximum ratings.

허용 오차:

F = 1%, G = 2%, J = 5%, K = 10% (Table above shows stock tolerances in bold.)

종단 처리:

E = Halogen free component. RoHS compliant tin-silver (96.5/3.5) over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape, 700 (1512SP) or 500 (2712SP) parts per full reel. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked, 2500 (1512SP) or 2200 (2712SP) parts per full reel.

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

−40°C to +125°C with Irms current.

보관 온도 범위:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

최고 부품 온도:

+140°C (Ambient + temperature rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

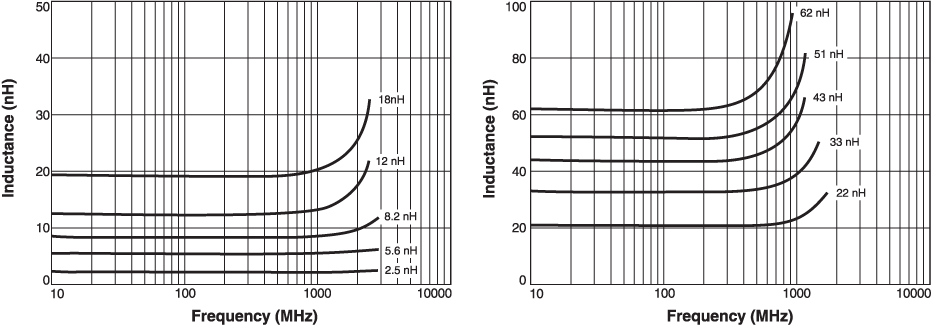

L vs Frequency

1512SP

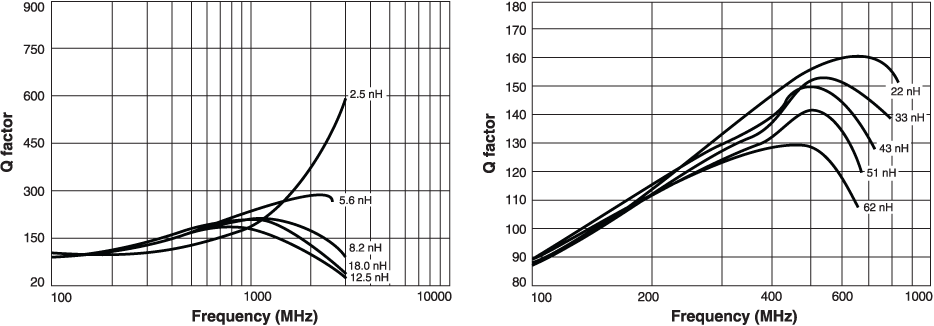

Q vs Frequency

1512SP

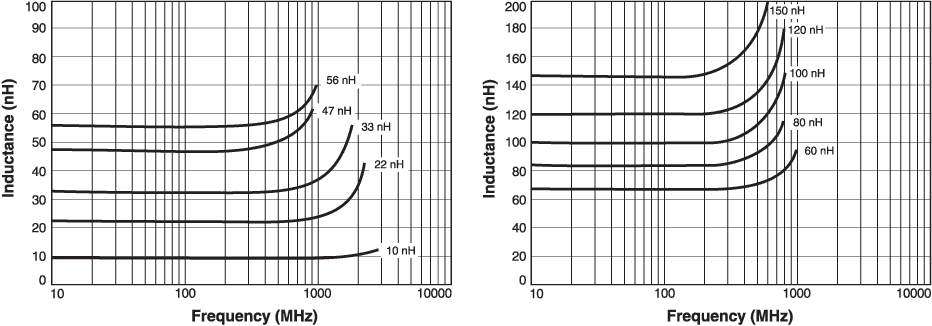

L vs Frequency

2712SP

Q vs Frequency

2712SP

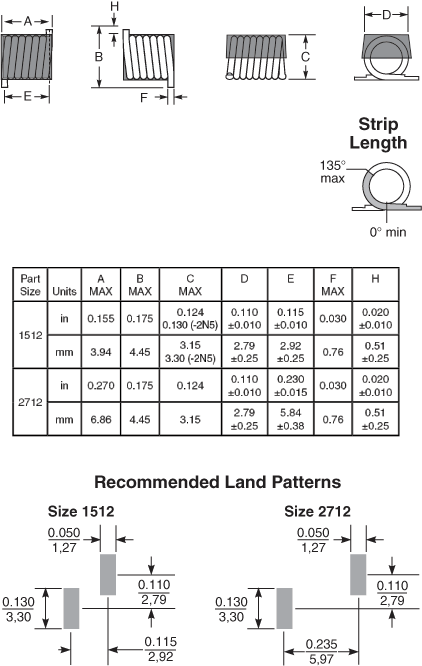

물리적 특성

테이프 및 릴 사양

Parts per reel			Reel dimensions (mm)					Tape dimensions (mm)
	7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1512SP	700	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,3	0,32
2712SP	500	2200*	178/330	60/100	13	12,4	16,4	16	8	4	2	3,4	0,28

* Special order

일반 사양

Temperature coefficient of inductance:

+5 to +70 ppm/°C

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
