RFC0810B Series

Power Inductors

For values <33 µH, please consider the RFB0810 series. The RFB0810 is the same size and has the same PC board layout.

Coilcraft RFC0810B Series unshielded, radial-leaded inductors are a low-cost option for general-purpose applications. RFC0810B Series are cost-reduced higher inductance versions.

Open magnetic path
Rugged through-hole (TH) mount construction
High saturation current ratings
Ferrite core gives flat L vs I curve
AEC-Q200 Grade 3 (−40°C to +85°C)

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.21
150	$0.99
300	$0.75
600	$0.45
1050	$0.35
2550	$0.30
5100	$0.28
10000	$0.25

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

K = 10%

Termination

E = Tin-silver over tin over copper over steel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호 1	인덕턴스 (mH) 2 (허용 오차: ±10%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
부품 번호 1	인덕턴스 (mH) 2 (허용 오차: ±10%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
RFC0810B-333KE	0.033	0.065	0.075	9.0	3.5	4.0	4.3	2.1	3.0
RFC0810B-393KE	0.039	0.070	0.085	8.7	3.2	3.7	4.0	2.0	2.8
RFC0810B-473KE	0.047	0.080	0.095	7.5	2.9	3.3	3.6	1.9	2.6
RFC0810B-563KE	0.056	0.11	0.13	7.3	2.7	3.1	3.3	1.6	2.2
RFC0810B-683KE	0.068	0.12	0.14	6.3	2.5	2.8	3.0	1.5	2.1
RFC0810B-823KE	0.082	0.16	0.19	5.2	2.2	2.5	2.7	1.3	1.8
RFC0810B-104KE	0.100	0.19	0.21	5.0	2.0	2.3	2.4	1.2	1.7
RFC0810B-124KE	0.12	0.21	0.24	4.9	1.8	2.1	2.2	1.2	1.6
RFC0810B-154KE	0.15	0.28	0.33	4.1	1.6	1.9	2.0	1.0	1.4
RFC0810B-184KE	0.18	0.31	0.36	3.8	1.5	1.8	1.9	0.95	1.3
RFC0810B-224KE	0.22	0.40	0.46	3.0	1.3	1.6	1.7	0.82	1.2
RFC0810B-274KE	0.27	0.46	0.53	2.9	1.2	1.4	1.5	0.75	1.1
RFC0810B-334KE	0.33	0.52	0.60	2.6	1.1	1.3	1.4	0.70	1.0
RFC0810B-394KE	0.39	0.71	0.81	2.4	1.0	1.2	1.3	0.60	0.85
RFC0810B-474KE	0.47	0.80	0.92	2.2	0.93	1.1	1.2	0.58	0.80
RFC0810B-564KE	0.56	0.90	1.1	2.0	0.84	0.97	1.1	0.55	0.75
RFC0810B-684KE	0.68	1.2	1.3	1.7	0.78	0.90	0.96	0.48	0.66
RFC0810B-824KE	0.82	1.6	1.8	1.6	0.70	0.82	0.87	0.40	0.57
RFC0810B-105KE	1.0	1.7	2.0	1.5	0.64	0.73	0.78	0.38	0.54
RFC0810B-125KE	1.2	2.4	2.7	1.2	0.58	0.66	0.71	0.33	0.46
RFC0810B-155KE	1.5	2.7	3.1	1.1	0.53	0.59	0.64	0.31	0.43
RFC0810B-185KE	1.8	3.0	3.5	1.0	0.48	0.55	0.59	0.29	0.41
RFC0810B-225KE	2.2	4.1	4.7	0.93	0.43	0.49	0.52	0.25	0.35
RFC0810B-275KE	2.7	4.7	5.4	0.89	0.39	0.45	0.48	0.23	0.33
RFC0810B-335KE	3.3	6.2	7.1	0.88	0.36	0.40	0.43	0.20	0.29
RFC0810B-395KE	3.9	7.1	8.2	0.84	0.33	0.37	0.40	0.19	0.26
RFC0810B-475KE	4.7	8.1	9.3	0.78	0.31	0.35	0.37	0.18	0.25
RFC0810B-565KE	5.6	9.9	11.5	0.59	0.28	0.31	0.33	0.15	0.22
RFC0810B-685KE	6.8	11.5	13.0	0.55	0.26	0.28	0.31	0.15	0.21
RFC0810B-825KE	8.2	17.0	17.0	0.48	0.23	0.26	0.28	0.13	0.18
RFC0810B-106KE	10	17.0	19.5	0.45	0.21	0.23	0.25	0.12	0.17
RFC0810B-126KE	12	21.5	24.5	0.40	0.19	0.22	0.23	0.11	0.15
RFC0810B-156KE	15	24.5	27.0	0.36	0.17	0.20	0.21	0.10	0.14
RFC0810B-186KE	18	27.5	30.0	0.34	0.16	0.18	0.20	0.097	0.14

메모

When ordering, please specify lead length and termination codes: e.g. RFC0810B-183KE
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc; measured on an Agilent/HP 4284A LCR meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

리드 길이:

A = 3.6 mm ±0.3 mm (special order)
B = 5.0 mm ±0.5 mm
C = 7.0 mm ±0.5 mm (special order)
D = 8.0 mm ±0.5 mm (special order)
E = 10.0 mm ±1.0 mm (special order)
F = 25.0 mm ±1.0 mm, packaged in fanfold tape, 800 parts per box (special order)

종단 처리:

E = RoHS compliant tin-silver over tin over copper over steel.
S = non-RoHS tin-lead (63/37). (Special order, added cost)

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +85°C with (40°C rise) Irms current

보관 온도 범위:

Component: –40°C to +125°C.
Tray or tape packaging: –40°C to +80°C

최고 부품 온도:

+125°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

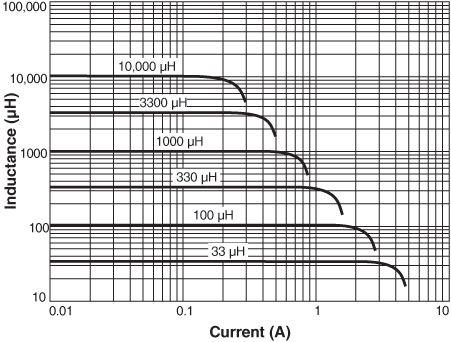

Inductance vs. Current

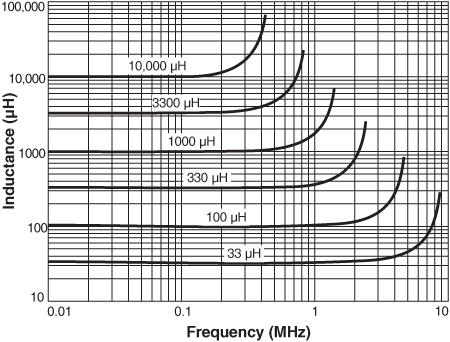

Inductance vs. Frequency

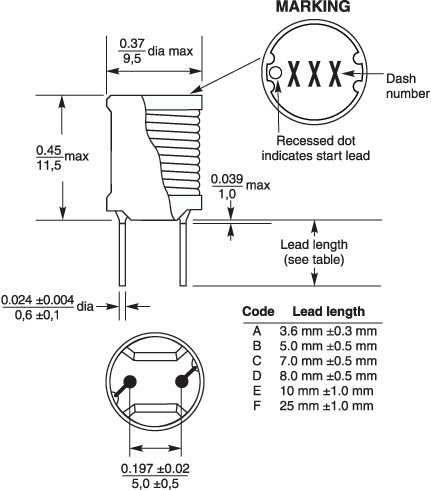

물리적 특성

일반 사양

코어 소재:

Ferrite

중량:

2.0 – 2.3 g

패키지:

150 parts per tray (all except 25 mm lead length). In fanfold tape, 800 parts per box (25 mm lead length only).

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
