PCV-1 Series

Vertical Mount Power Chokes

Coilcraft’s PCV-1 Series of high-current, radial-lead unshielded inductors are vertical-mount power chokes which have an open magnetic flux path for high current handling without saturation and have 130°C class insulation.

Simple, low cost design with rugged reliability and performance
Open core construction provides the highest saturation current available in a low cost power choke
All 130°C class insulation
RoHS-compliant. Tin-silver over copper terminations.
Plastic mounting header for maximum lead protection
For parts without the plastic mounting header see the PCV-0 Series
For parts with a ferrite bobbin core see the PCV-2 Series

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$2.46
250	$2.11
500	$1.80
1000	$1.53
2500	$1.37
5000	$1.25

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

L = Tin-silver

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호	인덕턴스 (µH) 1	Irms (A) 2	DCR max (mΩ) 3	A max (inch/mm)	B max (inch/mm)	C (inch/mm) ±0.015/0.38	D (inch/mm) ±0.004/0.10	중량 (g)
PCV-1-152-15L	1.5 ±15%	18.2	3.0	0.65 / 16.5	0.9 / 22.9	0.42 / 10.7	0.068 / 1.73	8
PCV-1-182-10L	1.8 ±15%	18.2	6.0	0.65 / 16.5	1.1 / 27.9	0.42 / 10.7	0.054 / 1.37	6.2
PCV-1-182-15L	1.8 ±15%	19.3	3.0	0.65 / 16.5	1.1 / 27.9	0.42 / 10.7	0.068 / 1.73	8.5
PCV-1-472-03L	4.7 ±15%	7.5	21.0	0.62 / 15.7	0.85 / 21.6	0.42 / 10.7	0.035 / 0.89	5.2
PCV-1-472-05L	4.7 ±15%	9.1	12.0	0.62 / 15.7	0.85 / 21.6	0.42 / 10.7	0.042 / 1.07	5.6
PCV-1-472-10L	4.7 ±15%	11.8	12.0	0.62 / 15.7	1.1 / 27.9	0.42 / 10.7	0.054 / 1.37	8.5
PCV-1-103-03L	10 ±10%	6.0	26.0	0.63 / 16.0	0.85 / 21.6	0.42 / 10.7	0.035 / 0.89	4.4
PCV-1-103-05L	10 ±10%	7.1	20.0	0.62 / 15.7	0.85 / 21.6	0.42 / 10.7	0.042 / 1.07	7.5
PCV-1-103-10L	10 ±10%	10.9	13.0	0.63 / 16.0	1.1 / 27.9	0.42 / 10.7	0.054 / 1.37	5.2
PCV-1-153-10L	15 ±10%	11.8	20.0	0.7 / 17.8	1.4 / 35.6	0.42 / 10.7	0.060 / 1.52	18.4
PCV-1-223-03L	22 ±10%	5.5	35.0	0.62 / 15.7	1.1 / 27.9	0.42 / 10.7	0.035 / 0.89	7.4
PCV-1-223-05L	22 ±10%	6.9	23.0	0.62 / 15.7	1.1 / 27.9	0.42 / 10.7	0.042 / 1.07	10.2
PCV-1-223-10L	22 ±10%	10.4	18.0	0.7 / 17.8	1.4 / 35.6	0.42 / 10.7	0.060 / 1.52	21.8
PCV-1-473-03L	47 ±10%	5.3	50.0	0.65 / 16.5	1.1 / 27.9	0.42 / 10.7	0.035 / 0.89	9.6
PCV-1-473-05L	47 ±10%	6.3	33.0	0.9 / 22.9	1.2 / 30.5	0.7 / 17.8	0.042 / 1.07	14.9
PCV-1-473-10L	47 ±10%	8.2	22.0	0.9 / 22.9	1.4 / 35.6	0.7 / 17.8	0.060 / 1.52	32.9
PCV-1-104-03L	100 ±10%	3.4	72.0	0.9 / 22.9	1.3 / 33.1	0.7 / 17.8	0.035 / 0.89	13.3
PCV-1-104-05L	100 ±10%	4.9	55.0	0.9 / 22.9	1.4 / 35.6	0.7 / 17.8	0.042 / 1.07	22.9
PCV-1-184-03L	180 ±10%	2.8	150	0.63 / 16.0	1.2 / 30.5	0.42 / 10.7	0.028 / 0.71	10.7
PCV-1-304-05L	300 ±10%	3.4	160	1.1 / 27.9	1.0 / 25.4	0.7 / 17.8	0.038 / 0.97	41.1
PCV-1-394-05L	390 ±10%	3.0	190	1.1 / 27.9	1.0 / 25.4	0.7 / 17.8	0.038 / 0.97	47.3

메모

Tested at 15.75 kHz, 0.1 Vrms, with DC bias applied up to the Irms current.
Current that causes a 40°C temperature rise from 25°C ambient.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.

종단 처리:

Tin-silver over copper

환경

환경:

RoHS 준수

주변 온도 범위:

−40°C to +85°C with Irms current

보관 온도 범위:

Component: –40°C to +125°C
Tray packaging: –40°C to +80°C

최고 부품 온도:

+125°C (Ambient + temperature rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

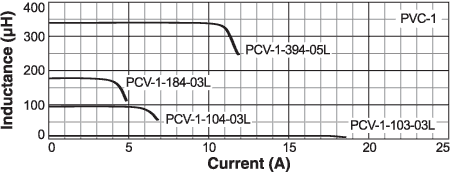

Inductance vs Current

물리적 특성

패키지

Part number	Parts per tray	Maximum parts per carton
PCV-1-103-03L	49	245
PCV-1-103-05L	49	245
PCV-1-103-10L	49	196
PCV-1-104-03L	49	245
PCV-1-104-05L	100	200
PCV-1-152-15L	49	245
PCV-1-153-10L	49	147
PCV-1-182-10L	49	196
PCV-1-182-15L	49	196
PCV-1-184-03L	49	196
PCV-1-223-03L	49	196

Part number	Parts per tray	Maximum parts per carton
PCV-1-223-05L	49	196
PCV-1-223-10L	49	147
PCV-1-304-05L	49	245
PCV-1-394-05L	49	245
PCV-1-472-03L	49	245
PCV-1-472-05L	49	245
PCV-1-472-10L	49	196
PCV-1-473-03L	49	196
PCV-1-473-05L	49	245
PCV-1-473-10L	49	245

일반 사양

중량:

4.4 g - 47.3 g
