XGL3530 Series

Ultra-Low Loss Shielded Power Inductors

Introducing the XGL3530 Series Ultra-Low Loss Shielded Power Inductors - the ultimate solution for power efficiency and reliability. These molded power inductors redefine performance standards with their lowest DC losses and shallow AC losses, making them ideal for a wide range of DC-DC converters.

Engineered to meet the highest quality standards, the XGL3530 Series is AEC certified, guaranteeing reliable operation in automotive applications spanning a wide temperature range (-40°C to +125°C).

Offering a wide inductance value of up to 6.8 µH, these power inductors provide versatility to suit various design requirements. They are RoHS-compliant, halogen-free, and 260°C compatible, ensuring compatibility with industry regulations and high-temperature environments.

The XGL3530 Series has tin-silver (96.5/3.5) over copper terminations, offering excellent solderability and durability. COTS Plus tin-silver-copper and tin-lead terminations are also available for specific application needs.

Industry's lowest DCR and ultra low AC losses over a wide frequency range
Superior current handling with soft saturation characteristics
AEC-Q200 Grade 1 (−40°C to +125°C)
Wide inductance range up to 6.8 µH
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
COTS Plus tin-silver-copper and tin-lead terminations available

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.99
100	$1.76
250	$1.32
500	$0.79
1000	$0.62
2500	$0.53
5000	$0.49

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

Tolerance

M = 20%

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

설계자용 키트:

키트	값	가격
C489	15 (3 of each)	$55.00
C509	49 (3 of each)	$125.00

사양

Electrical specifications at 25°C. Operating voltage 0 — 80 V

부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL3530-101MEC	0.10	2.1	2.5	320	7.6	12.3	16.5	20.0	27.5
XGL3530-201MEC	0.20	3.0	3.5	220	5.6	8.8	11.8	16.6	22.4
XGL3530-331MEC	0.33	4.0	4.6	160	4.5	6.8	9.1	13.4	18.5
XGL3530-451MEC	0.45	4.9	5.6	140	3.8	5.9	7.8	11.9	15.9
XGL3530-601MEC	0.60	6.0	6.9	110	3.6	5.6	7.4	10.8	14.7
XGL3530-701MEC	0.70	6.9	8.0	100	3.5	5.5	7.3	9.5	12.9
XGL3530-821MEC	0.82	8.0	9.2	95.0	3.3	5.0	6.7	9.2	12.5
XGL3530-102MEC	1.0	9.1	10.5	82.0	3.0	4.7	6.2	8.6	11.7
XGL3530-122MEC	1.2	11.1	12.8	73.0	2.7	4.2	5.6	7.8	10.4
XGL3530-152MEC	1.5	13.3	15.3	66.0	2.6	3.9	5.2	6.5	8.8
XGL3530-222MEC	2.2	20.0	23.0	52.0	1.9	3.0	4.0	5.2	7.2
XGL3530-332MEC	3.3	32.5	37.4	43.0	1.6	2.5	3.3	4.0	5.4
XGL3530-472MEC	4.7	44.5	51.2	33.0	1.3	2.0	2.7	3.3	4.5
XGL3530-562MEC	5.6	54.0	62.1	30.0	1.2	1.8	2.4	3.0	4.1
XGL3530-682MEC	6.8	68.0	78.2	28.0	1.1	1.6	2.1	2.7	3.7

메모

When ordering, please specify termination and packaging codes: e.g. XGL3530-682MEC

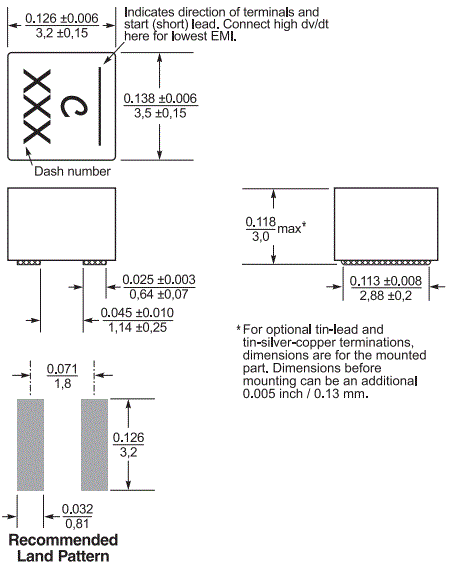

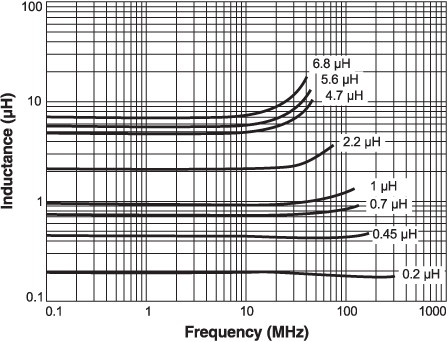

Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.

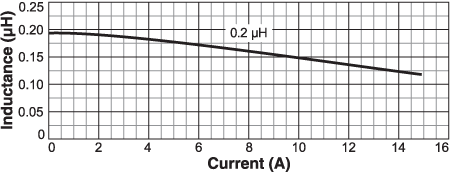

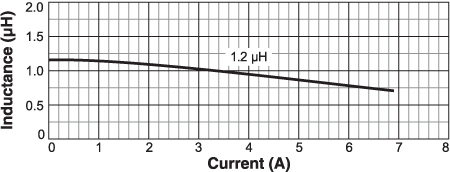

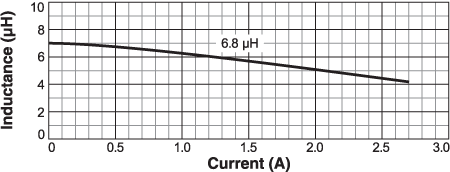

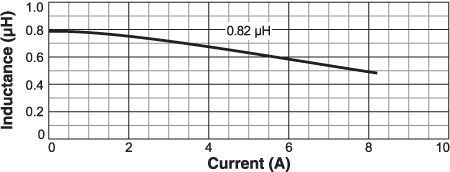

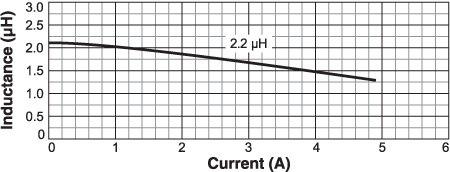

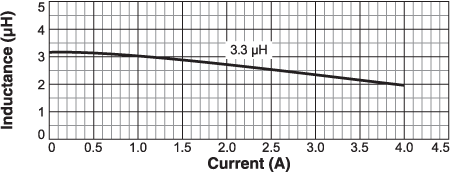

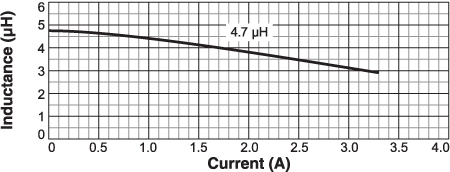

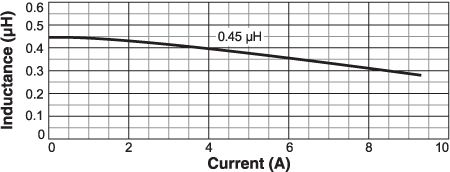

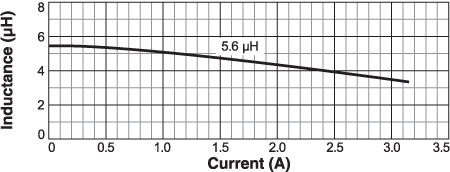

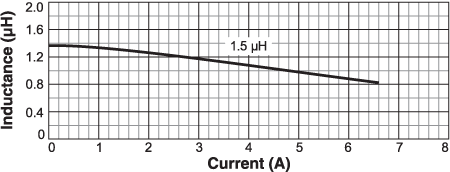

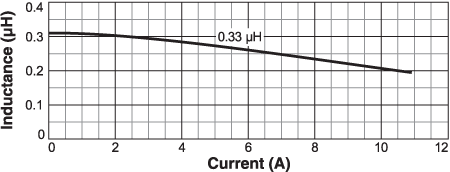

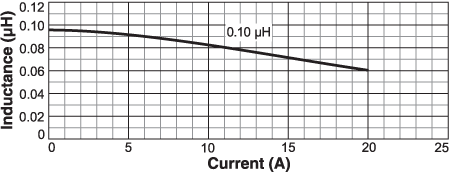

Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

종단 처리:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (2500 per full reel). Factory order only, not stocked.

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C with (40°C rise) Irms current

보관 온도 범위:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

최고 부품 온도:

+165°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations
