XEL3530 Series

Ultra-Low Loss Shielded Power Inductors

Great News! More choices!
See XGL3530 for significantly lower DCR (up to 38% lower) and higher L values (up to 6.8 uH)

XEL3530 high-performance molded power inductors feature very low AC losses at high frequencies and very low DCR. These rugged inductors are magnetically shielded for high-density power applications and exhibit soft saturation to withstand high peak current.

Low inductance values for high-frequency applications
Very low AC losses at high frequency and very low DCR
Soft saturation to withstand high current spikes
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal aging – perfect for high-temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.99
100	$1.76
250	$1.32
500	$0.79
1000	$0.62
2500	$0.53
5000	$0.49

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

설계자용 키트:

키트	값	가격
C465	21 (3 of each)	$65.00

사양

Electrical specifications at 25°C. Operating voltage 0 – 80 V

부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XEL3530-231ME_	0.23	4.2	4.9	211	5.2	7.8	10.6	12.6	17.2
XEL3530-301ME_	0.30	5.2	6.0	173	4.5	7.0	9.2	11.3	15.3
XEL3530-401ME_	0.40	6.1	7.1	149	4.0	6.2	8.3	9.1	12.7
XEL3530-501ME_	0.50	7.2	8.4	129	3.7	5.8	7.9	8.5	11.4
XEL3530-681ME_	0.68	10.3	11.9	110	2.9	4.4	6.2	7.0	9.2
XEL3530-901ME_	0.90	12.7	14.6	95.0	2.8	4.2	5.9	5.9	8.4
XEL3530-122ME_	1.2	17.8	20.5	79.0	2.5	3.8	5.2	4.2	6.0

메모

When ordering, please specify termination and packaging codes: e.g. XEL3530-122MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes a 30% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

종단 처리:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2500 parts per full reel).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C with (40°C rise) Irms

보관 온도 범위:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

최고 부품 온도:

+165°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

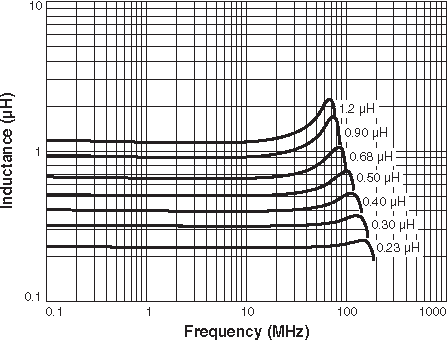

Inductance vs. Frequency

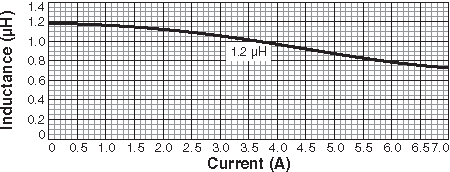

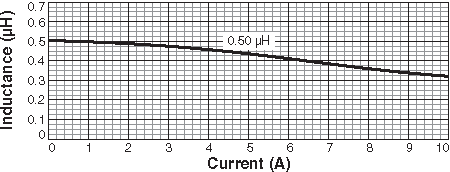

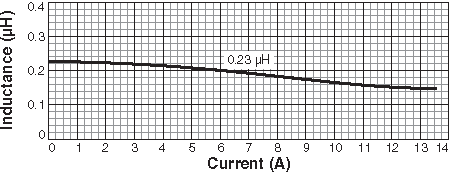

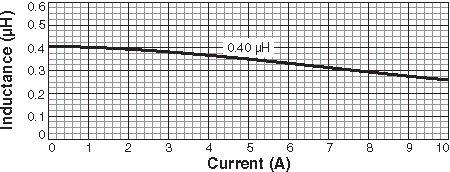

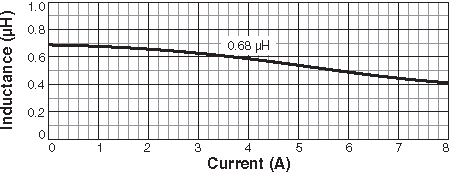

Inductance vs Current

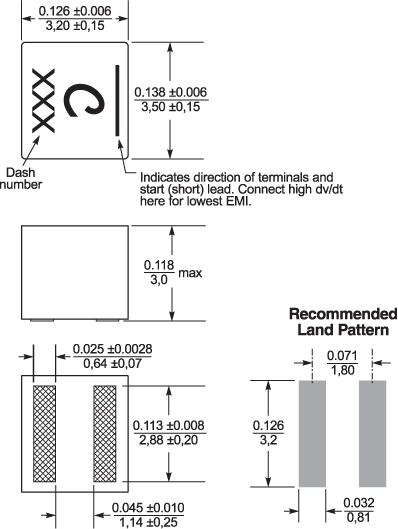

물리적 특성

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,1	0,23

* Special order

일반 사양

코어 소재:

Composite

중량:

0.15 – 0.17 g

패키지:

500/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
