MA5172/3-AE, PA6331-AE Series

Power Filter Inductors

Coilcraft MA5172/3-AE, PA6331-AE toroidal power chokes were designed for Class-D applications.

Low distortion chokes used in Texas Instrument’s TPA3251D2 PurePath Ultra-HD, TAS5612/14PHD2EVM, TAS5612PHD and TAS5614PHD evaluation modules
Designed for use in Class-D amplifiers.

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$5.81
250	$4.73
500	$3.23
1000	$2.73

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

E = Tin-silver

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호	인덕턴스 (µH) 1 (허용 오차: ±%)	DCR max (mΩ) 2	SRF typ (MHz)	Isat (mA) 3	Irms (A) 4
부품 번호	인덕턴스 (µH) 1 (허용 오차: ±%)	DCR max (mΩ) 2	SRF typ (MHz)	Isat (mA) 3	20°C rise	40°C rise
MA5173-AE	7.0	21.5	32.8	54000	6.5	9.0
MA5172-AE	10	26.0	25.5	45000	6.1	8.2
PA6331-AE	15	31.0	12.4	20000	9.8	14.2

메모

Inductance tested at 10 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4132 impedance analyzer or equivalent
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

RoHS compliant tin-silver (96.5/3.5) over copper.

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C with (40°C rise) Irms current

보관 온도 범위:

Component: –40°C to +165°C.
Tray packaging: –40°C to +80°C

최고 부품 온도:

+165°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

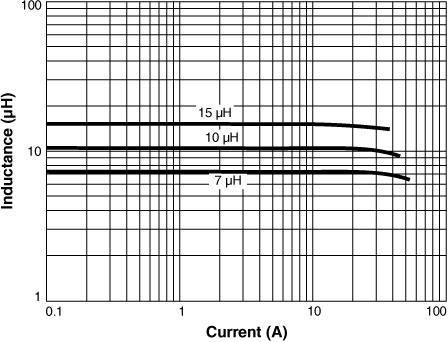

Inductance vs Current

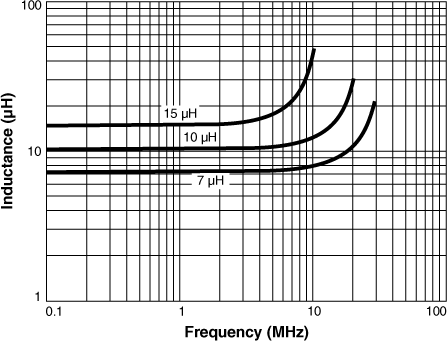

Inductance vs Frequency

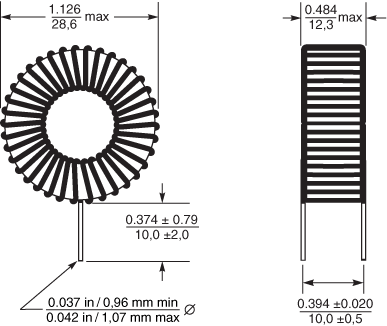

물리적 특성

일반 사양

코어 소재:

Powdered Iron

중량:

MA5172 - 18.7 g; MA5173 - 17.6 g; PA6331 - 21.2 g

패키지:

25 per tray

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
