SLC1049 Series

High Current Power Inductors

Coilcraft’s SLC1049 Series of high-current shielded power inductors feature sub-milliohm DC resistance and very high current handling. Magnetic shielding and tight DCR tolerances make them ideal for low voltage multi-phase VRM/VRD/EVRD regulators and current sensing circuits.

Sub-milliohm DC resistance and tight DCR tolerance
Ferrite construction for flat L vs I with high current
Magnetic shielding allows high-density packaging
Ideal for multi-phase VRM/VRD/EVRD regulators

Need parts for space, military or other critical applications?
See Coilcraft AE534PMM Series | See Coilcraft ML534PMM Series | See Coilcraft MS534PMM Series | See Coilcraft ST534PMM Series

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.34
250	$1.20
500	$1.01
1000	$0.85
2500	$0.74
5000	$0.64

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

M = 20%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR ± 7% (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR ± 7% (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6	40°C rise
SLC1049-750ML_	0.075	0.230	200	61.0	66.0
SLC1049-101ML_	0.10	0.230	145	50.0	66.0
SLC1049-121ML_	0.13	0.230	140	37.0	66.0
SLC1049-151ML_	0.15	0.230	133	30.0	66.0
SLC1049-231ML_	0.23	0.230	70.0	25.5	66.0

메모

When ordering, please specify termination and packaging codes: e.g. SLC1049-151MLC
Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter at the points indicated in this diagram.
SRF measured with coils connected in series using an Agilent/HP 8753ES network analyzer or equivalent.
Isat: DC current at 25°C that causes a 20% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

L = RoHS compliant matte tin over nickel over copper.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1000 per full reel). Factory order only, not stocked.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C with (40°C rise) Irms

보관 온도 범위:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+125°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

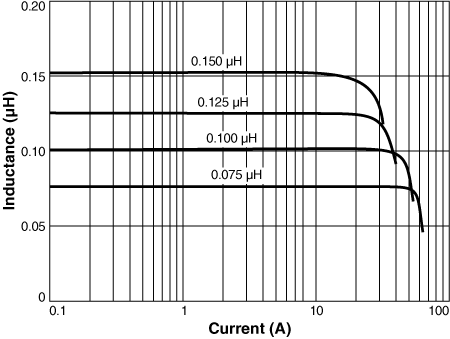

Inductance vs Current

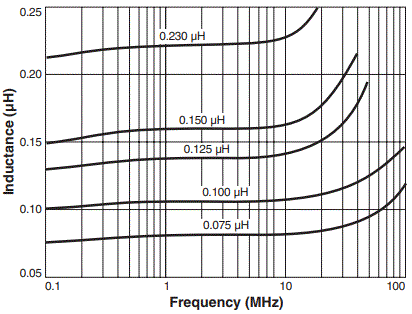

Inductance vs Frequency

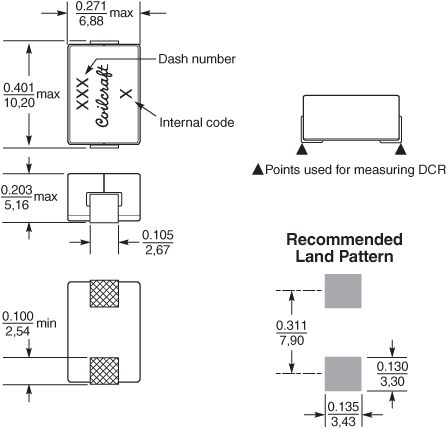

물리적 특성

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	30,4	24,4	24	12	4	2	5,0	0,35

* Special order
‡ Part marking does not indicate polarity

일반 사양

코어 소재:

Ferrite

중량:

1.25 – 1.30 g

패키지:

250/7″ reel; 1000/13″ reel Plastic tape: 24 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.08 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
