HA3588-BL

High Current Power Inductor

RoHS 준수

HA3588-BL Series power inductor, along with VER2923, is designed for high-efficiency power supplies requiring high current and high inductance.

  • Flat wire windings provide extremely low DC and AC resistance.
  • Low loss ferrite cores provide flat L vs I
  • Magnetic shielding to minimize EMI
  • Vertical (TH) mounting for rugged board attachment
  • Designed for high current power supplies

지금 구매:
개수 단품 가격
1 $5.40
200 $4.63
400 $4.02
1200 $3.50
2400 $3.00
5000 $2.75

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 인덕턴스 (µH) 1
(허용 오차: ±20%)
DCR max (mΩ) 2 SRF typ (MHz) 3 Isat (A) 4 Irms (A) 5
10% drop 20% drop 30% drop 20°C rise 40°C rise
HA3588-BL 10 2.6 17.0 30.0 34.0 37.0 19 26
메모
  1. Inductance tested at 300 kHz, 0.1 Vrms, using an Agilent/HP 4192A or equivalent.
  2. DCR measured at 25°C on a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
  3. SRF measured using an Agilent/HP 8753ES network analyzer or equivalent.
  4. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.

  5. Irms: Current that causes the specified temperature rise from 25°C ambient. Temperature rise of the core is usually less than that of the winding. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

  • RoHS compliant tin-silver over copper. Other terminations available at additional cost.
환경
환경:
RoHS 준수
주변 온도 범위:
−40°C to +85°C with Irms current
보관 온도 범위:
Component:−40°C to +125°C
Packaging trays:−40°C to +80°C
최고 부품 온도:
+125°C (Ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

Inductance vs Current

Inductance vs Frequency

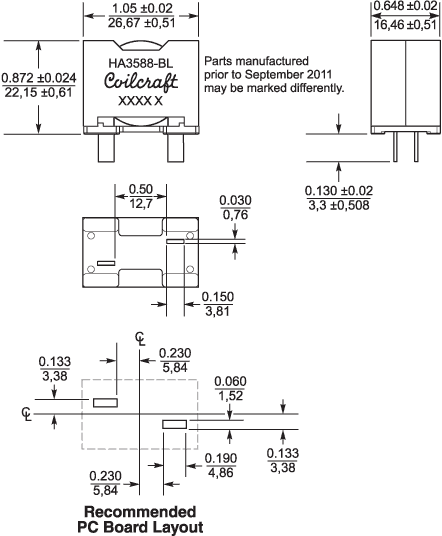

물리적 특성




Caution: This series is not intended for use in high vibration or mechanical shock environments. We advise using additional means of securing the part to the circuit board to ensure its adhesion.

일반 사양

코어 소재:
Ferrite
중량:
37 g
패키지:
25 per tray

세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
