3D Model Datasheet

JA4456-DL Flyback Transformers

for Texas Instruments TPS2375x

Developed for TI TPS2375x PoE Interface and DC/DC Converters

今すぐ購入:

個数	単価
1	$5.22
175	$4.86
700	$4.23
1400	$3.30
2800	$2.84
5000	$2.58

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Packaging

D = 13" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

一般的な用途

Texas Instruments TPS23752に対応

入力電圧	出力 1		電力	Fsw
入力電圧	Sec	Bias	電力	Fsw
36 V — 57 V	5 V , 5 A	12 V , 0.02 A	25 W	250 kHz

仕様

Electrical specifications at 25°C.

部品番号 2 (Hover for schematics)	インダクタンス＠0A (µH) 3 (公差: ±10%)	DCR max (Ω) 5			漏れインダクタンス最大 (µH) 6	巻数比 7	キャパシタンス max (pF)	絶縁電圧 (Vrms) 8
部品番号 2 (Hover for schematics)	インダクタンス＠0A (µH) 3 (公差: ±10%)	Pri	Sec	Bias	漏れインダクタンス最大 (µH) 6	Pri : Sec : Bias	キャパシタンス max (pF)	絶縁電圧 (Vrms) 8
JA4456-DL_	70	0.070	0.0043	0.31	0.615	1 : 0.182 : 0.409	158	1500

メモ

Output of the secondary is with all windings connected in parallel. Bias winding output is 12 V, 20 mA.
When ordering, please specify termination and packaging codes: JA4456-DLD.
Inductance is for the primary, measured at 250 kHz, 0.5 Vrms.
Peak primary current drawn at minimum input voltage.
DCR for the primary and secondary are with the windings connected in parallel.
Leakage inductance is for the primary windings with all the secondary windings shorted.
Turns ratios are with the primary windings and secondary windings connected in parallel.
1500 Vrms, one minute isolation (hipot) primary and bias to secondary; 500 Vrms isolation primary to bias; 750 Vrms isolation all pins to the core.

終端処理:

RoHS-compliant 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

パッケージ:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

環境

環境:

RoHS準拠

周囲温度範囲:

–40°C to +125°C

保管温度範囲:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

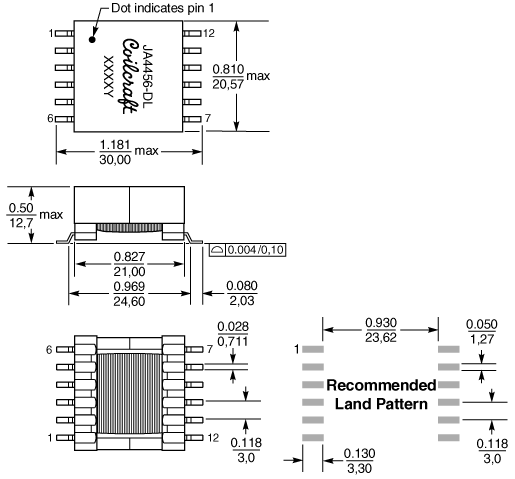

回路図

Primary windings and secondary windings
to be connected in parallel on PC board.

物理的特徴

テープ＆リール仕様

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,5

一般仕様

コア材料:

Ferrite

重量:

11.7 g

パッケージ:

175 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12.0 mm pocket depth PCB washing Tested to MIL-STD-202 Method

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
