WA8514-AE

Wideband RF Choke

Developed for Mini-Circuits PHA-202+ Monolithic Amplifier
Optimized for use between 30 – 3000 MHz
Very low profile – only 1 mm tall
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
COTS Plus tin-silver-copper and tin-lead terminations available

今すぐ購入:

個数	単価
1	$1.04
200	$0.90
500	$0.78
1000	$0.61
2000	$0.52
4000	$0.48

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Packaging

C = 7" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

仕様

Electrical specifications at 25°C.

部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	SRF typ (MHz)	Isat (A)	DCR (Ω) 3		Irms (A) 4
部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	SRF typ (MHz)	Isat (A)	typ	max	20°C rise	40°C rise
WA8514-AE_	5.6	250	0.73	0.40	0.46	0.60	0.80

メモ

When ordering, please specify termination and packaging codes: e.g. WA8514-AEC
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperature use this DCR at Temperature calculator.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

終端処理:

Silver-palladium-platinum-glass frit.

パッケージ:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +125°C with (20°C rise) Irms current

保管温度範囲:

Component: –40°C to +145°C
Tape and reel packaging: –40°C to +80°C

最大部品温度:

+145°C (ambient + temp rise)

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

Inductance vs Current

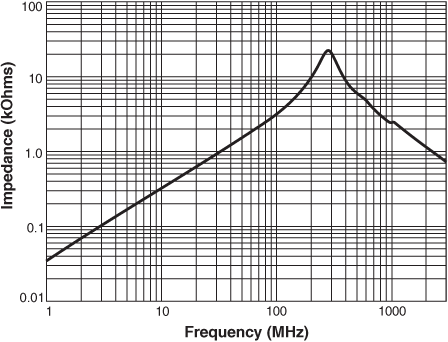

Impedance vs Frequency

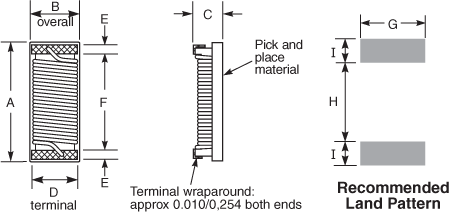

物理的特徴

A max	B max	C max	D ref	E	F	G	H	I
0.171	0.078	0.04	0.065	0.013	0.134	0.095	0.124	0.033	inches
4,34	1,98	1,02	1,65	0,33	3,40	2,413	3,15	0,838	mm

テープ＆リール仕様

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	60	13	18,4	12,4	12	4	4	2	1,09	0,21

一般仕様

コア材料:

Composite

重量:

17.7 mg

パッケージ:

2000 per 7″ reel; Plastic tape: 12 mm wide, 0.21 mm thick, 4 mm pocket spacing, 1.09 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
