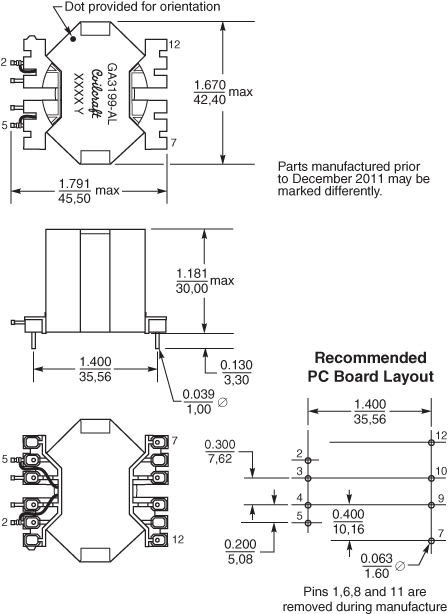

物理的特徴
はんだ付け/洗浄

Close up of GA3199

Datasheet DCDC Tool

GA3199-AL Power Inductor

for ON Semiconductor NCP1654

RoHS準拠

• Designed for ON Semiconductor for their 300 Watt, wide mains, PFC stage, driven by the NCP1654 PFC Controller
• Shown as L1 on Application Note AND8324/D
• High inductance: 650 μH; high saturating current: 6.3 A

今すぐ購入:

個数	単価
1	$13.72
250	$11.13
500	$8.51
1000	$6.62
2500	$5.67
5000	$5.21

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

. 在庫あり、即日出荷可能.

サンプルを依頼:

仕様

Electrical specifications at 25°C.

部品番号	インダクタンス (µH) 1 (公差: ±10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A)
部品番号	インダクタンス (µH) 1 (公差: ±10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20°C rise	40°C rise
GA3199-AL	650	165	770	5.8	6.1	6.3	2.9	3.8

メモ

Inductance measured at 10 kHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured on an Agilent/ HP 4192A impedance analyzer or equivalent
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.

パッケージ:

20 per tray

環境

環境:

RoHS準拠

周囲温度範囲:

–40°C to +85°C with (40°C rise) Irms current

保管温度範囲:

Component: –40°C to +125°C
Tray packaging: –40°C to +80°C

最大部品温度:

+95°C (ambient + temp rise)

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

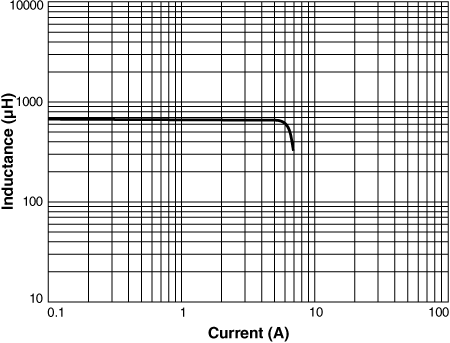

Inductance vs Current

Inductance vs Current

物理的特徴

一般仕様

コア材料:

Ferrite

重量:

94 g

パッケージ:

20 per tray

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
