XFL6060-473 Series

Power Inductor for STMicroelectronics LED5000

XFL6060 power inductors have the lowest profiles of our molded power inductors. They provide high current handling with low DCR and low AC losses.

Designed for STMicroelectronics LED5000 3 A monolithic step-down current source
High current handling with low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C maximum part temperature

今すぐ購入:

個数	単価
1	$3.16
100	$2.77
250	$2.07
500	$1.24
1000	$0.97
2500	$0.84
5000	$0.77

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

仕様

Electrical specifications at 25°C. Operating voltage 0 - 20 V

部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XFL6060-473ME_	47	68.4	75.3	7.8	1.4	1.6	1.8	2.8	3.7

メモ

When ordering, please specify packaging code: e.g. XFL6060-473MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

終端処理:

RoHS compliant tin-silver over copper.

パッケージ:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (750 parts per full reel).

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +125°C with (40°C rise) Irms

保管温度範囲:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

最大部品温度:

+165°C (ambient + temp rise)

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

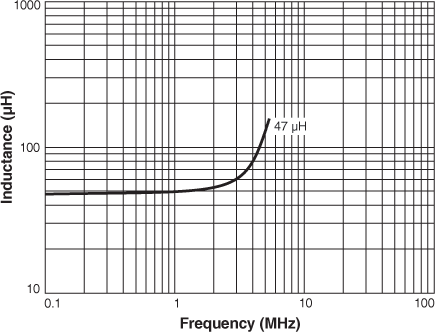

Inductance vs. Frequency

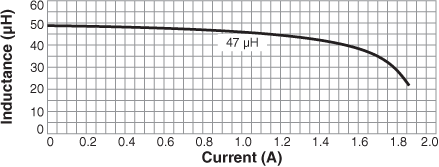

Inductance vs. Current

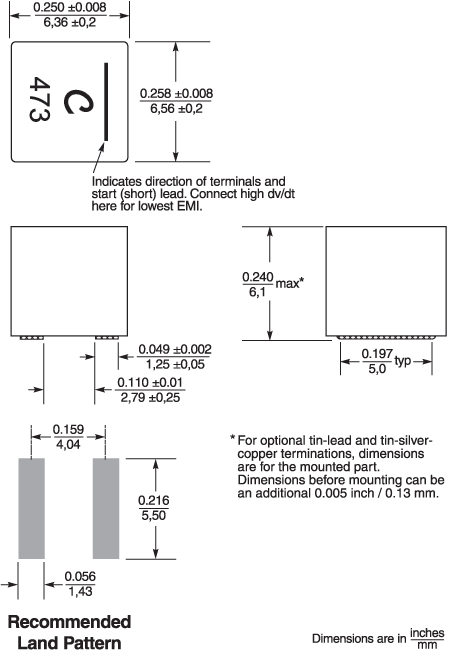

物理的特徴

テープ＆リール仕様

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	750*	178/330	60/100	13	22,4	16,4	16	12	4	2	6,23	0,4

* Special order

一般仕様

コア材料:

Composite

重量:

1.3 g

パッケージ:

250/7″ reel; 750/13″ reel Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 6.23 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
