MSS1210 Series

Shielded Power Inductors

Coilcraft MSS1210 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)

今すぐ購入:

部品番号

部品を検索

The part number you have selected is not available through our online store.

Please click the "Request Quote" button for pricing and more information.

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

D = 13" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

部品番号

部品を検索

仕様

Electrical specifications at 25°C.

部品番号 1	インダクタンス (µH) 2	公差 (%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
部品番号 1	インダクタンス (µH) 2	公差 (%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS1210-103ME_	10	20	0.014	0.016	15.0	9.6	11.5	12.5	4.7	6.5
MSS1210-153ME_	15	20	0.019	0.022	12.0	8.3	9.9	10.7	4.2	5.7
MSS1210-223ME_	22	20	0.026	0.030	9.5	6.8	8.1	8.8	3.2	4.4
MSS1210-333ME_	33	20	0.033	0.039	7.5	5.4	6.4	6.9	2.9	3.8
MSS1210-473ME_	47	20	0.048	0.056	6.0	4.5	5.4	5.8	2.2	3.0
MSS1210-683ME_	68	20	0.068	0.080	4.5	3.8	4.5	4.9	2.1	2.8
MSS1210-104KE_	100	10	0.11	0.13	3.6	3.1	3.7	4.0	1.8	2.4
MSS1210-124KE_	120	10	0.12	0.14	3.3	2.9	3.4	3.7	1.7	2.3
MSS1210-154KE_	150	10	0.16	0.19	2.9	2.6	3.1	3.4	1.3	1.8
MSS1210-184KE_	180	10	0.17	0.20	2.8	2.3	2.8	3.0	1.2	1.7
MSS1210-224KE_	220	10	0.19	0.23	2.7	2.1	2.5	2.8	1.1	1.5
MSS1210-334KE_	330	10	0.29	0.34	1.8	1.7	2.1	2.2	0.85	1.2
MSS1210-474KE_	470	10	0.43	0.51	1.6	1.4	1.7	1.8	0.70	0.98
MSS1210-684KE_	680	10	0.54	0.63	1.4	1.2	1.4	1.6	0.69	0.91
MSS1210-105KE_	1000	10	0.82	0.96	1.1	0.98	1.2	1.3	0.60	0.83
MSS1210-125KE_	1200	10	1.1	1.3	1.0	0.91	1.1	1.2	0.49	0.67
MSS1210-155KE_	1500	10	1.2	1.5	0.85	0.81	0.96	1.0	0.46	0.65
MSS1210-185KE_	1800	10	1.4	1.6	0.85	0.73	0.87	0.95	0.45	0.63
MSS1210-225KE_	2200	10	1.8	2.1	0.70	0.66	0.79	0.86	0.38	0.52
MSS1210-275KE_	2700	10	2.0	2.4	0.65	0.59	0.71	0.77	0.36	0.50
MSS1210-335KE_	3300	10	2.7	3.2	0.56	0.54	0.64	0.70	0.31	0.43
MSS1210-395KE_	3900	10	3.0	3.5	0.54	0.50	0.60	0.64	0.30	0.41
MSS1210-475KE_	4700	10	3.3	3.9	0.51	0.45	0.54	0.58	0.28	0.39
MSS1210-565KE_	5600	10	3.7	4.4	0.45	0.41	0.49	0.54	0.27	0.38
MSS1210-685KE_	6800	10	5.0	5.9	0.40	0.38	0.45	0.49	0.22	0.31
MSS1210-825KE_	8200	10	5.5	6.5	0.38	0.35	0.41	0.45	0.21	0.28
MSS1210-106KE_	10000	10	7.4	8.7	0.31	0.31	0.37	0.40	0.18	0.24

メモ

When ordering, please specify termination and packaging codes: e.g. MSS1210-106KED
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP Agilent/HP 4191A network analyzer or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

終端処理:

E = Halogen free component. RoHS compliant matte tin over nickel over phos bronze.
Q = RoHS tin-silver-copper (95.5/4/0.5) over tin over nickel over phos bronze. (Special order, added cost)
P = non-RoHS tin-lead (63/37) over tin over nickel over phos bronze. (Special order, added cost)

パッケージ:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +85°C with (40°C rise) Irms current

保管温度範囲:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最大部品温度:

+125°C (ambient + temp rise).

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

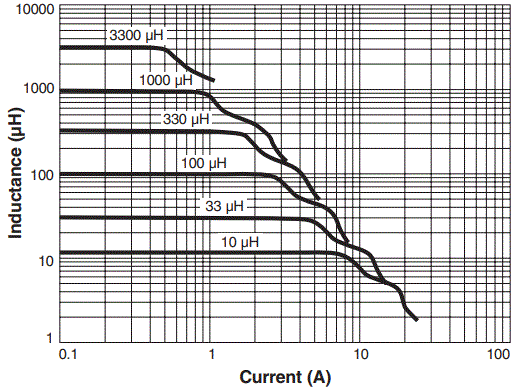

Inductance vs. Current

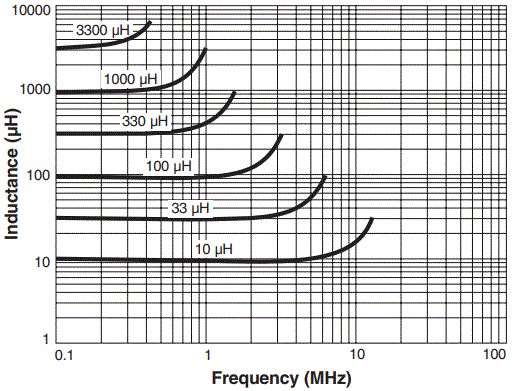

Inductance vs. Frequency

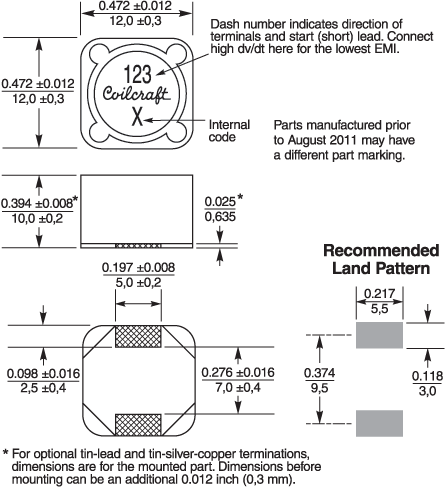

物理的特徴

テープ＆リール仕様

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
300	330	100	13	30,4	24,4	24	20	4	2	10,3	0,5

‡ Part marking does not indicate polarity.

一般仕様

コア材料:

Ferrite

重量:

5.1 - 6.2 g

パッケージ:

300/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 20 mm pocket spacing, 10.3 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
