Datasheet GA3568-DL

GA3568, HA3809 Flyback Transformers

for Akros AS1135 PoE Controller

Referenced on Akros Silicon Application Note AN025
Designed for 30 Watt applications
For 13 Watt applications see HA3585-BL / HA3586-BL

Buy Now:

Part number

Find my part

Count	Unit price
1	$5.20
100	$4.72
250	$3.93
500	$3.32
1000	$2.86
2500	$2.46
5000	$2.26

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Typical Application

Works with Akros Silicon AS1135

Part number	Input Voltage	Output 1		Power	Fsw
Part number	Input Voltage	Sec	Sync	Power	Fsw
HA3809-AL_	10 V — 57 V	3.3 V , 9.1 A	5 V , 0.02 A	30 W	300 kHz
GA3568-DL_	36 V — 57 V	3.3 V , 9.1 A	5 V , 0.02 A	30 W	300 kHz

Specifications

Electrical specifications at 25°C.

Part number 2 (Hover for schematics)	Inductance at 0A (µH) 3 (Tolerance: ±10%)	Inductance min (µH)	DCR max (Ω) 4				Leakage Inductance max (µH) 5	Turns Ratio 6	Isolation Voltage (Vrms) 7
Part number 2 (Hover for schematics)	Inductance at 0A (µH) 3 (Tolerance: ±10%)	Inductance min (µH)	Pri	Sec	Bias	Sync	Leakage Inductance max (µH) 5	Pri : Sec : Bias : Sync	Isolation Voltage (Vrms) 7
HA3809-AL_	30	25 @ 3.9 A	0.042	0.010	0.165	0.165	0.68	1 : 0.176 : 0.29 : 0.29	1500
GA3568-DL_	60	54 @ 2.6 A	0.132	0.006	0.200	0.220	1.2	1 : 0.167 : 0.29 : 0.29	1500

Notes

Output of the secondary is with the windings connected in parallel. Bias winding output is 5 V, 20 mA.
When ordering, please specify termination and packaging codes: HA3809-ALD
. Inductance is for the primary, measured at 300 kHz, 0.7 Vrms. For the GA3568-DL inductance is per winding.
DCR for the secondary is with the windings connected in parallel. For GA3568-DL DCR for the primary is with both windings connected in parallel.
Leakage inductance is for the primary windings with the secondary windings shorted
Turns ratios are for the primary (windings connected in parallel for the GA3568-DL) and with the secondary windings connected in parallel.
1500 Vrms, one minute isolation from primary and bias to secondary

Termination:

L = RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order)
S = non-RoHS tin-lead (63/37). (Special order)

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +125°C

Storage temperature range:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

Primary windings and secondary windings each to be connected in parallel on the PC board.

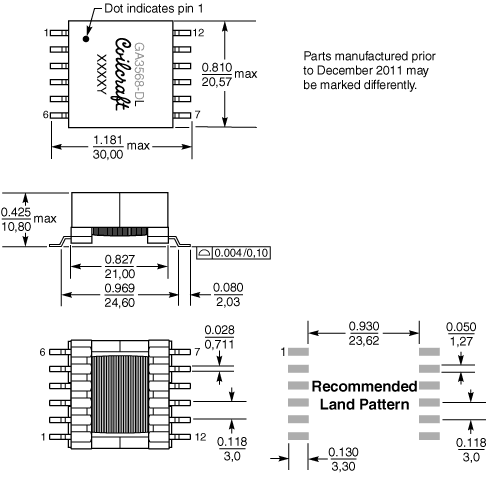

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,4

General specification

Core Material:

Ferrite

Weight:

11.4 – 11.8 g

Packaging:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
