No-Opto Flyback Transformer

for MAXIM MAX17690

The ZB1313 flyback transformer is designed to work with the MAX17690 60 V, no-opto isolated flyback controller from Maxim. It has no auxiliary winding and offers the greatest efficiency, lowest cost, and smallest size for synchronous isolated DC-DC power converters. The ZB1313 operates with an 18 – 38 V input voltage range and generates an output at 24 V / 0.7 A, with a peak efficiency of up to 90.6% at full load. The part has a maximum height of just 7.4 mm, significantly lower than other parts recommended for the same chipset.

Designed for use with Maxim 60 V No-opto isolated flyback controller MAX17690
High efficiency, 90.6% in MAXIM reference design circuit
Operates at 163 kHz with 18 – 38 V input
1500 Vrms, one minute isolation (hipot) between primary and secondary

Buy Now:

Count	Unit price
1	$6.62
100	$5.41
200	$4.05
400	$2.43
1200	$1.89
2400	$1.63
5200	$1.49

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Typical Application

Works with Maxim MAX17690

Input Voltage	Output	Power	Fsw
18 V — 38 V	24 V , 0.7 A	16.8 W	163 kHz

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 5 A (µH) 2	DCR max (Ω)		Leakage Inductance max (µH) 3	Turns Ratio 4	Current (A)	Isolation Voltage (Vrms) 5
Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 5 A (µH) 2	Pri	Sec	Leakage Inductance max (µH) 3	Pri : Sec	Current (A)	Isolation Voltage (Vrms) 5
ZB1313-CLD	10.5	9.45	0.0611	0.0647	0.18	1 : 1.27	5.0	1500

Notes

Inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 0 Adc.
Minimum inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 5 Adc.
Leakage inductance is for the primary winding with the secondary windings shorted.
Turns ratios are with the primary and secondary windings connected in parallel.
1500 Vrms, one minute isolation (hipot) between primary and secondary.

Termination:

RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel).

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

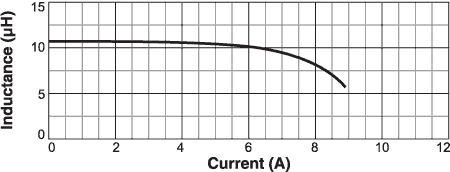

L vs Current

Schematics

Connect pin 1 to 2, pin 5 to 6, pin 7 to 8 to 9,
and pin 10 to 11 to 12 on PC board.

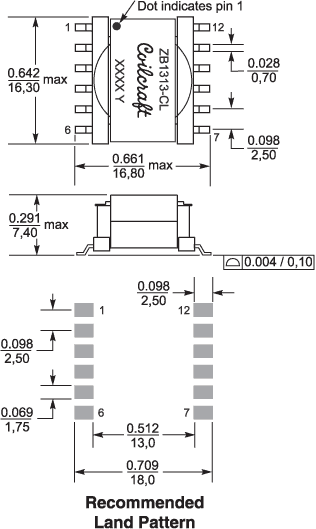

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	330	100	13	38,4	32,4	32	20	4	2	7,6	0,4

General specification

Core Material:

Ferrite

Weight:

2.7 – 3.0 g

Packaging:

400 per 13″ reel Plastic tape: 32 mm wide, 0.4 mm thick, 20 mm pocket spacing, 7.6 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
