3D Model Datasheet

No-Opto Flyback Transformers

YA9033, YA9034, YA9035, YA9036, YA9037

Optimized for LM25180 and LM5180 flyback converters from Texas Instruments
Five output versions for various single-output designs with 4 – 65 V input
Eliminates auxiliary winding for simple and reliable converter designs
1500 Vrms, one minute isolation (hipot) between primary and secondary

Buy Now:

Part number

Find my part

Count	Unit price
1	$3.03
300	$2.59
600	$2.25
1200	$1.98
3000	$1.69
6000	$1.55

For high volume or non-stock items, request a quote.

Termination

L = RoHS tin-silver-copper over tin over nickel over phos bronze

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Typical Application

Works with Texas Instruments LM25180 and LM5180

Part number	Input Voltage	Output	Power	Fsw
YA9033-ALD	4 V — 65 V	8 V , 0.75 A	6 W	300 kHz
YA9034-ALD	4 V — 65 V	12 V , 0.5 A	6 W	300 kHz
YA9035-ALD	4 V — 65 V	15 V , 0.4 A	6 W	300 kHz
YA9036-ALD	4 V — 65 V	24 V , 0.25 A	6 W	300 kHz
YA9037-ALD	4 V — 65 V	48 V , 0.1 A	6 W	300 kHz

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 2 A (µH) 2	DCR max (Ω)		Leakage Inductance max (µH) 3	Turns Ratio	Isolation Voltage (Vrms) 4
Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 2 A (µH) 2	Pri	Sec	Leakage Inductance max (µH) 3	Pri : Sec	Isolation Voltage (Vrms) 4
YA9033-ALD	32.0	25.6	0.240	0.032	0.480	1 : 0.5	1500
YA9034-ALD	36.0	28.8	0.244	0.084	0.426	1 : 0.666	1500
YA9035-ALD	30.0	24.0	0.168	0.168	0.290	1 : 1	1500
YA9036-ALD	30.0	24.0	0.168	0.437	0.314	1 : 2	1500
YA9037-ALD	32.0	25.6	0.232	1.444	0.384	1 : 3	1500

Notes

Inductance is for the primary, measured at 300 kHz, 0.1 Vrms, 0 Adc.
Minimum inductance is for the primary, measured at 300 KHz, 0.1 Vrms, 2 Adc.
Leakage inductance is for the primary winding with the secondary windings shorted.
One minute isolation (hipot) measured between primary and secondary.

Termination:

RoHS tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

−40°C to +85°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+125°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

Connect pin 5 to 6 and pin 7 to 8 on the PC board

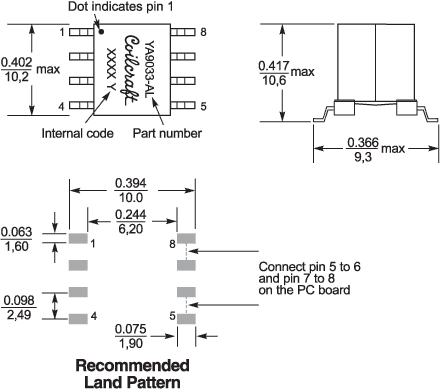

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
300	330	100	13	38,4	32,4	32	20	4	2	10,69	0,5

General specification

Core Material:

Ferrite

Weight:

2 – 2.3 g

Packaging:

300/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 10.69 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info .
