1008LS (2520)

High Temperature Ferrite Chip Inductors

Our 1008LS Series wirewound chip inductors have a ferrite-ceramic core construction that gives higher current handling and lower DCR in an 1008 (2520) chip size. Inductance values range from 1 uH to 100 uH, with a ±5% for all values in the series.

Inductance values from 1.0 µH to 100 µH (5% tolerance)
Higher Q and lower DCR than our 1008CS/HS Series
Ferrite construction for higher current carrying capacity
Defense Supply Center CID A-A-59698
AEC-Q200 Grade 3 (−40°C to +85°C)

Need parts for space, military or other critical applications?
See Coilcraft AR413RAB Series | See Coilcraft ST413RAB Series

Buy Now:

Part number

Find my part

Count	Unit price
1	$0.95
200	$0.74
500	$0.55
1000	$0.40
2000	$0.29
4000	$0.24
10000	$0.20

For high volume or non-stock items, request a quote.

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

E = Silver-palladium-platinum-glass frit

L = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Designer's Kit:

Kit	Values	Price
C336	28 (10 of each)	$70.00

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±5%)	Q min	SRF min (MHz) 3	DCR max (Ω) 4	Irms (mA) 5	Color code 6
Part number 1	Inductance (µH) 2 (Tolerance: ±5%)	Q min	SRF min (MHz) 3	DCR max (Ω) 4	Irms (mA) 5	Color code 6
1008LS-102XJR_	1.0 @ 7.9 MHz	48 @ 50.0 MHz	230	0.62	700	Black
1008LS-122XJR_	1.2 @ 7.9 MHz	37 @ 50.0 MHz	210	0.68	650	Red
1008LS-152XJR_	1.5 @ 7.9 MHz	37 @ 50.0 MHz	190	0.76	630	Green
1008LS-182XJR_	1.8 @ 7.9 MHz	37 @ 50.0 MHz	170	0.84	600	Gray
1008LS-222XJR_	2.2 @ 7.9 MHz	37 @ 50.0 MHz	150	1.1	520	Red
1008LS-272XJR_	2.7 @ 7.9 MHz	37 @ 50.0 MHz	135	1.3	490	Violet
1008LS-332XJR_	3.3 @ 7.9 MHz	37 @ 50.0 MHz	120	1.5	450	Orange
1008LS-392XJR_	3.9 @ 7.9 MHz	37 @ 7.9 MHz	105	1.6	420	White
1008LS-432XJR_	4.3 @ 7.9 MHz	30 @ 7.9 MHz	85.0	1.7	400	Orange
1008LS-472XJR_	4.7 @ 7.9 MHz	32 @ 7.9 MHz	90.0	1.7	400	Violet
1008LS-502XJR_	5.0 @ 7.9 MHz	25 @ 7.9 MHz	30.0	2.2	360	Black
1008LS-562XJR_	5.6 @ 7.9 MHz	37 @ 7.9 MHz	80.0	1.8	380	Blue
1008LS-622XJR_	6.2 @ 7.9 MHz	32 @ 7.9 MHz	75.0	2.5	330	Red
1008LS-682XJR_	6.8 @ 7.9 MHz	37 @ 7.9 MHz	70.0	2.0	360	Gray
1008LS-822XJR_	8.2 @ 7.9 MHz	37 @ 7.9 MHz	65.0	2.7	330	Red
1008LS-912XJR_	9.1 @ 7.9 MHz	37 @ 7.9 MHz	57.0	2.9	310	Brown
1008LS-103XJR_	10 @ 7.9 MHz	37 @ 7.9 MHz	60.0	3.0	300	Black
1008LS-123XJR_	12 @ 7.9 MHz	28 @ 2.5 MHz	38.0	3.3	290	Red
1008LS-153XJR_	15 @ 2.5 MHz	34 @ 2.5 MHz	30.0	3.7	280	Green
1008LS-183XJR_	18 @ 2.5 MHz	28 @ 2.5 MHz	20.0	4.0	160	Gray
1008LS-223XJR_	22 @ 2.5 MHz	20 @ 2.5 MHz	22.0	6.1	270	Red
1008LS-273XJR_	27 @ 2.5 MHz	24 @ 2.5 MHz	12.0	6.5	210	Violet
1008LS-333XJR_	33 @ 2.5 MHz	22 @ 2.5 MHz	19.0	7.0	200	Orange
1008LS-393XJR_	39 @ 2.5 MHz	33 @ 2.5 MHz	26.0	10.0	170	White
1008LS-473XJR_	47 @ 2.5 MHz	20 @ 2.5 MHz	12.0	10.7	160	Violet
1008LS-563XJR_	56 @ 2.5 MHz	20 @ 2.5 MHz	8.0	10.0	170	Blue
1008LS-683XJR_	68 @ 2.5 MHz	14 @ 790 kHz	5.7	13.5	145	Gray
1008LS-104XJR_	100 @ 790 kHz	13 @ 790 kHz	4.5	20.5	120	Black

Notes

When ordering, please specify termination and packaging codes: e.g. 1008LS-103XJRC
Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
SRF measured using an Agilent/HP 8753D network analyzer with a Coilcraft SMD-D fixture.
DCR measured on a Cambridge Technology Micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C. Because of their open construction, these parts will not saturate. This information is for reference only and does not represent absolute maximum ratings.
Current production parts are marked with one dot. Prior production parts were marked with three dots. Single color dots are not unique identifiers and correspond to multiple inductance values. Part marking does not indicate polarity. Details

Termination:

R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C with Irms current

Storage temperature range:

Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+100°C (ambient + temp rise).

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

L vs Frequency

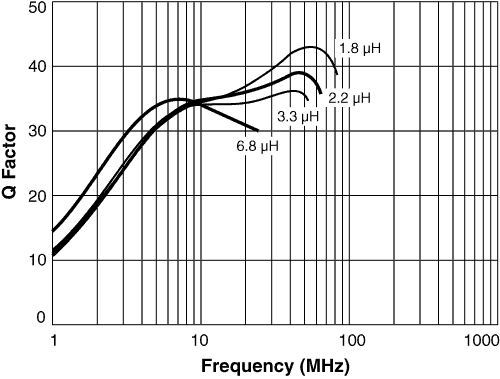

Q vs Frequency

Physical characteristics

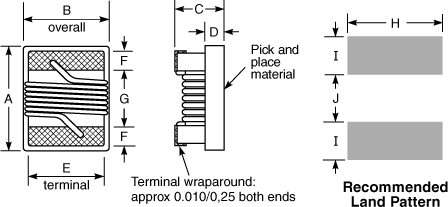

A max	B max	C max	D ref	E	F	G	H	I	J
0.115	0.110	0.080	0.020	0.080	0.020	0.060	0.100	0.040	0.050	inches
2,92	2,79	2,03	0,51	2,03	0,51	1,52	2,54	1,02	1,27	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	2,0	0,3

*Special order

General specification

Core Material:

Ceramic/Ferrite

Weight:

38.3 – 41.0 mg

Packaging:

2000/7″ reel Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing, 2.0 mm pocket depth

Temperature coefficient of inductance:

+100 to +350 ppm/°C

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
