RFB0807 Series

Power Inductors

For values >10uH, we recommend the RFC0807B for new designs. The RFC series is a halogen-free, drop-in replacement for the RFB and offers lower DCR and better current ratings. We will continue to manufacture and support all values of the RFB0807 series.

Coilcraft RFB0807 Series unshielded, radial-leaded inductors are a low-cost option for general-purpose applications. High-reliability extended temperature versions of many series are available for space, military, and other critical applications. RFB0807 Series are cost-reduced higher inductance versions.

Open magnetic path
Rugged through-hole (TH) mount construction
High saturation current ratings
Ferrite core gives flat L vs I curve
AEC-Q200 Grade 3 (−40°C to +85°C)

Buy Now:

Part number

Find my part

Count	Unit price
1	$1.34
150	$1.10
300	$0.82
600	$0.49
1050	$0.39
2550	$0.33
5100	$0.30
10000	$0.28

For high volume or non-stock items, request a quote.

Termination

L = Tin-silver over tin over copper over steel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (mA) 5	Irms (A) 6
Part number 1	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (mA) 5	20°C rise	40°C rise
RFB0807-1R0L	0.90	20	0.0080	180	10000	6.0	8.5
RFB0807-2R2L	2.2	20	0.012	80.0	6000	5.0	7.5
RFB0807-2R7L	2.7	20	0.014	40.0	5500	4.6	6.5
RFB0807-3R3L	3.3	20	0.017	40.0	5000	4.2	6.0
RFB0807-3R9L	3.9	20	0.020	40.0	4500	3.7	5.3
RFB0807-4R7L	4.7	20	0.024	40.0	4200	3.5	5.0
RFB0807-5R6L	5.6	20	0.028	40.0	4000	3.4	4.8
RFB0807-6R8L	6.8	20	0.033	30.0	3600	3.2	4.6
RFB0807-8R2L	8.2	20	0.035	30.0	3300	3.0	4.3
RFB0807-100L	10	10	0.040	30.0	3100	3.0	4.2
RFB0807-120L	12	10	0.050	30.0	2800	2.5	3.6
RFB0807-150L	15	10	0.065	25.0	2500	2.3	3.2
RFB0807-180L	18	10	0.078	20.0	2300	2.1	2.9
RFB0807-220L	22	10	0.10	20.0	2100	1.9	2.7
RFB0807-270L	27	10	0.11	17.0	1900	1.7	2.4
RFB0807-330L	33	10	0.12	15.0	1700	1.5	2.1
RFB0807-390L	39	10	0.16	13.0	1600	1.5	2.1
RFB0807-470L	47	10	0.19	12.0	1450	1.3	1.9
RFB0807-560L	56	10	0.21	11.0	1300	1.2	1.7
RFB0807-680L	68	10	0.28	10.0	1200	1.1	1.6
RFB0807-820L	82	10	0.33	9.0	1100	1.0	1.4
RFB0807-101L	100	10	0.40	8.0	1000	0.90	1.3
RFB0807-121L	120	10	0.45	7.0	900	0.80	1.1
RFB0807-151L	150	10	0.51	6.0	800	0.72	1.0
RFB0807-181L	180	10	0.70	5.0	700	0.63	0.90
RFB0807-221L	220	10	0.80	5.0	650	0.60	0.85
RFB0807-271L	270	10	0.90	4.5	600	0.55	0.78
RFB0807-331L	330	10	1.2	4.5	550	0.50	0.71
RFB0807-391L	390	10	1.3	3.5	450	0.40	0.57
RFB0807-471L	470	10	1.8	2.9	400	0.36	0.51
RFB0807-561L	560	10	2.0	2.7	380	0.35	0.50
RFB0807-681L	680	10	2.2	2.6	350	0.31	0.44
RFB0807-821L	820	10	3.0	2.6	320	0.29	0.41
RFB0807-102L	1000	10	3.4	2.6	300	0.25	0.40
RFB0807-122L	1200	10	4.5	2.3	280	0.24	0.34
RFB0807-152L	1500	10	5.2	2.1	250	0.21	0.30
RFB0807-182L	1800	10	5.8	1.8	220	0.20	0.28
RFB0807-222L	2200	10	8.0	1.5	200	0.18	0.26
RFB0807-272L	2700	10	8.9	1.2	180	0.17	0.24
RFB0807-332L	3300	10	11.8	1.1	150	0.14	0.19
RFB0807-392L	3900	10	13.1	1.0	120	0.11	0.16
RFB0807-472L	4700	10	17.6	1.0	100	0.10	0.15
RFB0807-562L	5600	10	19.6	0.90	100	0.10	0.15
RFB0807-682L	6800	10	27.0	0.80	100	0.10	0.14
RFB0807-822L	8200	10	30.0	0.70	100	0.10	0.14
RFB0807-103L	10000	10	34.0	0.70	100	0.10	0.13
RFB0807-123L	12000	10	46.0	0.60	80	0.10	0.13
RFB0807-153L	15000	10	53.0	0.50	60	0.080	0.11
RFB0807-183L	18000	10	56.0	0.50	50	0.080	0.10

Notes

When ordering, please specify termination code: e.g. RFB0807-183L
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent. Details
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

L = RoHS compliant tin-silver over tin over copper over steel.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

−40°C to +85°C with (40°C rise) Irms

Storage temperature range:

Component: –40°C to +125°C.
Tray packaging: –40°C to +80°C

Maximum part temperature:

+125°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

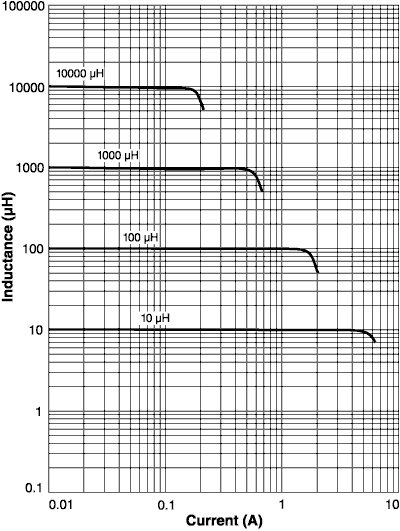

Inductance vs. Current

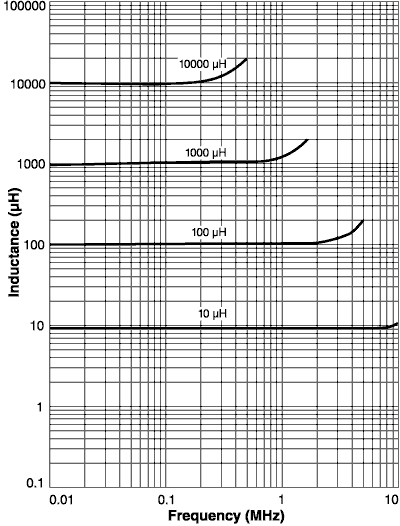

Inductance vs. Frequency

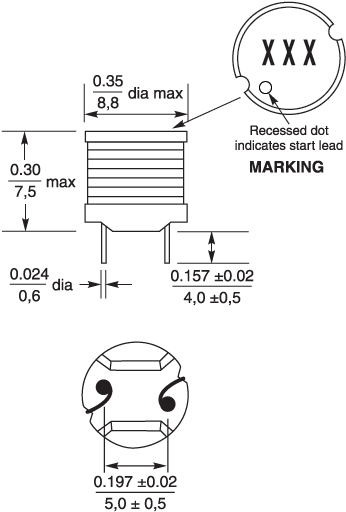

Physical characteristics

General specification

Core Material:

Ferrite

Weight:

1.22 – 1.46 g

Packaging:

150 parts per tray

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested with pure water or alcohol only. More info.
