DO1607B Series

Backlight Inductors

Coilcraft DO1607B Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
AEC-Q200 Grade 3 (−40°C to +85°C)

Buy Now:

Part number

Find my part

Count	Unit price
1	$1.39
750	$1.11
1500	$0.84
3000	$0.68
6000	$0.58

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

L = Gold over nickel over moly-manganese

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (mH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	Isat (mA) 4	Irms (mA) 5
Part number 1	Inductance (mH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	Isat (mA) 4	Irms (mA) 5	40°C rise
DO1607B-105ML_	1.0	19.0	100	150
DO1607B-155ML_	1.5	21.0	75	140
DO1607B-225ML_	2.2	42.0	60	100
DO1607B-335ML_	3.3	52.0	50	90
DO1607B-475ML_	4.7	80.0	45	80
DO1607B-685ML_	6.8	125	40	60

Notes

When ordering, please specify termination and packaging codes: e.g. DO1607B-685MLC
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR tested at 25°C on a Cambridge Technology 510-A with Coilcraft CCF859 fixture. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

L = Gold over nickel over moly-manganese.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (2500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

−40°C to +85°C with Irms current

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+125°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

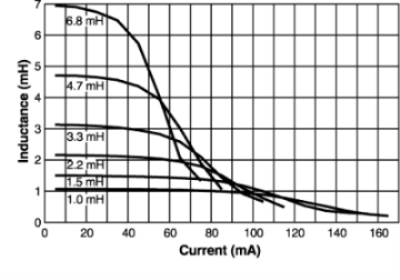

Inductance vs. Current

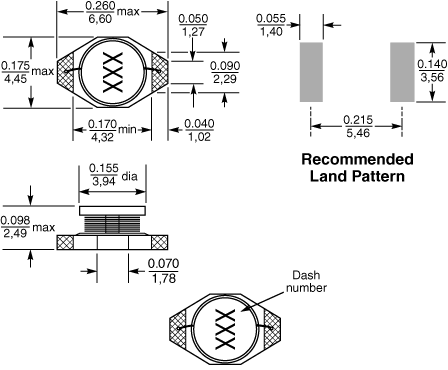

Physical characteristics

Tape and Reel specification


Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
750	2500	178/330	60/100	13	18,4	12,4	12	8	4	2	3,0	0,28	or

* Special order
‡ Dot or number marking does not indicate polarity

General specification

Weight:

0.12 – 0.13 g

Soldering/Washing

Resistance to soldering heat:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
