3D Model Datasheet Inductors for Class-D audio

RA7231 Series

Dual Inductor for Class-D output filters

Coilcraft's RA7231 Series uncoupled dual inductors provide two back-to-back inductors that operate independently without coupling effects. This unique design saves space by combining two inductors in a single package. They are perfect for Class-D applications.

Designed for low distortion and the best possible sound quality.
Learn more.
Shielded package contains both coils.
Very low magnetic coupling
AEC-Q200 Grade 1 (−40°C to +125°C)

Buy Now:

Count	Unit price
1	$4.54
100	$3.88
250	$3.38
500	$2.95
1000	$2.29
2500	$1.97
5000	$1.81

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
RA7231-AL_	5.0	6.0	34.0	15.5	16.6	17.6	7.6	10.6

Notes

When ordering, please specify packaging code: e.g. RA7231-ALD
Inductance is for each winding, measured at 100 kHz, 1.0 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer. Minimum inductance is 4.5 µH at 11.5 Adc.
DCR is for each winding, measured on a micro-ohmmeter at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer.
Isat: DC current (typical) at which the inductance drops the specified amount from its value without current.
Irms: Current applied to both windings at the same time that causes the specified temperature rise from 25°C ambient.

Termination:

RoHS compliant tin-silver (96.5/3.5) over copper.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +125°C with Irms current

Storage temperature range:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+165°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

Inductance vs Current

Schematics

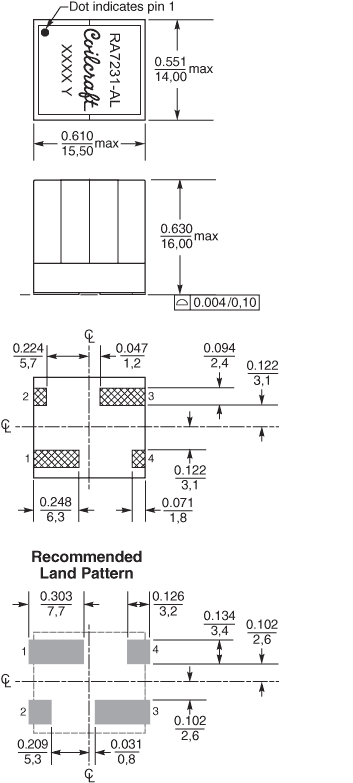

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
150	330	100	13	38,4	32,4	32	24	4	2	16,1	0,5

General specification

Core Material:

Ferrite

Weight:

12.3 g

Packaging:

150/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 16.1 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
