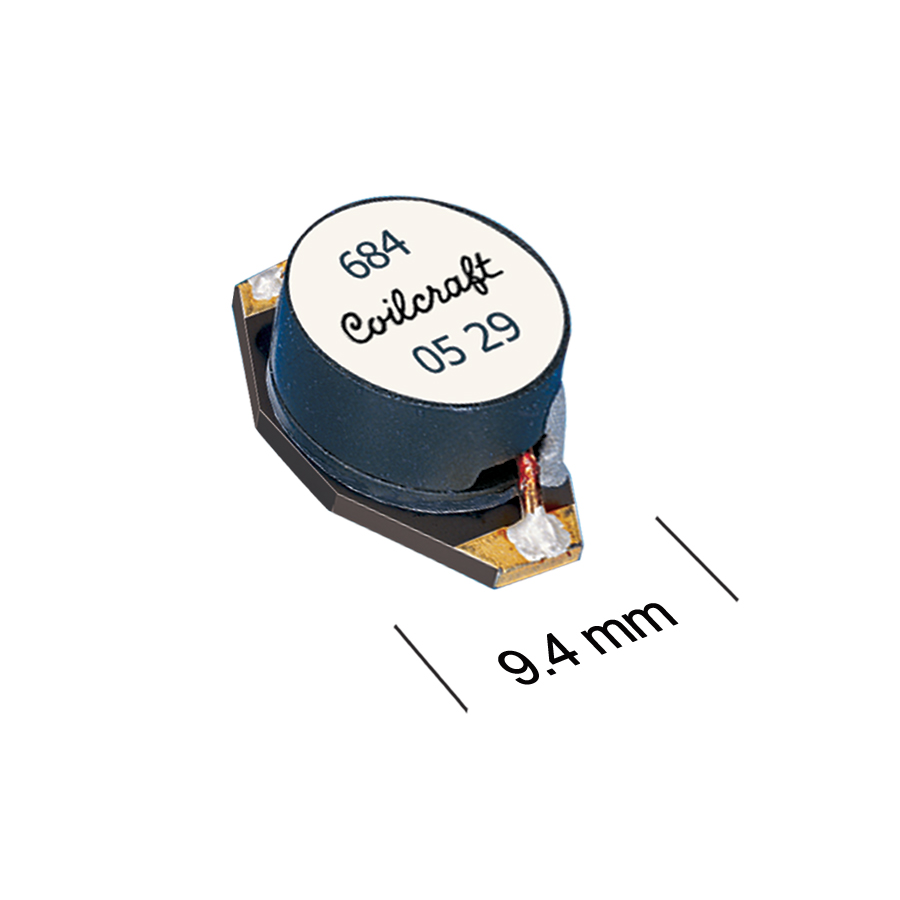

DT3316P Series

Shielded Surface Mount Power Inductors

We will continue to manufacture and support the DT3316P indefinitely, however for new designs, we recommend the MSS7341, MSS1038 or MSS1260 as alternatives. These series are more cost effective and offer better current handling.

DT3316P MSS7341 MSS1038 MSS1260

This series was always RoHS compliant; only the part numbers changed. Added characters indicate tolerance, RoHS compliance, and packaging. View old data sheet.
Specially designed to provide low loss benefit of ferrite and soft saturation
RoHS-compliant. 260°C compatible. Electroplated gold (<50 µin) over nickel over phos bronze terminations
COTS Plus tin-silver-copper and tin-lead terminations available

Buy Now:

Part number

Find my part

Count	Unit price
1	$1.98
500	$1.71
1000	$1.35
2000	$1.10
5000	$0.91

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

L = Gold over nickel

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (A) 4		Irms (mA) 5
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	20% drop	30% drop	Irms (mA) 5	20°C rise
DT3316P-102ML_	1.0	0.025	60.0	4.5	8.0	4000
DT3316P-152ML_	1.5	0.030	55.0	4.0	5.5	4000
DT3316P-222ML_	2.2	0.035	55.0	1.9	3.0	4000
DT3316P-332ML_	3.3	0.040	50.0	1.6	2.8	4000
DT3316P-472ML_	4.7	0.045	45.0	1.5	2.4	3000
DT3316P-682ML_	6.8	0.050	40.0	1.3	2.2	2500
DT3316P-103ML_	10	0.055	35.0	0.80	1.2	2000
DT3316P-153ML_	15	0.060	25.0	0.65	1.1	1800
DT3316P-223ML_	22	0.084	22.0	0.60	1.0	1500
DT3316P-333ML_	33	0.090	18.0	0.55	0.90	1300
DT3316P-473ML_	47	0.11	16.0	0.32	0.50	1000
DT3316P-683ML_	68	0.15	12.0	0.28	0.45	900
DT3316P-104ML_	100	0.29	9.0	0.28	0.40	800
DT3316P-154ML_	150	0.36	8.0	0.21	0.35	600
DT3316P-224ML_	220	0.39	6.0	0.17	0.26	500
DT3316P-334ML_	330	0.73	5.0	0.13	0.20	400
DT3316P-474ML_	470	0.88	4.0	0.11	0.18	350
DT3316P-684ML_	680	1.2	3.0	0.090	0.14	300
DT3316P-105ML_	1000	1.5	2.5	0.085	0.14	250

Notes

When ordering, please specify termination and packaging codes: e.g. DT3316P-105MLD
Inductance tested at 100 kHz, 0.1 Vrms.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 10°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

L = Gold over nickel over phos bronze terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C with Irms current

Storage temperature range:

e Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+95°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

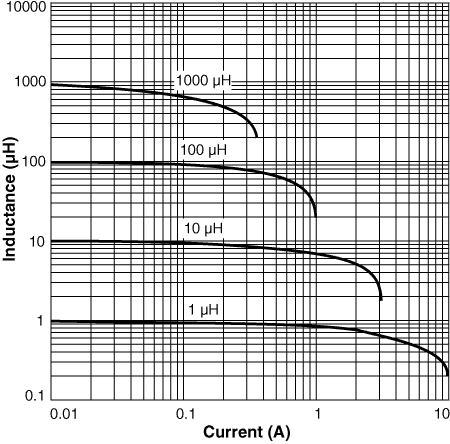

Inductance vs Current

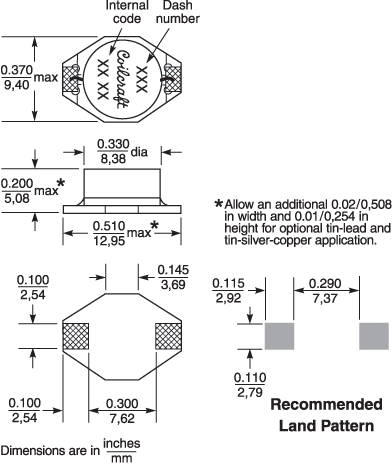

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	330	100	13	30,4	24,4	24	12	4	2	5,8	0,33

‡ Dot or number marking does not indicate polarity

General specification

Core Material:

Ferrite

Weight:

0.86 – 1.06 g

Packaging:

1000 per 13″ reel Plastic tape: 24 mm wide, 0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
