XGL1712 Series

Ultra-Low Loss Shielded Power Inductors

XGL1712 molded power inductors offer our lowest DC losses and extremely low AC losses for a wide range of DC-DC converters. Additional performance benefits include a wider range of inductance values and improved I_rms current ratings.

Industry’s lowest DCR and low power losses
Wide inductance range up to 82 µH

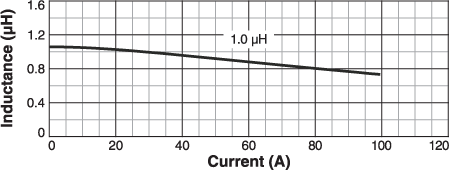

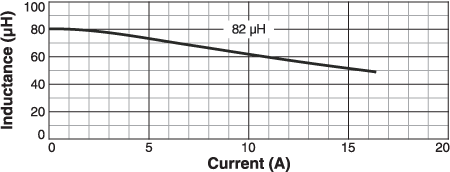

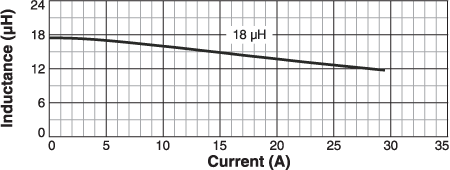

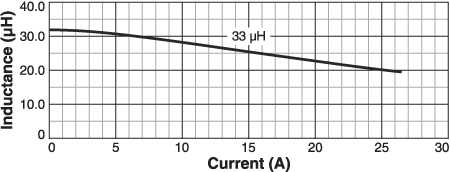

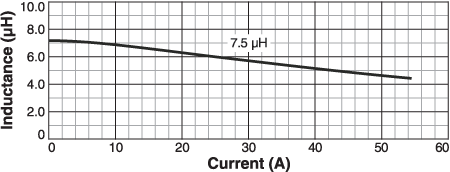

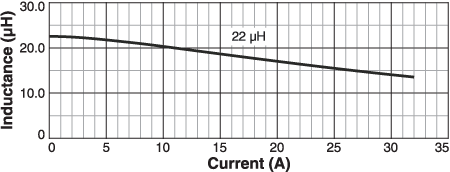

High current handling with soft saturation characteristics
AEC-Q200 (–40°C to +125°C) with a 165°C max part temperature

Buy Now:

Part number

Find my part

Count	Unit price
1	$9.49
150	$9.31
300	$6.98
600	$4.19
1200	$3.26
2400	$2.79
5000	$2.56

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

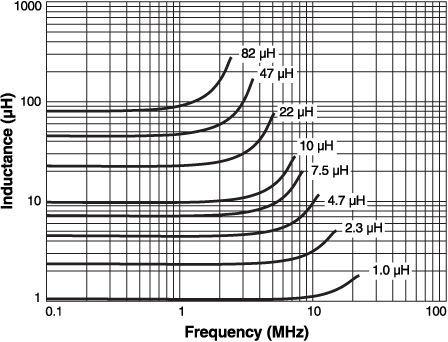

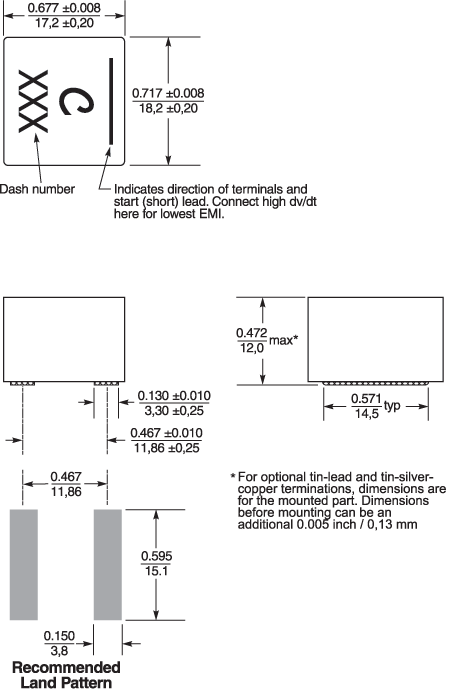

Specifications

Electrical specifications at 25°C. Operating voltage 0 — 60 V

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL1712-102MED	1.0	0.90	1.1	27.0	40.0	68.0	95.0	40.0	55.0
XGL1712-162MED	1.6	1.1	1.3	21.0	32.0	54.5	77.0	36.0	50.0
XGL1712-232MED	2.3	1.3	1.5	17.0	28.5	48.0	69.5	31.6	43.5
XGL1712-332MED	3.3	1.6	1.9	15.0	23.0	40.0	59.0	30.3	41.7
XGL1712-472MED	4.7	2.0	2.3	13.0	19.9	35.0	51.5	27.2	37.7
XGL1712-562MED	5.6	2.5	2.8	12.0	18.2	32.0	47.0	24.6	33.9
XGL1712-752MED	7.5	3.1	3.6	9.7	16.5	28.5	42.0	22.4	31.5
XGL1712-103MED	10	3.8	4.4	8.4	14.3	24.5	35.0	20.3	27.9
XGL1712-153MED	15	6.3	7.2	6.6	11.3	19.7	29.0	16.8	22.7
XGL1712-183MED	18	6.9	7.9	6.3	10.9	18.5	27.0	15.4	21.2
XGL1712-223MED	22	8.8	9.8	5.7	9.8	16.6	24.0	14.4	19.5
XGL1712-333MED	33	13.7	15.2	5.1	8.9	14.6	20.5	11.3	15.4
XGL1712-473MED	47	18.7	20.7	4.1	7.1	11.8	16.5	9.7	13.3
XGL1712-683MED	68	28.2	31.3	3.4	5.6	9.2	12.8	8.1	11.0
XGL1712-823MED	82	34.6	38.4	2.8	5.3	8.8	12.5	7.1	9.7

Notes

When ordering, please specify termination code: e.g. XGL1712-823MED
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.

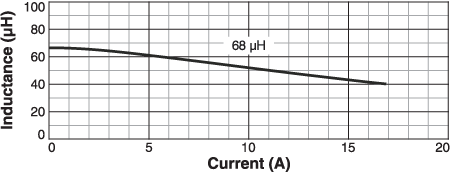

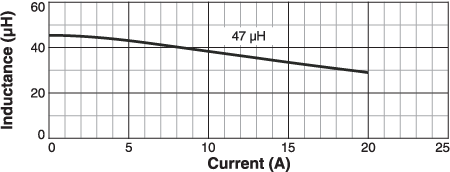

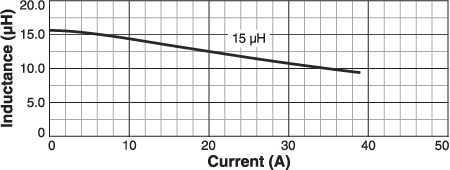

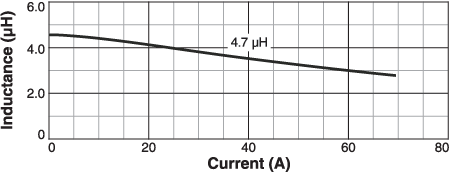

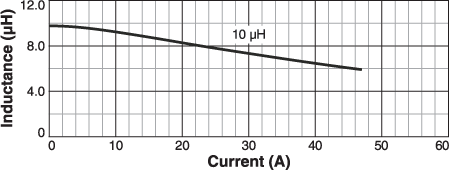

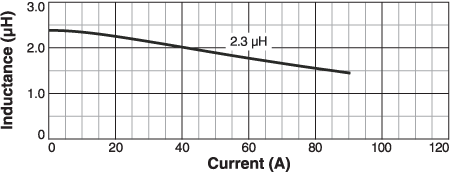

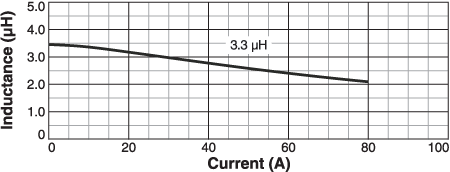

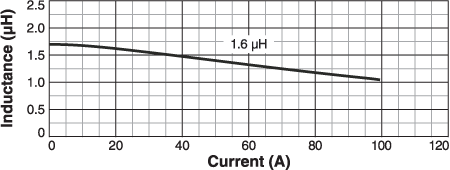

Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Termination:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

D = 13" machine-ready reel
EIA-481 embossed plastic tape (150 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +125°C with (40°C rise) Irms current

Storage temperature range:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

Maximum part temperature:

+165°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations
