XEL4020V Series Ultra-Low Loss

Shielded Power Inductors

Exceptionally low DCR and ultra low AC losses for
high switching applications (2 to 5 MHz)
Superior current handling with soft saturation characteristics
Composite construction minimizes audible buzzing
High-voltage rating of 120 V - 50% higher than the standard series.
Learn more about Voltage Ratings for Inductors
AEC-Q200 Grade 1 (−40°C to +125°C)
Designed for high temperature applications
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
For higher Isat ratings, consider our XEL4030V Series
COTS Plus tin-silver-copper and tin-lead terminations available

Buy Now:

Part number

Find my part

Count	Unit price
1	$2.32
100	$2.04
250	$1.53
500	$0.92
1000	$0.71
2500	$0.63
5000	$0.57

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C. Operating voltage 0 – 120 V

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	Isat (A) 5	20°C rise	40°C rise
XEL4020V-800	0.080	1.5	1.8	305	33.2	15.5	21.4
XEL4020V-101	0.10	2.0	2.5	280	28.5	14.6	19.9
XEL4020V-201	0.20	3.0	3.4	180	19.7	14.0	17.2
XEL4020V-331	0.33	5.2	5.7	124	15.7	11.9	15.4
XEL4020V-561	0.56	8.0	8.8	90.0	11.3	9.9	13.8
XEL4020V-821	0.82	11.8	13.0	69.0	10.2	8.1	11.5
XEL4020V-102	1.0	13.3	14.6	68.0	9.0	6.7	9.6
XEL4020V-122	1.2	17.8	19.5	59.0	8.1	6.6	9.0
XEL4020V-152	1.5	21.5	23.6	54.0	7.4	5.2	7.5
XEL4020V-222	2.2	35.2	38.7	41.0	5.9	4.0	5.5

Notes

When ordering, please specify termination and packaging codes: e.g. XEL4020V-222MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes a 30% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Termination:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +125°C with (40°C) Irms current

Storage temperature range:

Component: –55°C to +165°C
Tape and reel packaging: –55°C to +80°C

Maximum part temperature:

+165°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

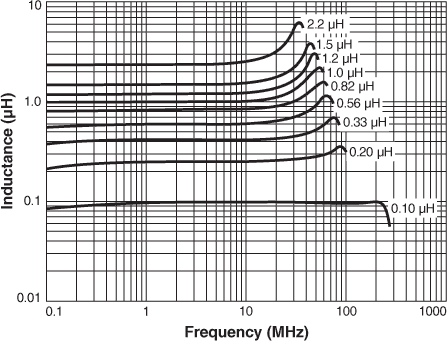

Inductance vs. Frequency

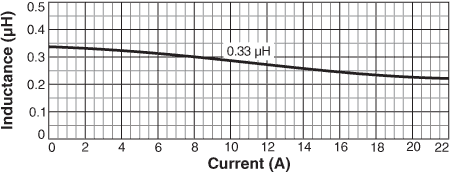

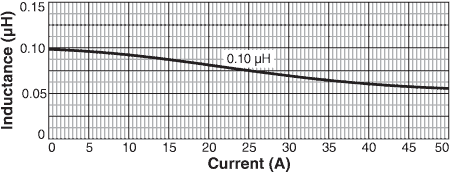

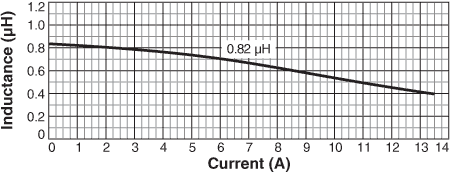

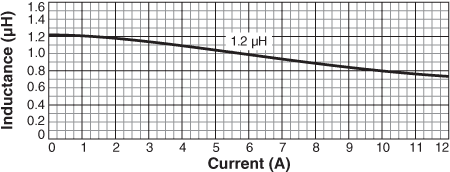

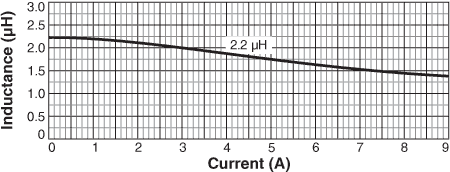

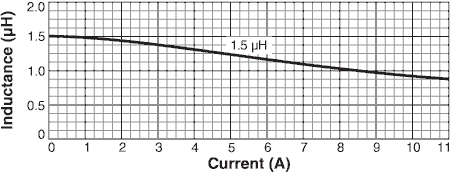

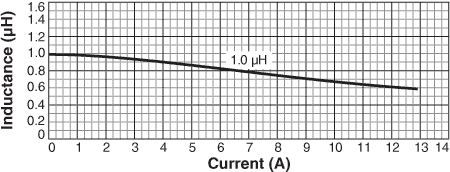

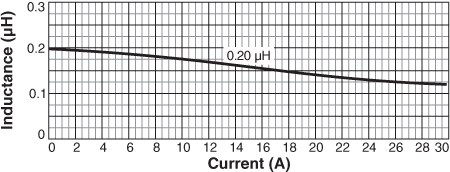

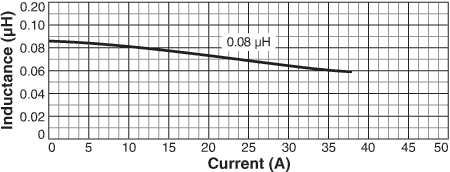

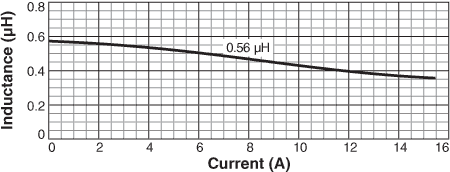

L vs. Current

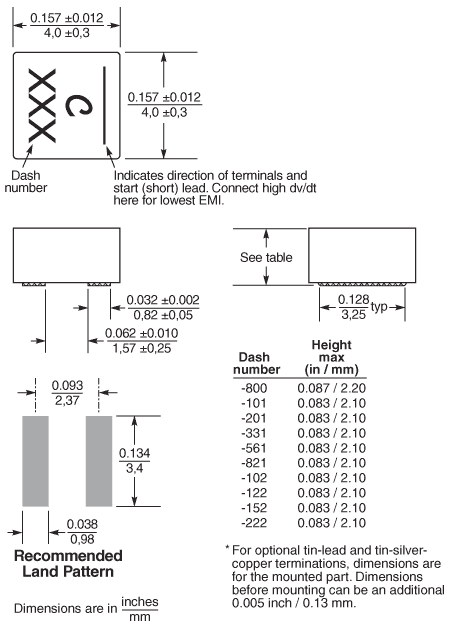

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	2,1	0,23

* Special order

General specification

Core Material:

Composite

Weight:

0.17 g

Packaging:

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 2.1 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles Moisture Sensitivity Level (MSL) 1 (unlimited floor life at

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
