XAL1080 Series

High Current Shielded Power Inductors

XAL1080 high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits. They offer high current ratings and are ideal for high switching frequencies with low AC losses.

Industry’s lowest DCR and low power losses
High current handling with soft saturation characteristics
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature

Buy Now:

Part number

Find my part

Count	Unit price
1	$5.32
100	$4.66
250	$3.49
500	$2.09
1000	$1.63
2500	$1.40
5000	$1.28

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Tin-silver over copper

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C. Operating voltage 0 — 60 V

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XAL1080-103MED	10	10.7	12.3	11.5	5.8	9.5	13.4	10.7	14.8
XAL1080-123MED	12	12.0	13.8	10.6	5.5	9.0	12.6	10.0	13.9
XAL1080-153MED	15	15.6	17.9	9.2	5.2	8.2	11.5	8.5	11.7
XAL1080-183MED	18	18.5	21.3	8.5	4.6	7.4	10.3	7.9	10.8
XAL1080-223MED	22	21.3	24.5	7.4	4.1	6.6	9.0	7.3	10.0
XAL1080-333MED	33	33.4	38.4	6.5	3.5	5.7	7.9	5.5	7.5

Notes

When ordering, please specify termination code: e.g. XAL1080-333MED
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes an inductance drop of 30% (typ) from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Termination:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

−40°C to +125°C with (40°C rise) Irms

Storage temperature range:

Component: −55°C to +165°C
Tape and reel packaging: −55°C to +80°C

Maximum part temperature:

+165°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

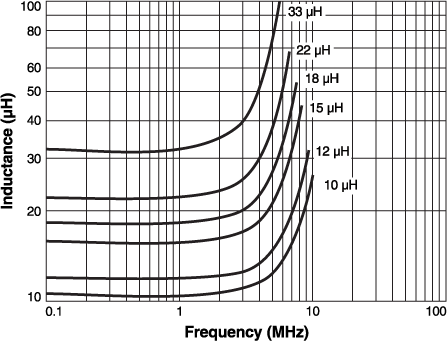

L vs Frequency

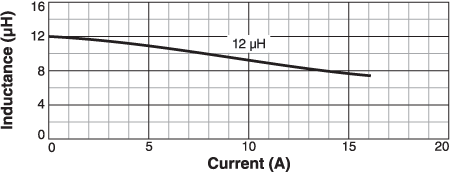

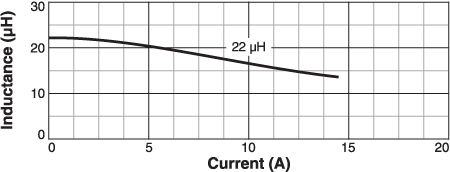

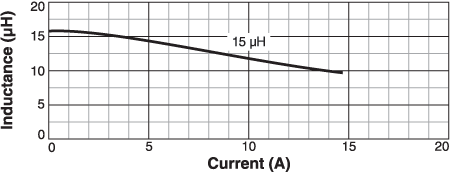

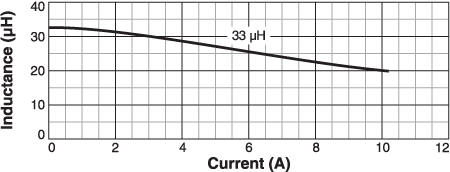

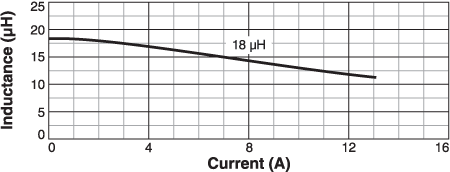

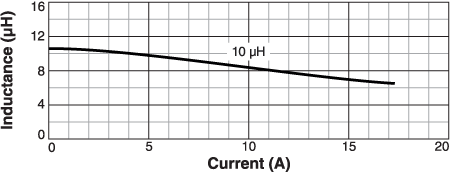

L vs Current

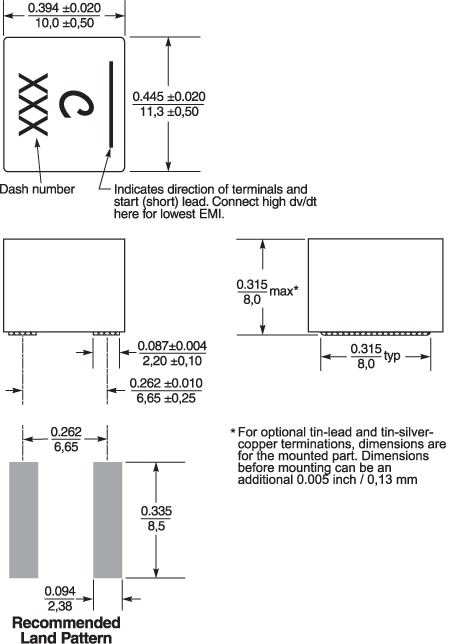

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	8,23	0,4

General specification

Core Material:

Composite

Weight:

5.4 g

Packaging:

500/13″ reel Plastic tape: 24 mm wide, 0.4 mm thick, 16 mm pocket spacing, 8.23 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

XAL1080 Series

High Current Shielded Power Inductors
