PFL1609-471

Name: PFL1609-471MEW
Brand: Coilcraft
SKU: PFL1609-471MEW
Price: 0.35 USD
Availability: InStock

PFL1609-471MEW

For more information and specification about the part.

Go to series

Buy Now:

Count	Unit price
1	$0.56
200	$0.51
500	$0.42
1000	$0.35
2000	$0.30
4000	$0.27

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

W = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Designer's Kit:

Kit	Values	Price
C433	14 (20 of each)	$45.00

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (nH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (mA) 5			Irms (mA) 6
Part number 1	Inductance (nH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
PFL1609-471ME_	470	83	100	650	760	990	1200	1000	1300

Notes

When ordering, please specify termination and packaging codes: e.g. PFL1609-103MEW
Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-F test fixture with an Agilent/HP 4286A impedance analyzer and Coilcraft provided correlation pieces.
DCR measured at 25°Cusing a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

E = Halogen free component. RoHS-compliant matte tin over nickel over silver-platinum-glass frit terminations.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

W = 7″ machine-ready reel. EIA-481 punched paper tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge). (2000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

−40°C to +125°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+140°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

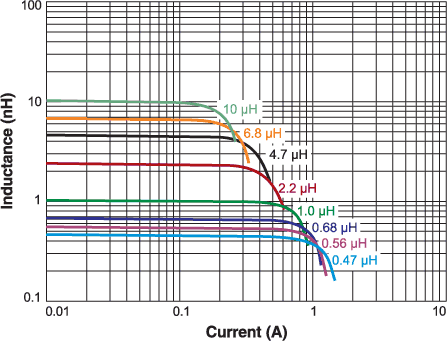

Inductance vs Current

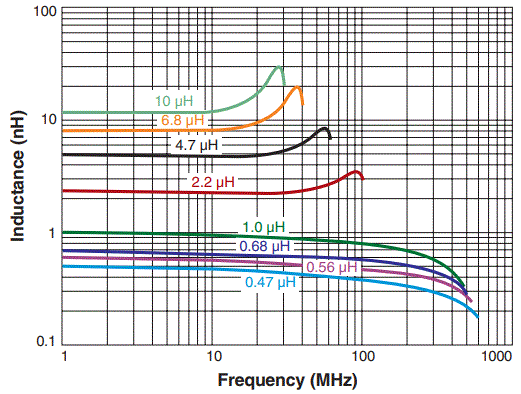

Inductance vs. Frequency

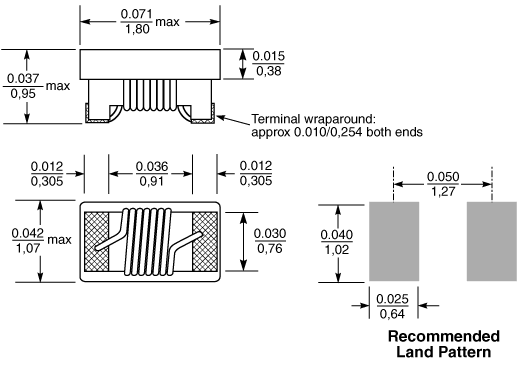

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	178	100	13	14,4	8,4	8	4	4	2	1,0

General specification

Core Material:

Composite

Weight:

4.3 – 8.3 mg

Packaging:

2000 per 7″ reel Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
