RFS1113 Series

Shielded Power Inductors

Coilcraft RFS1113 Series through-hole power inductors provide rugged, low-cost, shielded solutions for a variety of choke applications. They come in a wide range of inductance values covering three sizes / series.

Low cost, high efficiency
Rugged TH mount construction
Ferrite core for flat L vs I
Magnetic shielding to minimize EMI

Buy Now:

Part number

Find my part

Count	Unit price
1	$1.32
125	$1.12
500	$0.82
1000	$0.64
2500	$0.56
5000	$0.51

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Tin-silver over tin over copper over steel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
RFS1113-682ME	6.8	0.014	0.016	45.0	6.6	8.0	9.1	5.7	7.8
RFS1113-103ME	10	0.017	0.020	30.2	5.4	6.6	7.4	5.2	7.2
RFS1113-153ME	15	0.020	0.023	19.8	4.0	5.0	5.8	4.8	6.6
RFS1113-223ME	22	0.023	0.026	11.8	3.5	4.2	4.8	4.4	6.1
RFS1113-273ME	27	0.032	0.036	9.6	3.0	3.6	4.2	3.6	5.1
RFS1113-333ME	33	0.045	0.052	8.8	2.8	3.5	4.0	3.2	4.4
RFS1113-393ME	39	0.058	0.064	8.4	2.4	3.1	3.6	2.8	3.8
RFS1113-473ME	47	0.081	0.089	7.9	2.2	2.9	3.3	2.3	3.2
RFS1113-104ME	100	0.18	0.20	4.0	1.5	1.9	2.2	1.6	2.1
RFS1113-224ME	220	0.28	0.30	2.8	1.0	1.3	1.5	1.3	1.7
RFS1113-564ME	560	0.71	0.74	1.8	0.68	0.86	0.98	0.73	1.0
RFS1113-105ME	1000	1.8	1.9	1.3	0.51	0.63	0.73	0.46	0.60
RFS1113-275ME	2700	3.8	4.0	0.72	0.33	0.40	0.45	0.30	0.40

Notes

When ordering, please specify termination code: e.g. RFS1113-275ME
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc; measured on an Agilent/HP 4284A LCR-meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

E = RoHS compliant tin-silver (96.5/3.5) over tin over copper over steel.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C with Irms current

Storage temperature range:

Component: −40°C to +125°C
Packaging trays: −40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

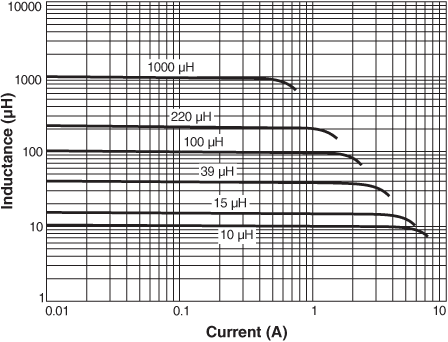

Inductance vs Current

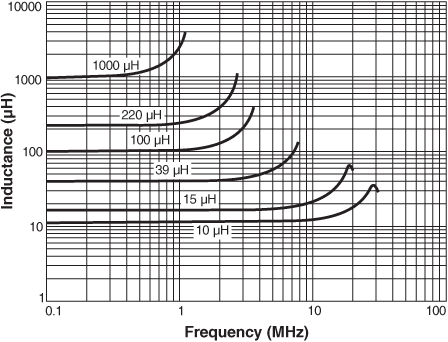

Inductance vs Frequency

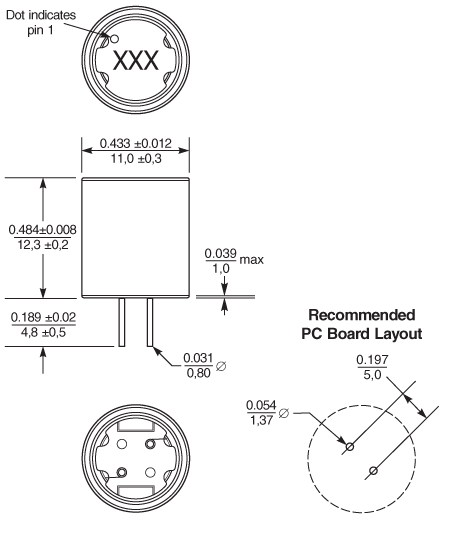

Physical characteristics

General specification

Core Material:

Ferrite

Weight:

4.1 – 4.7 g

Packaging:

169 parts per tray

Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity

PCB Washing:

Tested with pure water or alcohol only. More info.

RFS1113 Series

Shielded Power Inductors
