3D Model Datasheet

MSS7341T-104

Name: MSS7341T-104MLD
Brand: Coilcraft
SKU: MSS7341T-104MLD
Price: 0.73 USD
Availability: InStock

MSS7341T-104MLD

For more information and specification about the part.

Go to series

Buy Now:

Count	Unit price
1	$1.85
300	$1.20
600	$0.73
1200	$0.57
2400	$0.48
4800	$0.45

For high volume or non-stock items, request a quote.

Termination

L = Matte tin over nickel

Packaging

D = 13" machine-ready reel

Tolerance

M = 20%

. in stock, ready to ship today.

Request a Sample:

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS7341T-224ML_	220	0.66	0.71	5.0	0.39	0.47	0.51	0.57	0.78

Notes

When ordering, please specify termination and packaging codes: e.g. MSS7341T-474MLD
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD -D test fixture.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

L = RoHS compliant matte tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5) over gold over nickel over phos bronze. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over gold over nickel over phos bronze. (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1200 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +125°C with (40°C rise) Irms current

Storage temperature range:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+165°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

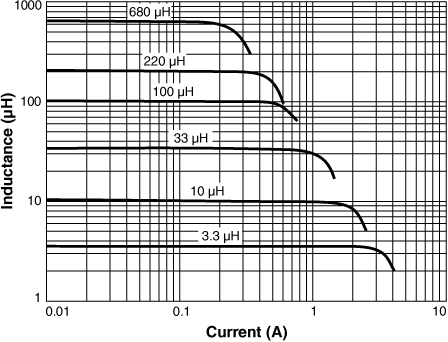

Inductance vs. Current

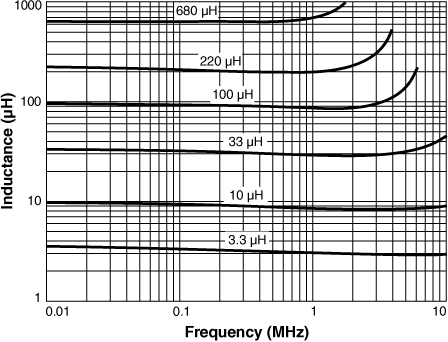

Inductance vs. Frequency

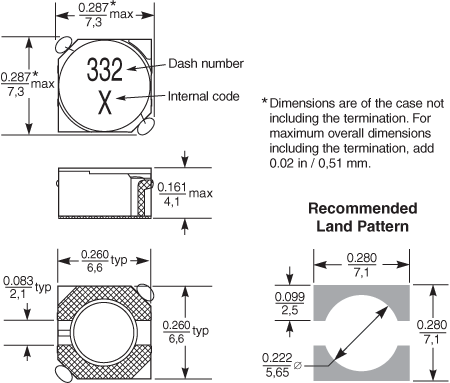

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
13" (330 mm)	7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1200	300*	178/330	60/100	13	22,4	16,4	16	12	4	2	4,5	0,35

* Special order
‡ Part marking does not indicate polarity.

General specification

Core Material:

Ferrite

Weight:

0.61 - 0.67 g

Packaging:

300/7 reel; 1200/13″ reel; Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
