MSS1048T Series

High Temperature Power Inductors

Coilcraft MSS1048T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 1 (−40°C to +125°C)

Buy Now:

Part number

Find my part

Count	Unit price
1	$2.29
200	$1.54
600	$0.93
1000	$0.73
2400	$0.62
5000	$0.58

For high volume or non-stock items, request a quote.

Tolerance

N = 30%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2	Tolerance (%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2	Tolerance (%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS1048T-801NL_	0.80	30	4.3	180	9.6	12.0	14.1	8.2	12.0
MSS1048T-152NL_	1.5	30	5.1	90.0	5.4	7.8	10.5	7.4	10.8
MSS1048T-222NL_	2.2	30	7.2	70.0	4.9	6.6	8.4	6.6	9.8
MSS1048T-332NL_	3.3	30	10.0	50.0	4.6	6.3	7.4	5.0	7.2
MSS1048T-472NL_	4.7	30	11.5	38.0	4.4	5.6	6.5	4.9	6.9
MSS1048T-682NL_	6.8	30	16.3	35.0	3.6	5.0	5.9	4.5	6.0
MSS1048T-822NL_	8.2	30	20.0	28.0	3.1	4.1	4.8	4.4	5.7
MSS1048T-103ML_	10	20	23.0	24.0	3.1	3.8	4.3	4.0	4.8
MSS1048T-153ML_	15	20	36.0	20.0	2.5	3.1	3.4	3.5	4.3
MSS1048T-223ML_	22	20	50.0	12.0	2.4	2.9	3.3	2.9	3.6
MSS1048T-333ML_	33	20	68.0	11.0	1.7	2.1	2.4	2.1	2.8
MSS1048T-473ML_	47	20	120	10.0	1.4	1.9	2.2	1.8	2.4
MSS1048T-563ML_	56	20	126	10.0	1.4	1.7	1.9	1.7	2.3
MSS1048T-683ML_	68	20	176	7.0	1.3	1.6	1.7	1.4	1.9
MSS1048T-823ML_	82	20	196	6.0	1.1	1.4	1.6	1.2	1.7
MSS1048T-104ML_	100	20	224	6.0	0.99	1.2	1.4	1.1	1.5
MSS1048T-154KL_	150	10	330	5.0	0.79	1.0	1.2	0.97	1.3
MSS1048T-184KL_	180	10	360	4.5	0.75	0.92	1.0	0.89	1.2
MSS1048T-224KL_	220	10	394	4.5	0.67	0.84	0.95	0.85	1.2
MSS1048T-334KL_	330	10	748	3.0	0.57	0.69	0.76	0.57	0.82
MSS1048T-474KL_	470	10	886	2.7	0.43	0.52	0.62	0.50	0.72

Notes

When ordering, please specify termination and packaging codes: e.g. MSS1048T-474KLC
Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer or equivalent. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

L = RoHS compliant matte tin over nickel over copper.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (800 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +125°C with (40°C rise) Irms current

Storage temperature range:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+165°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

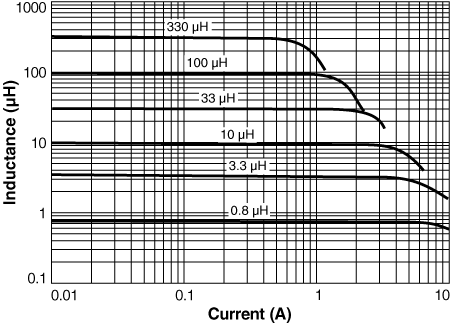

Inductance vs. Current

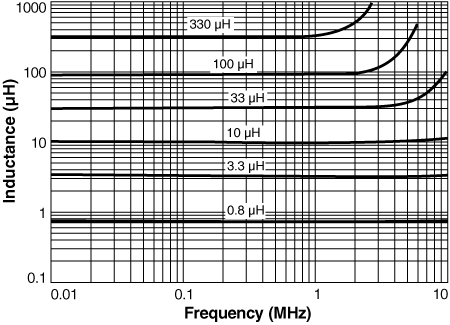

Inductance vs. Frequency

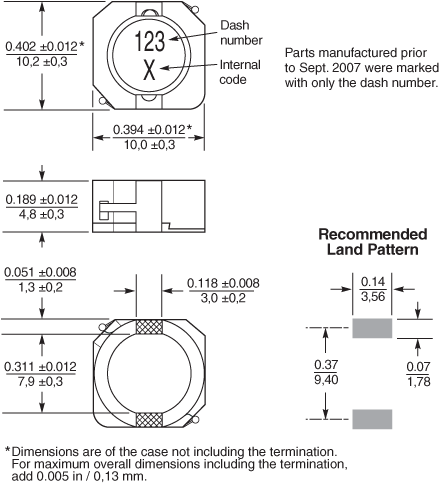

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	800*	178/330	60/100	13	30,4	24,4	24	16	4	2	5,1	0,35

* Special order
‡ Part marking does not indicate polarity

General specification

Core Material:

Ferrite

Weight:

1.7 - 1.9 g

Packaging:

200/7″ reel; 800/13″ reel; Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing, 5.1 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
