ZA9735-AE Coupled Power Inductor

for Microchip Technology HV56020/22

Developed for Haptic Driver solution HV56020/22 for Microchip Technology
Designed for flyback topology in a haptic driver circuit
Switching frequency: 300 kHz; V_in : 3.0 V; V_out : 230 V
200 Vrms, one minute isolation (hipot) between primary and secondary windings

Buy Now:

Count	Unit price
1	$3.82
350	$2.50
700	$1.50
1400	$1.17
2800	$1.01
5250	$0.92

For high volume or non-stock items, request a quote.

Packaging

C = 7" machine-ready reel

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)		DCR max (Ω)		Leakage Inductance (µH) 4	Turns Ratio	Isat (A) 5
Part number 1	L1	L2	L1	L2	Leakage Inductance (µH) 4	Turns Ratio	Isat (A) 5
ZA9735-AE_	1.0	100	0.02	1.70	0.065	1 : 10	8.0

Notes

When ordering, please specify packaging code: e.g. ZA9735-AEC
Inductance is measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
Isolation: 200 Vrms applied for 1 minute between primary and secondary windings.
Leakage inductance is for L1 and is measured at 100 kHz, 0.1 Vrms with L2 shorted.
Isat: DC current applied to L1, at which the inductance drops 30% from its value without current.

Termination:

RoHS compliant matte tin over nickel over phos bronze.

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1200 parts per full reel).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

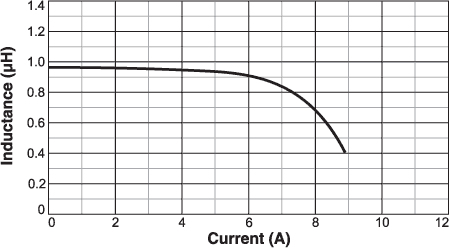

Performance curves

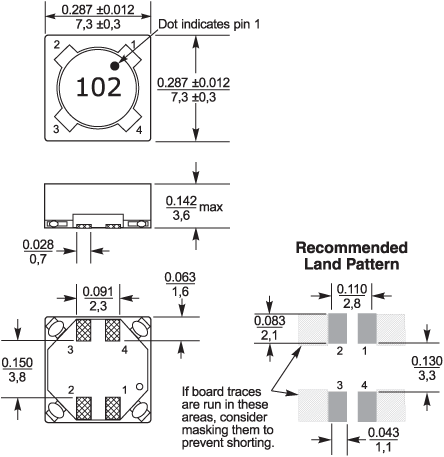

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	3,9	0,35

* Special order

General specification

Core Material:

Ferrite

Weight:

430 mg

Packaging:

350/7″ reel; 1200/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 3.9 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
