MSD1260 Series

Shielded Coupled Power Inductors

Coilcraft's MSD1260 Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.

Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetic shielding allows high-density mounting
Tight winding coupling
Industry standard footprint
AEC-Q200 Grade 3 (−40°C to +85°C)

See Selecting inductors for SEPIC (move to resources)

Buy Now:

Part number

Find my part

Count	Unit price
1	$2.68
250	$1.74
500	$1.05
1000	$0.81
2500	$0.70
5000	$0.64

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

L = Matte tin over nickel

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Designer's Kit:

Kit	Values	Price
C463	41 (3 of each)	$160.00

Specifications

Electrical specifications at 25°C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (µH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (µH) 5	Turns Ratio
MSD1260-472MLD	4.7	20	0.036	500	0.20	1 : 1
MSD1260-562MLD	5.6	20	0.040	500	0.20	1 : 1
MSD1260-682MLD	6.8	20	0.048	500	0.24	1 : 1
MSD1260-822MLD	8.2	20	0.052	500	0.25	1 : 1
MSD1260-103MLD	10	20	0.060	500	0.26	1 : 1
MSD1260-123MLD	12	20	0.074	500	0.28	1 : 1
MSD1260-153MLD	15	20	0.085	500	0.32	1 : 1
MSD1260-183MLD	18	20	0.097	500	0.40	1 : 1
MSD1260-223MLD	22	20	0.12	500	0.68	1 : 1
MSD1260-273MLD	27	20	0.12	500	0.50	1 : 1
MSD1260-333MLD	33	20	0.13	500	0.65	1 : 1
MSD1260-393MLD	39	20	0.14	500	1.1	1 : 1
MSD1260-473MLD	47	20	0.17	500	0.80	1 : 1
MSD1260-563MLD	56	20	0.20	500	0.75	1 : 1
MSD1260-683MLD	68	20	0.22	500	0.57	1 : 1
MSD1260-823MLD	82	20	0.27	500	1.5	1 : 1
MSD1260-104MLD	100	20	0.32	500	1.4	1 : 1
MSD1260-124KLD	120	10	0.42	500	1.3	1 : 1
MSD1260-154KLD	150	10	0.48	500	1.5	1 : 1
MSD1260-184KLD	180	10	0.54	500	1.8	1 : 1
MSD1260-224KLD	220	10	0.69	500	1.6	1 : 1
MSD1260-274KLD	270	10	0.81	500	2.2	1 : 1
MSD1260-334KLD	330	10	1.1	500	2.4	1 : 1
MSD1260-394KLD	390	10	1.2	500	3.7	1 : 1
MSD1260-474KLD	470	10	1.6	500	2.9	1 : 1
MSD1260-564KLD	560	10	1.8	500	2.6	1 : 1
MSD1260-684KLD	680	10	2.1	500	5.8	1 : 1
MSD1260-824KLD	820	10	2.7	500	2.9	1 : 1
MSD1260-105KLD	1000	10	3.1	500	4.3	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (µH) 5	Isat (A) 6	Irms (A)
Part number 1 (Hover for schematics)	Inductance (µH) 2	Tolerance (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (µH) 5	Isat (A) 6	both windings 7	one winding 8
MSD1260-472MLD	4.7	20	0.036	32.0	0.98	0.20	10.3	3.2	4.5
MSD1260-562MLD	5.6	20	0.040	31.0	0.98	0.20	9.7	3.0	4.2
MSD1260-682MLD	6.8	20	0.048	28.0	0.98	0.24	9.2	2.8	3.9
MSD1260-822MLD	8.2	20	0.052	25.0	0.98	0.25	8.6	2.6	3.7
MSD1260-103MLD	10	20	0.060	22.0	0.99	0.26	7.4	2.5	3.5
MSD1260-123MLD	12	20	0.074	21.0	0.99	0.28	6.9	2.2	3.1
MSD1260-153MLD	15	20	0.085	17.6	0.99	0.32	6.1	2.1	2.9
MSD1260-183MLD	18	20	0.097	17.0	0.99	0.40	5.3	1.9	2.7
MSD1260-223MLD	22	20	0.12	15.0	0.98	0.68	5.0	1.8	2.5
MSD1260-273MLD	27	20	0.12	13.6	0.99	0.50	4.7	1.7	2.4
MSD1260-333MLD	33	20	0.13	12.7	0.99	0.65	4.2	1.6	2.3
MSD1260-393MLD	39	20	0.14	11.7	0.99	1.1	3.8	1.6	2.3
MSD1260-473MLD	47	20	0.17	8.7	0.99	0.80	3.3	1.4	2.0
MSD1260-563MLD	56	20	0.20	7.6	0.99	0.75	3.1	1.4	1.9
MSD1260-683MLD	68	20	0.22	6.1	>0.99	0.57	2.8	1.3	1.8
MSD1260-823MLD	82	20	0.27	5.3	0.99	1.5	2.6	1.2	1.6
MSD1260-104MLD	100	20	0.32	5.0	0.99	1.4	2.2	1.1	1.5
MSD1260-124KLD	120	10	0.42	4.4	0.99	1.3	2.1	0.93	1.3
MSD1260-154KLD	150	10	0.48	4.0	0.99	1.5	1.8	0.87	1.2
MSD1260-184KLD	180	10	0.54	3.6	0.99	1.8	1.6	0.82	1.2
MSD1260-224KLD	220	10	0.69	3.2	>0.99	1.6	1.5	0.72	1.0
MSD1260-274KLD	270	10	0.81	2.8	>0.99	2.2	1.4	0.67	0.95
MSD1260-334KLD	330	10	1.1	2.5	>0.99	2.4	1.3	0.57	0.81
MSD1260-394KLD	390	10	1.2	2.3	>0.99	3.7	1.2	0.55	0.77
MSD1260-474KLD	470	10	1.6	2.1	>0.99	2.9	1.0	0.48	0.67
MSD1260-564KLD	560	10	1.8	2.0	>0.99	2.6	0.95	0.45	0.63
MSD1260-684KLD	680	10	2.1	1.8	>0.99	5.8	0.88	0.42	0.59
MSD1260-824KLD	820	10	2.7	1.5	>0.99	2.9	0.79	0.37	0.52
MSD1260-105KLD	1000	10	3.1	1.2	>0.99	4.3	0.69	0.34	0.49

Notes

When ordering, please specify termination and packaging codes: e.g. MSD1260-105KLD
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value.
DCR is for each winding. When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value.
SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
Leakage Inductance is for L1 and is measured with L2 shorted.
Isat: DC current, at which the inductance drops 30% (typ) from its value without current. It is the sum of the current flowing in both windings.
Irms, both windings: Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.
Irms, one winding: Current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.

Termination:

L = RoHS compliant matte tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

D = 13" reel, machine-ready
EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel
Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C with (40°C rise) Irms current.

Storage temperature range:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise).

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

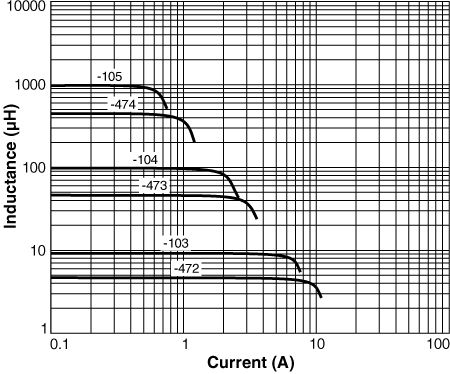

Inductance vs. Current

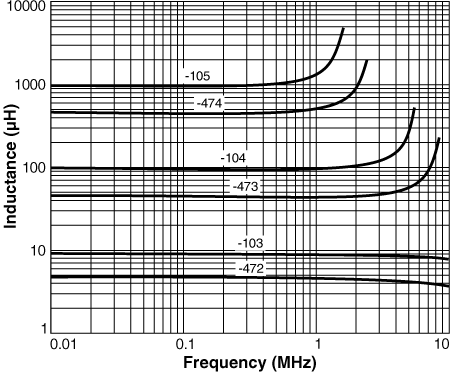

Inductance vs. Frequency

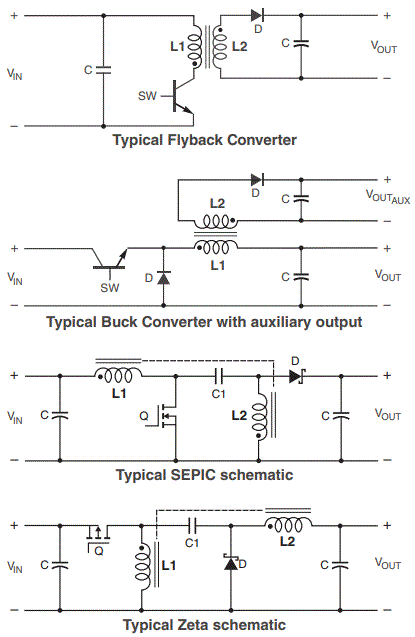

Schematics

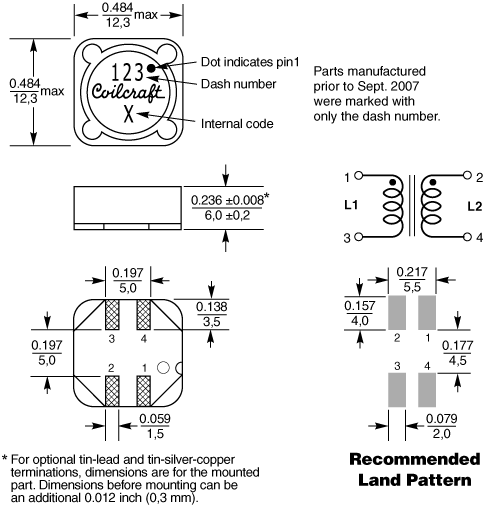

Physical characteristics

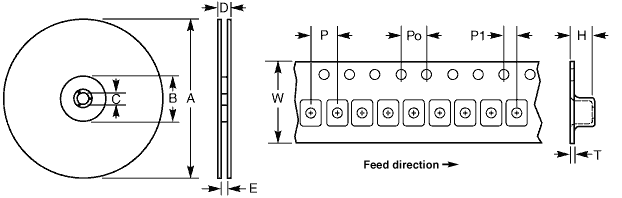

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,9	0,5

General specification

Core Material:

Ferrite

Weight:

2.8 – 3.2 g

Packaging:

500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth

Winding to Winding Isolation:

500 Vrms, one minute

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

MSD1260 Series

Shielded Coupled Power Inductors
