3D Model Datasheet

DW3316 Series

Coupled Inductors

2 balanced coupled inductors in a single package
Increases efficiency and lowers component count
Optimized for xDSL filtering applications
Can also be used as common mode choke or 1:1 transformer
RoHS Compliant. 260°C compatible. Gold over nickel over phos bronze terminals.
COTS Plus tin-silver-copper and tin-lead terminations available
Custom versions are available

Buy Now:

Part number

Find my part

Count	Unit price
1	$2.79
125	$2.39
250	$2.08
500	$1.61
1000	$1.28
2500	$1.08
5000	$0.86

For high volume or non-stock items, request a quote.

Termination

L = Gold over nickel

Packaging

D = 13" machine-ready reel

Tolerance

M = 20%

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (mH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Turns Ratio	Isat (mA) 5
Part number 1	Inductance (mH) 2 (Tolerance: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Turns Ratio	Isat (mA) 5
DW3316-155ML_	1.5	10.8	1.7	1 : 1	300
DW3316-275ML_	2.7	18.0	1.3	1 : 1	230
DW3316-335ML_	3.3	20.0	1.1	1 : 1	180
DW3316-395ML_	3.9	23.0	0.97	1 : 1	160
DW3316-475ML_	4.7	26.0	0.85	1 : 1	160
DW3316-685ML_	6.8	42.0	0.69	1 : 1	150

Notes

When ordering, please specify termination and packaging codes: e.g. DW3316-685MLD
Inductance is per winding, tested at 10 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer.
Isat: DC current at which the inductance drops 10% (typ.) from its value without current.

Termination:

L = Gold over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

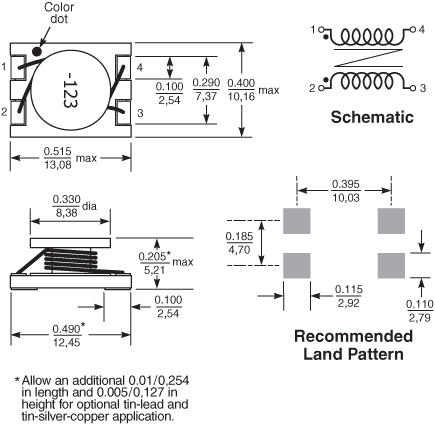

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	330	100	13	30,4	24,4	24	16	4	2	5,5	0,36

General specification

Core Material:

Ferrite

Weight:

1.13 – 1.34 g

Packaging:

750 per 13″ reel Plastic tape: 24 mm wide, 0.36 mm thick, 16 mm pocket spacing, 5.5 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
