SBU9 Series

Common Mode Chokes

Low profile (9.2 mm high), surface mount design
Ideal for switching power supplies
Eliminates most line conducted common mode noise
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. 260°C compatible. Tin-silver over copper terminations.

Buy Now:

Part number

Find my part

Count	Unit price
1	$2.44
350	$1.97
700	$1.35
1400	$1.04
2800	$0.91
5000	$0.83

For high volume or non-stock items, request a quote.

Termination

L = Tin-silver

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Lines	Common mode peak impedance (kΩ)	Inductance min (mH) 2	Irms (A) 3	DCR max (Ω) 4	Isolation Voltage (Vrms) 5
Part number 1	Lines	Common mode peak impedance (kΩ)	Inductance min (mH) 2	Irms (A) 3	DCR max (Ω) 4	Isolation Voltage (Vrms) 5
SBU9-103R25L_	2	94.40 @ 230 kHz	10	0.25	2.5	1500
SBU9-2820R5L_	2	26.31 @ 570 kHz	2.8	0.50	0.70	1500
SBU9-1320R7L_	2	12.68 @ 900 kHz	1.3	0.70	0.38	1500
SBU9-6011R0L_	2	6.66 @ 1300 kHz	0.60	1.0	0.20	1500

Notes

When ordering, please specify packaging code: e.g. SBU9-6011R0LC
Inductance tested at 1 kHz, 1 Vrms, and it is measured on Agilent/HP 4263B LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

Termination:

RoHS compliant tin-silver over copper.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +125°C

Storage temperature range:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

Attenuation (Ref 50 Ohms)

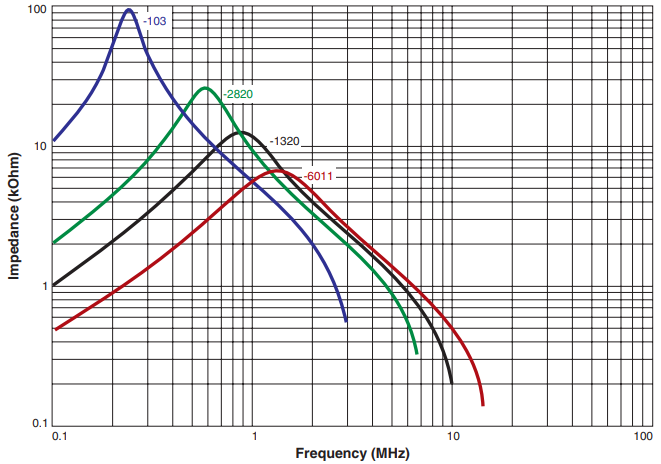

Impedance

Schematics

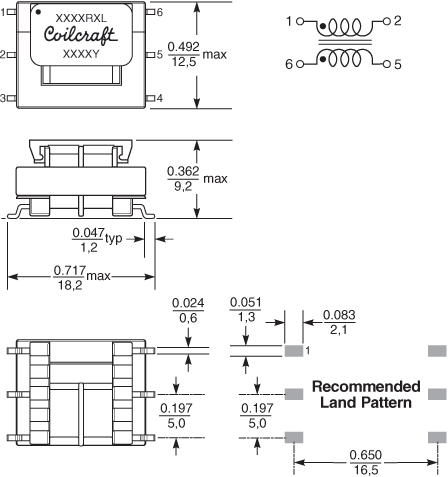

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	178/330	60/100	13	38,4	32,4	32	20	4	2	8,5	0,5

General specification

Core Material:

Ferrite

Weight:

2.4 – 2.7 g

Packaging:

350/13″ reel; Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 8.5 mm pocket depth

Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
