Close up of G6252
3D Model Datasheet

G6252-AL

Common Mode Choke

RoHS compliant
  • Low cost and high performance choke coil
  • UL1446 Class B (130°C) Insulation System (UL File E83628)
  • Designed to reduce AC line conducted common mode noise produced by switching power supplies.
Refer to Designing Common Mode Filters for design guidance.

Buy Now:
Find my part
Count Unit price
1 $6.13
50 $5.25
100 $4.30
250 $3.51
500 $3.06
1000 $2.58
2500 $2.35
5000 $2.16

For high volume or non-stock items, request a quote.

. in stock, ready to ship today.
Request a Sample:
Find my part
Designer's Kit:
Kit Values Price
P402 8 (1 - 2 of each) $100.00

Specifications

Electrical specifications at 25°C.

Part number Lines Common mode
peak impedance (kΩ) 		Inductance
min (mH) 1 		Irms (mA) 2 DCR max (Ω) 3 Isolation
Voltage (Vrms) 4
G6252-AL 2 700.8 @ 0.21 MHz 10.5 300 2.1 2500
Notes
  1. Inductance is per winding.
  2. Based on 300 circular mils/Amp. Temperature rise is less than 10°C.
  3. DCR is per winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. Interwinding isolation (hipot) measured for one minute.
Environmental
Environmental:
RoHS compliant
Ambient temperature range:
−40°C to +85°C
Storage temperature range:
Component: −40°C to +85°C
Packaging trays: −40°C to +80°C
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
See FIT/MTBF Calculations

Performance curves

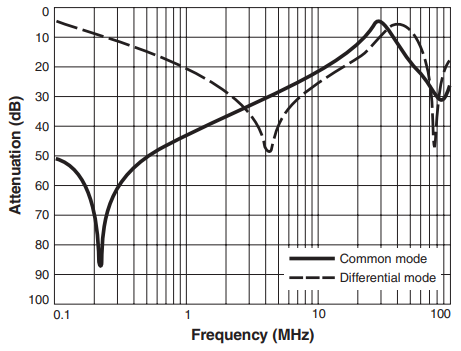

Attenuation (Ref: 50 Ohms)

Attenuation (Ref: 50 Ohms)

Impedance vs Frequency

Impedance vs Frequency

Schematics

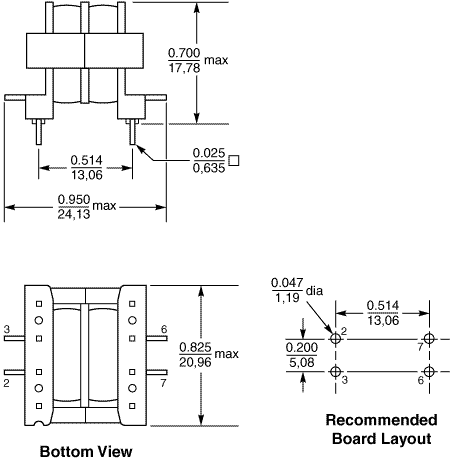

Physical characteristics


Typical Application


General specification

Weight:
9.5 g
Packaging:
49 parts per tray

Related product series

BU Series

CD1479-AL Common Mode Choke

CD1480-BL Common Mode Choke

CMH, CMV Series

CE1755-AL Common Mode Choke

CE1759-AL Common Mode Choke

CE2439L Common Mode Choke

CF2638L Common Mode Choke

LPD5030V Series

CF2805-AL Common Mode Choke

CF3094-AL Common Mode Choke

SBU9 Series

CG3333-AL Common Mode Choke

CG3528-AL Common Mode Choke

Toroidal Common Mode Line Chokes

CG3885-AL Common Mode Choke

CH4659-AL Common Mode Choke

CMT Series

CJ5094-CL Common Mode Choke

CM6518-AL Common Mode Choke

CR7915-AL Common Mode Choke

Common Mode Line Chokes

CV9172-AL SM Common Mode Choke

Common Mode Line Chokes

Related product families

Cx - Up to 10 A

  • Suppression of high frequency common mode noise up to 100 MHz
  • Up to 10 A rms
  • Up to 1500 Vrms Isolation (hipot)
