3D Model Datasheet

Isolation Transformer

Developed to work with Texas Instruments SN6501 Transformer Driver for Isolated Power Supplies
Mounted on the Texas Instruments SN6501xEVM Evaluation Modules used to analyze the SN6501 oscillator/power driver
Center tapped primary and secondary
Designed to meet UL/CSA/IEC 60950 Basic Insulation with 1.5 mm creepage and clearance.

Jetzt kaufen:

Anzahl	Einzelpreis
1	$4,93
300	$3,97
600	$2,38
1200	$1,86
2400	$1,59
5000	$1,46

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Packaging

D = 13" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Typische Anwendung

Funktioniert mit Texas Instruments SN6501

Eingangsspannung	Primärspannung	Sekundärspannung	Leistung 1
3 V — 5,5 V	3,3 V	5 V	2 W

Technische Daten

Electrical specifications at 25°C.

Teilenummer 2 (Hover for schematics)	Induktivität min (µH) 3	DCR max (Ω) 4		Streu- induktivitätmax (µH) 5	Windungsverhältnis	Volt-Zeit- Produkt (V-µs) 6	Isolations- spannung (Vrms) 7
Teilenummer 2 (Hover for schematics)	Induktivität min (µH) 3	Pri	Sec	Streu- induktivitätmax (µH) 5	Pri : Sec	Volt-Zeit- Produkt (V-µs) 6	Isolations- spannung (Vrms) 7
MA5632-AL_	17,8	0,086	0,219	0,464	1 : 2	17,6	2500

Hinweise

Calculated output power based on 150 kHz operating frequency. Power varies depending on application.
When ordering, please specify termination and packaging codes: e.g. MA5632-ALD
Inductance is tested between pins 4 and 3 at 500 kHz, 0.5 Vrms, 0 Adc.
DCR is per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary with both windings connected in series and with the secondary windings shorted.
Based on Bsat of the core at 25°C and number of turns on winding 4-3.
2500 Vrms, one minute primary to secondary isolation.

Anschlüsse:

L = RoHS compliant tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform

Umgebungstemperaturbereich:

–40°C to +125°C

Lagertemperaturbereich:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Pläne/Diagramme

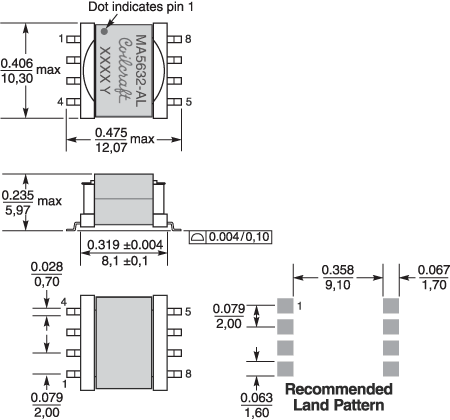

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	330	100	13	30,4	24,4	24	16	4	2	6,1	0,37

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.98 g

Verpackung:

600/13″ reel Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
