ZXC Series

Z-Axis RFID Transponder Coils

Our ZXC Series of compact z-axis coil provides a 3rd dimension ID with other X-Y RFID coils. Values range from 2.48 mH to 14.8 mH. Inductance is specified at 125 kHz and all come in a ±5% tolerance.

Provides 3rd dimension ID, designed to be used with any of our other RFID coils
Only 10 mm square and 2.2 mm high
Four pads for excellent board adhesion

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,36
500	$2,03
1000	$1,58
2500	$1,36
5000	$1,25

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

J = 5%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (mH) at 125 kHz 2 (Toleranz: ±5%)	Q min	Leseentfernung (inch/cm) 3	Empfindlichkeit (mV/µT) 4	Abgleich- Kondensator (pF) 5	DCR max (Ω) 6	SRF typ (kHz) 7
ZXC-255XJL_	2,48	57	32,99 / 83,8	9,75	654	37,0	1975
ZXC-495XJL_	4,90	64	32,99 / 83,8	18	331	43,0	1370
ZXC-715XJL_	7,10	65	30,98 / 78,7	25	228	62,0	1220
ZXC-116XJL_	11,40	60	30,98 / 78,7	50	142	110	990
ZXC-156XJL_	14,80	55	30,98 / 78,7	77	110	160	815

Hinweise

When ordering, please specify termination and packaging codes: e.g. ZXC-156XJLD
Inductance and Q measured using Agilent/HP 4192A impedance analyzer at 125 kHz. For recommended procedures, contact Coilcraft.
Read distance measured using the KEELOQÂ® Transponder Evaluation Kit part number DM303005 from Microchip. Distance was recorded as the voltage across the resonant circuit dropped below 10mV.
Sensitivity measured in accordance with Coilcraft application note Measuring Sensitivity of Transponder Coils.
Matching capacitor value required for parallel resonant circuit operating at 125 kHz.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer. Details

Refer to Application Notes Transponder Coils in an RFID System and Measuring Sensitivity of Transponder Coils for additional information.

Anschlüsse:

L = RoHS compliant matte tin over nickel over phos bronze
Special order, added cost: T = RoHS tin-silver-copper (95.5/4/0.5) or
S = non-RoHS tin-lead (63/37).

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform

Umgebungstemperaturbereich:

−40°C to +125°C

Lagertemperaturbereich:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

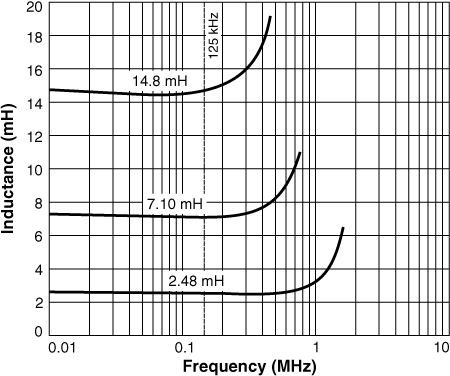

L vs Frequency

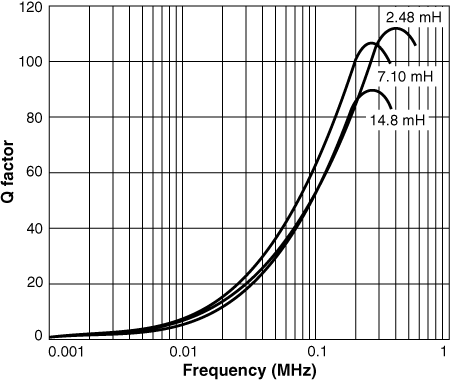

Q vs Frequency

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2000*	178/330	60/100	13	30,4	24,4	24	8	4	2	2,24	0,3

* Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.53 - 0.56 g

Temperature coefficient of inductance:

+25 to +200 ppm/°C

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 â€“ 40 seconds), allowing parts to cool to room temperature between.

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested with pure water or alcohol only. Details.
