1008CS (2520)

Ceramic Chip Inductors

Our 1008CS is the original 1008-size wirewound chip inductor series and features high Q factors vs non-wirewound inductors of the same size. 1008CS Series is available in a wide range of values and high SRF – up to 4.1 GHz.

Inductance values from 10 nH to 8200 nH (tolerances as low as 1%)
Exceptionally high Q compared to non-wirewound inductors, especially at high frequencies
Ceramic construction for highest possible self resonance (as high as 4100 MHz)
Excellent current carrying capacity for their size
Defense Supply Center CID A-A-59697
AEC-Q200 Grade 1 (−40°C to +125°C)

Need parts for space, military or other critical applications?
See Coilcraft AE413RAA Series | See Coilcraft AR413RAA Series | See Coilcraft ML413RAA Series | See Coilcraft MS413RAA Series | See Coilcraft ST413RAA Series

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$0,91
200	$0,73
500	$0,55
1000	$0,39
2000	$0,26
4000	$0,22
10000	$0,16

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

J = 5%

G = 2%

Termination

R = Matte tin over nickel over silver platinum-glass frit

E = Silver-palladium-platinum-glass frit

L = Not halogen-free. Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Designer-Kits:

Kit	Werte	Preis
C300	40 (10 of each)	$100,00
C300-2	40 (10 of each)	$120,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (nH) 2	Toleranz (%) 3	Q min 4	SRF min (MHz) 5	DCR max (Ω) 6	Irms (mA) 7	Farbkodierung 8
Teilenummer 1	Induktivität (nH) 2	Toleranz (%) 3	Q min 4	SRF min (MHz) 5	DCR max (Ω) 6	Irms (mA) 7	Farbkodierung 8
1008CS-100X_R_	10 @ 50,0 MHz	2,5	50 @ 500 MHz	4100	0,080	1000	Black
1008CS-120X_R_	12 @ 50,0 MHz	2,5	50 @ 500 MHz	3300	0,090	1000	Red
1008CS-150X_R_	15 @ 50,0 MHz	2,5	50 @ 500 MHz	2500	0,10	1000	Orange
1008CS-180X_R_	18 @ 50,0 MHz	2,5	50 @ 350 MHz	2500	0,11	1000	Yellow
1008CS-220X_R_	22 @ 50,0 MHz	1,2,5	55 @ 350 MHz	2400	0,12	1000	Blue
1008CS-270X_R_	27 @ 50,0 MHz	2,5	55 @ 350 MHz	1600	0,13	1000	Black
1008CS-330X_R_	33 @ 50,0 MHz	2,5	60 @ 350 MHz	1600	0,14	1000	Orange
1008CS-390X_R_	39 @ 50,0 MHz	2,5	60 @ 350 MHz	1500	0,15	1000	Violet
1008CS-470X_R_	47 @ 50,0 MHz	1,2,5	65 @ 350 MHz	1500	0,16	1000	Red
1008CS-560X_R_	56 @ 50,0 MHz	1,2,5	65 @ 350 MHz	1300	0,18	1000	Yellow
1008CS-680X_R_	68 @ 50,0 MHz	1,2,5	65 @ 350 MHz	1300	0,20	1000	Gray
1008CS-820X_R_	82 @ 50,0 MHz	1,2,5	60 @ 350 MHz	1000	0,22	1000	Red
1008CS-101X_R_	100 @ 25,0 MHz	1,2,5	60 @ 350 MHz	1000	0,56	650	Violet
1008CS-121X_R_	120 @ 25,0 MHz	1,2,5	60 @ 350 MHz	950	0,63	650	White
1008CS-151X_R_	150 @ 25,0 MHz	1,2,5	45 @ 100 MHz	850	0,70	580	Red
1008CS-181X_R_	180 @ 25,0 MHz	1,2,5	45 @ 100 MHz	750	0,77	620	Orange
1008CS-221X_R_	220 @ 25,0 MHz	1,2,5	45 @ 100 MHz	700	0,84	500	Green
1008CS-271X_R_	270 @ 25,0 MHz	1,2,5	45 @ 100 MHz	600	0,91	500	White
1008CS-331X_R_	330 @ 25,0 MHz	1,2,5	45 @ 100 MHz	570	1,1	450	Orange
1008CS-391X_R_	390 @ 25,0 MHz	1,2,5	45 @ 100 MHz	500	1,1	470	Blue
1008CS-471X_R_	470 @ 25,0 MHz	1,2,5	45 @ 100 MHz	450	1,2	470	Black
1008CS-561X_R_	560 @ 25,0 MHz	1,2,5	45 @ 100 MHz	415	1,3	400	Green
1008CS-621X_R_	620 @ 25,0 MHz	1,2,5	45 @ 100 MHz	375	1,4	300	Blue
1008CS-681X_R_	680 @ 25,0 MHz	1,2,5	45 @ 100 MHz	375	1,5	400	Gray
1008CS-751X_R_	750 @ 25,0 MHz	1,2,5	45 @ 100 MHz	360	1,5	360	Black
1008CS-821X_R_	820 @ 25,0 MHz	1,2,5	45 @ 100 MHz	350	1,6	400	Brown
1008CS-911X_R_	910 @ 25,0 MHz	1,2,5	35 @ 50,0 MHz	320	1,7	380	Red
1008CS-102X_R_	1000 @ 25,0 MHz	1,2,5	35 @ 50,0 MHz	290	1,8	370	Yellow
1008CS-122X_R_	1200 @ 7,9 MHz	2,5	35 @ 50,0 MHz	250	2,0	310	Blue
1008CS-132X_R_	1300 @ 7,9 MHz	2,5	25 @ 50,0 MHz	200	2,3	310	Red
1008CS-152X_R_	1500 @ 7,9 MHz	2,5	28 @ 50,0 MHz	200	2,3	330	Gray
1008CS-182X_R_	1800 @ 7,9 MHz	2,5	28 @ 50,0 MHz	160	2,6	300	Brown
1008CS-222X_R_	2200 @ 7,9 MHz	2,5	28 @ 50,0 MHz	160	2,8	280	Orange
1008CS-272X_R_	2700 @ 7,9 MHz	2,5	22 @ 25,0 MHz	140	3,2	290	Green
1008CS-332X_R_	3300 @ 7,9 MHz	2,5	22 @ 25,0 MHz	110	3,4	290	Violet
1008CS-392X_R_	3900 @ 7,9 MHz	2,5	20 @ 25,0 MHz	100	3,6	260	Gray
1008CS-472X_R_	4700 @ 7,9 MHz	2,5	20 @ 25,0 MHz	90,0	4,0	260	White
1008CS-562XJR_	5600 @ 7,9 MHz	5	16 @ 7,9 MHz	20,0	4,0	240	Black
1008CS-682XJR_	6800 @ 7,9 MHz	5	18 @ 7,9 MHz	40,0	4,9	200	Brown
1008CS-822XJR_	8200 @ 2,5 MHz	5	18 @ 7,9 MHz	90,0	6,0	170	Red

Hinweise

When ordering, please specify tolerance, termination and packaging codes: e.g. 1008CS-472XGRC
Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
SRF measured using an Aglilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Current production parts are marked with one dot. Prior production parts were marked with three dots. Single color dots are not unique identifiers and correspond to multiple inductance values. Part marking does not indicate polarity. Details

Toleranz:

F = 1%, G = 2%, J = 5% (Table above shows stock tolerances in bold.)

Anschlüsse:

R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with Irms current

Lagertemperaturbereich:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+140°C (ambient + temp rise).

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

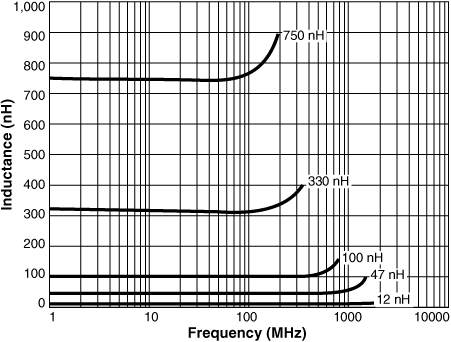

L vs Frequency

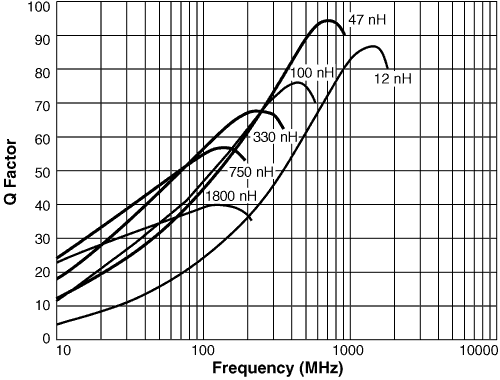

Q vs Frequency

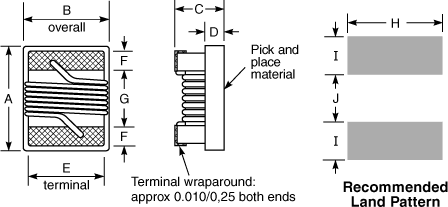

Physikalische Eigenschaften

A max	B max	C max	D ref	E	F	G	H	I	J
0.115	0.110	0.080	0.020	0.080	0.020	0.060	0.100	0.040	0.050	inches
2,92	2,79	2,03	0,51	2,03	0,51	1,52	2,54	1,02	1,27	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	2,0	0,3

*Special order

Allgemeine Spezifikation

Kernmaterial:

Ceramic

Gewicht:

29.6 – 37.4 mg

Verpackung:

2000 per 7″ reel; 7500 per 13″ reel. Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing, 2.0 mm pocket depth

Temperature coefficient of inductance:

+25 to +125 ppm/°C

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
