0201DS (0603)

Miniature Ceramic Chip Inductors

These are new halogen-free parts, recommended for new designs. They are identical in form, fit and function to the old parts and offer 20 additional values. Existing customers will be supported. (View old data sheet here.)

Our 0201DS Series inductors are the world's smallest EIA size wirewound inductors, yet they have high Q values - up to 64 at 1.7 GHz! They also feature self-resonant frequencies (SRF) as high as 24 GHz. Excellent for narrowband isolation and filtering in mobile applications.

0201 size – World's smallest wirewound inductors
52 inductance values from 0.5 to 14 nH
High Q values – up to 64 at 1.7 GHz!
Exceptionally high self-resonant frequencies – greater than 24 GHz

Need parts for space, military or other critical applications?
See Coilcraft AR145RAN Series | See Coilcraft ST145RAN Series

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$1,22
200	$0,86
500	$0,60
1000	$0,48
2000	$0,41
4000	$0,35
10000	$0,30

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

K = 10%

Termination

E = Matte tin over nickel over molybdenum-manganese

Packaging

W = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Designer-Kits:

Kit	Werte	Preis
C425	52 (20 of each)	$160,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (nH) 2	Toleranz (%) 3	900 MHz		1.7 GHz		SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (mA) 7
Teilenummer 1	Induktivität (nH) 2	Toleranz (%) 3	L typ	Q typ 4	L typ	Q typ 4	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (mA) 7
0201DS-0N5XKE_	0,5	10	0,5	29	0,49	43	23,5	20,0	1250
0201DS-0N6XKE_	0,6	10	0,58	31	0,58	51	24,5	30,0	1000
0201DS-1N2XJE_	1,2	5	1,16	42	1,16	60	17,9	42,0	870
0201DS-1N3XJE_	1,3	5	1,24	38	1,24	57	17,6	48,0	820
0201DS-1N4XJE_	1,4	5	1,35	27	1,34	37	17,0	80,0	630
0201DS-1N5XJE_	1,5	5	1,47	28	1,47	40	17,0	90,0	600
0201DS-2N2XJE_	2,2	5	2,23	32	2,23	54	16,7	70,0	700
0201DS-2N3XJE_	2,3	5	2,28	45	2,28	64	16,5	70,0	670
0201DS-2N4XJE_	2,4	5	2,36	35	2,36	53	13,0	82,0	620
0201DS-2N5XJE_	2,5	5	2,5	31	2,49	44	12,5	165	440
0201DS-3N3XJE_	3,3	5	3,31	42	3,32	62	12,8	80,0	630
0201DS-3N4XJE_	3,4	3,5	3,38	42	3,42	62	12,7	80,0	630
0201DS-3N5XJE_	3,5	3,5	3,41	44	3,45	64	12,4	80,0	630
0201DS-3N6XJE_	3,6	3,5	3,53	40	3,57	61	12,5	105	550
0201DS-3N7XJE_	3,7	3,5	3,65	39	3,66	58	10,6	105	550
0201DS-3N8XJE_	3,8	3,5	3,81	38	3,81	60	10,2	180	420
0201DS-3N9XJE_	3,9	3,5	3,89	35	3,89	50	11,2	240	360
0201DS-4N8XJE_	4,8	3,5	4,83	34	4,83	50	11,0	96,0	570
0201DS-4N9XJE_	4,9	3,5	4,72	33	4,71	52	11,7	130	510
0201DS-5N0XJE_	5,0	3,5	4,9	34	4,9	54	11,5	130	510
0201DS-5N1XJE_	5,1	3,5	4,96	35	4,96	54	11,1	130	510
0201DS-5N2XJE_	5,2	3,5	5,21	36	5,21	55	10,0	170	430
0201DS-5N3XJE_	5,3	3,5	5,15	36	5,15	57	10,6	130	510
0201DS-5N4XJE_	5,4	3,5	5,3	36	5,31	56	10,2	130	510
0201DS-5N5XJE_	5,5	3,5	5,49	35	5,49	50	9,5	285	330
0201DS-6N7XJE_	6,7	3,5	6,71	40	6,72	59	6,8	150	460
0201DS-6N8XJE_	6,8	3,5	6,52	35	6,52	52	9,5	150	460
0201DS-6N9XJE_	6,9	3,5	6,7	36	6,73	54	9,3	150	460
0201DS-7N0XJE_	7,0	3,5	6,97	39	6,97	60	6,7	210	390
0201DS-7N1XJE_	7,1	3,5	6,91	36	6,9	54	9,5	250	390
0201DS-7N2XJE_	7,2	3,5	6,97	36	6,97	55	9,4	250	390
0201DS-7N3XJE_	7,3	3,5	7,05	37	7,04	56	9,3	250	390
0201DS-7N4XJE_	7,4	3,5	7,29	40	7,3	61	9,1	250	390
0201DS-7N5XJE_	7,5	3,5	7,44	36	7,46	50	6,8	340	300
0201DS-7N6XJE_	7,6	3,5	7,32	39	7,31	59	9,3	300	340
0201DS-7N7XJE_	7,7	3,5	7,38	39	7,37	60	9,2	300	340
0201DS-7N8XJE_	7,8	3,5	7,49	38	7,49	58	9,2	300	340
0201DS-7N9XJE_	7,9	3,5	7,56	38	7,56	58	9,1	300	340
0201DS-8N0XJE_	8,0	3,5	7,65	35	7,68	53	9,2	300	340
0201DS-8N1XJE_	8,1	3,5	7,74	37	7,75	59	9,1	300	340
0201DS-8N2XJE_	8,2	3,5	8,14	37	8,22	53	6,4	270	340
0201DS-8N3XJE_	8,3	3,5	7,93	36	7,95	57	8,9	300	340
0201DS-8N4XJE_	8,4	3,5	8,03	35	8,04	55	8,9	350	300
0201DS-8N5XJE_	8,5	3,5	8,11	35	8,13	55	8,9	350	300
0201DS-8N7XJE_	8,7	3,5	8,68	38	8,74	59	6,3	350	300
0201DS-9N0XJE_	9,0	3,5	9,02	42	9,04	63	6,4	350	300
0201DS-9N4XJE_	9,4	3,5	9,38	36	9,39	51	6,4	400	280
0201DS-9N6XJE_	9,6	3,5	9,62	38	9,64	53	6,2	400	280
0201DS-11NXJE_	11,0	3,5	11,11	40	11,15	62	5,7	400	280
0201DS-12NXJE_	12,0	3,5	12,15	39	12,2	56	5,6	360	300
0201DS-13NXJE_	13,0	3,5	13,12	38	13,22	52	6,7	440	270
0201DS-14NXJE_	14,0	3,5	14,13	37	14,37	51	5,1	440	270

Hinweise

When ordering, please specify tolerance and packaging codes: e.g. 0201DS-14NXJEW
Inductance measured at 250 MHz using Coilcraft SMD-F test fixture in Agilent/HP 4286 impedance analyzer with Coilcraft-provided correlation pieces.
Tolerance: H = 3%, J = 5%, K = 10%
Q measured using Agilent/HP 4291A with Agilent/HP 16197 test fixture.
SRF measured using Agilent/HP 8722ES network analyzer and a test fixture with a 0.010 inch (0.254 mm) air gap.
DCR measured at 25°C on a micro-ohmmeter and Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

Anschlüsse:

Matte tin over nickel over silver

Verpackung:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

−40°C to +125°C with Irms current.

Lagertemperaturbereich:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

Maximale Bauteiltemperatur:

+140°C (Ambient + temperature rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

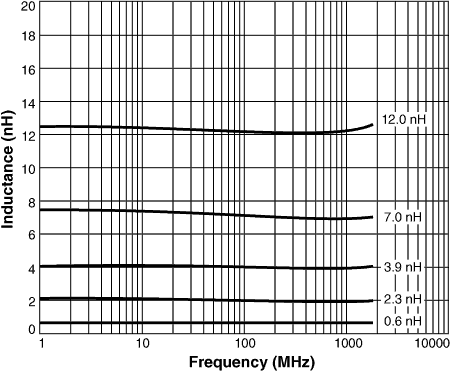

L vs Frequency

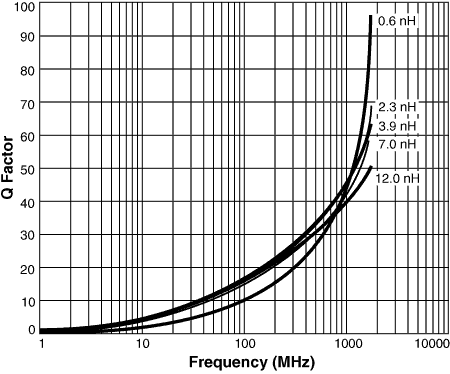

Q vs Frequency

Physikalische Eigenschaften

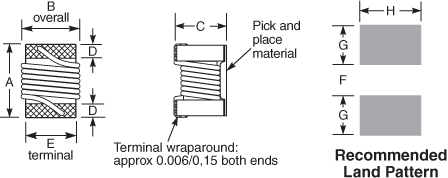

A max	B max	C max	D	E	F	G	H
0.023	0.018	0.0177	0.004	0.015	0.009	0.013	0.018	inches
0,58	0,46	0,45	0,10	0,38	0,23	0,33	0,46	mm

Gurt/Rolle-Spezifikationen

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	2	4	2	NA	0,6

Allgemeine Spezifikation

Kernmaterial:

Ceramic

Gewicht:

0.14 - 0.23 mg

Verpackung:

2000 per 7″ reel. Paper tape: 8 mm wide, 0.6 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +125 ppm/°C

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
