SD43 Series

Surface Mount Power Inductors

RoHS-konform
Coilcraft SD43 Series unshielded surface-mount power inductors are mechanically rugged and affordably priced. They offer high current ratings and low DC resistance for  greater efficiency.
  • Open magnetic path design
  • Cost-effective solution
  • Ferrite core construction
  • High saturation current ratings and low DCR

Jetzt kaufen:
Anzahl Einzelpreis
1 $1,03
250 $0,83
500 $0,51
1000 $0,40
2500 $0,34
5000 $0,31

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 Induktivität (µH) 2 Toleranz (%) DCR max (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
10% drop 20% drop 30% drop 20°C rise 40°C rise
SD43-102ML_ 1,0 20 33,0 100 5,5 6,1 6,5 3,4 5,8
SD43-142ML_ 1,4 20 38,0 90,0 4,8 5,5 5,9 3,1 5,8
SD43-182ML_ 1,8 20 42,0 80,0 4,1 4,6 5,1 2,7 4,6
SD43-222ML_ 2,2 20 47,0 65,0 3,6 4,1 4,4 2,3 3,8
SD43-272ML_ 2,7 20 52,0 60,0 3,4 3,8 4,1 2,2 3,7
SD43-332ML_ 3,3 20 58,0 50,0 2,9 3,3 3,5 2,1 3,3
SD43-392ML_ 3,9 20 76,0 47,0 2,6 3,0 3,2 1,9 3,0
SD43-472ML_ 4,7 20 94,0 45,0 2,4 2,8 3,0 1,9 2,9
SD43-562ML_ 5,6 20 101 40,0 2,2 2,5 2,7 1,6 2,8
SD43-682ML_ 6,8 20 110 35,0 2,0 2,3 2,5 1,5 2,5
SD43-822ML_ 8,2 20 132 30,0 1,8 2,1 2,2 1,4 2,2
SD43-103ML_ 10 20 182 28,0 1,7 2,0 2,1 1,3 2,2
SD43-123ML_ 12 20 210 24,0 1,5 1,8 1,9 1,1 1,8
SD43-153ML_ 15 20 235 22,0 1,3 1,6 1,7 1,0 1,7
SD43-183ML_ 18 20 338 19,0 1,3 1,4 1,6 0,89 1,5
SD43-223ML_ 22 20 378 17,0 1,2 1,3 1,4 0,85 1,4
SD43-273ML_ 27 20 522 16,0 1,0 1,1 1,3 0,73 1,1
SD43-333KL_ 33 10 540 14,0 0,90 1,1 1,1 0,62 0,90
SD43-393KL_ 39 10 587 13,0 0,84 0,97 1,1 0,61 0,90
SD43-473KL_ 47 10 844 12,0 0,77 0,87 0,93 0,53 0,86
SD43-563KL_ 56 10 937 11,0 0,72 0,80 0,86 0,51 0,70
SD43-683KL_ 68 10 1117 10,0 0,65 0,72 0,77 0,43 0,60
Hinweise
  1. When ordering, please specify packaging code: e.g. SD43-683KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4284A impedance analyzer or equivalent.
  3. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture. Details
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

  • RoHS compliant tin-silver-copper solder over tin over nickel over silver plating.

Verpackung:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2000 parts per full reel).
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform
Umgebungstemperaturbereich:
−40°C to +85°C with (40°C rise) Irms
Lagertemperaturbereich:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Maximale Bauteiltemperatur:
+125°C (Ambient + temperature rise)
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

Kennlinien

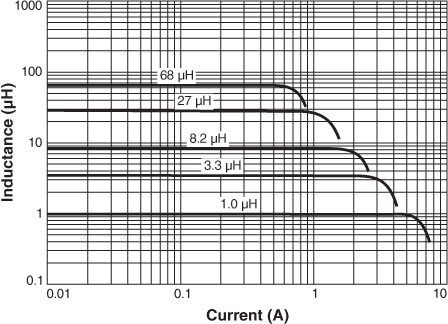

Inductance vs. Current

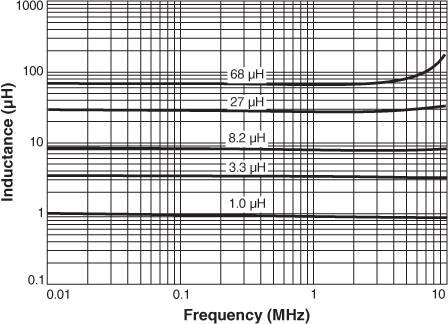

Inductance vs. Frequency

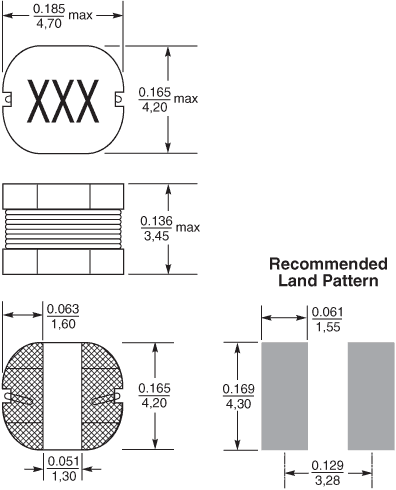

Physikalische Eigenschaften



Gurt/Rolle-Spezifikationen




Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_q.gif
500 2000* 178/330 60/100 13 18,4 12,4 12 8 4 2 3,4 0,35
* Special order


Allgemeine Spezifikation

Kernmaterial:
Ferrite
Gewicht:
0.17 – 0.20 g
Verpackung:
500/7″ reel; 2000/13″ reel; Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.4 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
