3D Model Datasheet

DS1608B-106

Name: DS1608B-106MLC
Brand: Coilcraft
SKU: DS1608B-106MLC
Price: 1.09 USD
Availability: InStock

DS1608B-106MLC

We will continue to manufacture and support the DS1608B indefinitely, however for new designs, we recommend the LPS4018, MSS7341 or MSS1038 as alternatives.These series are more cost effective and offer better current handling.

DS1608B LPS4018 MSS7341 MSS1038

Für weitere Informationen und Spezifikationen zum Bauteil.

Gehe zu Baureihe

Jetzt kaufen:

Anzahl	Einzelpreis
1	$1,35
750	$1,09
1500	$0,83
3000	$0,67
6000	$0,58

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

L = Gold over nickel over moly-manganese

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Designer-Kits:

Kit	Werte	Preis
C334	13 (3 of each)	$40,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1	Induktivität (mH) 2 (Toleranz: ±20%)	DCR max (Ω) 3	SRF typ (kHz)	Irms (mA) 4
Teilenummer 1	Induktivität (mH) 2 (Toleranz: ±20%)	DCR max (Ω) 3	SRF typ (kHz)	Irms (mA) 4	40°C rise
DS1608B-106ML_	10	74,0	1000	10

Hinweise

When ordering, please specify termination and packaging codes: e.g. DS1608B-105MLC
Inductance tested at 100 kHz, 0.1 Vrms.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 30°C temperature rise from 25°C ambient.This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

L = Gold over nickel over moly-manganese.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (2500 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform

Umgebungstemperaturbereich:

–40°C to +85°C with Irms current, +85°C to +115°C with derated current

Lagertemperaturbereich:

Component: −40°C to +115°C
Tape and reel packaging: −40°C to +80°C

Maximale Bauteiltemperatur:

+115°C (Ambient + temperature rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

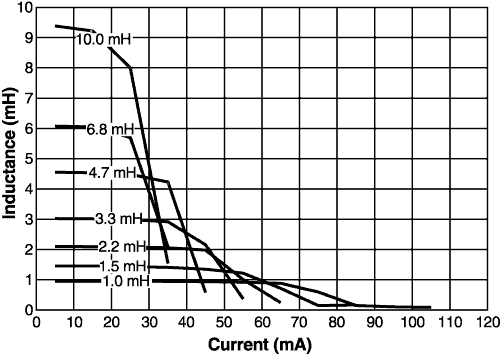

Inductance vs. Current

Irms Derating

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
750	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,0	0,28	or

* Special order
‡ Dot or number marking does not indicate polarity

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.14 - 0.16 mg

Verpackung:

750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
