XGL1060 Series

Ultra-Low Loss Shielded Power Inductors

XGL1060 molded power inductors offer our lowest DC losses and extremely low power losses for a wide range of DC-DC converters. Additional performance benefits include a wider range of inductance values and improved Irms current ratings.

Industry’s lowest DCR and low power losses
High current handling with soft saturation characteristics
No thermal aging – perfect for high-temperature applications
AEC-Q200 Grade 1 (–40°C to +125°C) with a 165°C max part temperature

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$5,22
150	$4,57
300	$3,43
600	$2,06
1200	$1,61
2400	$1,38
5000	$1,26

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Designer-Kits:

Kit	Werte	Preis
C497	11 (3 of each)	$45,00
C509	49 (3 of each)	$125,00

Technische Daten

Electrical specifications at 25°C. Operating voltage 0 — 60 V

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL1060-102ME_	1,0	1,7	2,0	39	19,3	33,0	48,0	29,2	39,9
XGL1060-152ME_	1,5	2,5	2,8	32	16,5	28,0	40,0	22,8	31,3
XGL1060-182ME_	1,8	2,8	3,2	28	13,5	23,5	35,0	20,4	28,2
XGL1060-222ME_	2,2	3,8	4,3	25	12,6	21,5	31,0	18,5	25,3
XGL1060-272ME_	2,7	4,3	4,9	23	11,4	19,7	29,0	17,1	23,2
XGL1060-332ME_	3,3	5,0	5,7	21	10,9	18,1	26,0	16,1	22,0
XGL1060-472ME_	4,7	7,5	8,5	18	9,1	15,4	22,5	13,4	18,2
XGL1060-562ME_	5,6	8,9	10,1	16	7,7	13,4	19,7	12,1	16,4
XGL1060-682ME_	6,8	11,0	12,5	14	7,3	12,7	18,4	10,9	14,8
XGL1060-822ME_	8,2	13,3	15,0	13	7,1	11,8	16,9	9,9	13,3
XGL1060-103ME_	10	16,1	18,0	12	6,5	10,9	15,5	9,0	12,1

Hinweise

When ordering, please specify termination and packaging codes: e.g. XGL1060-103MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.

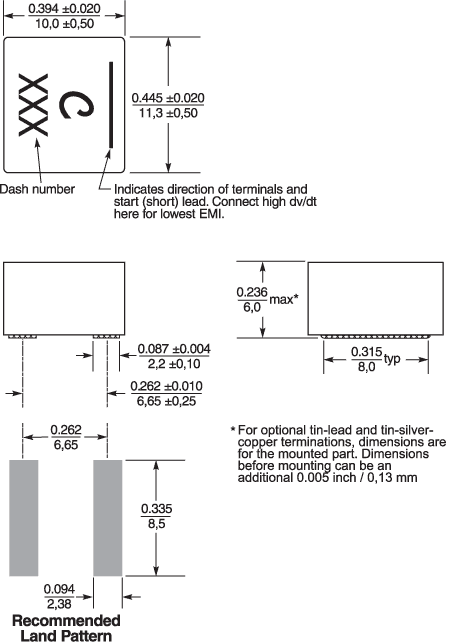

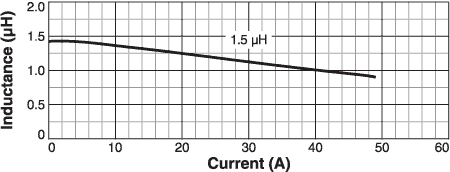

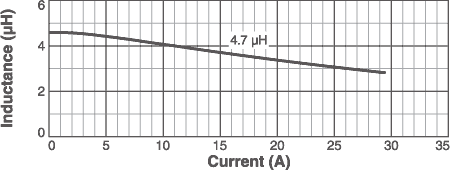

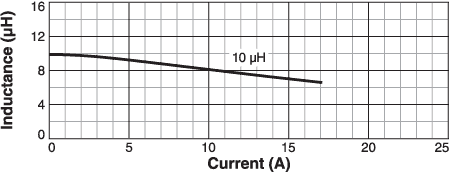

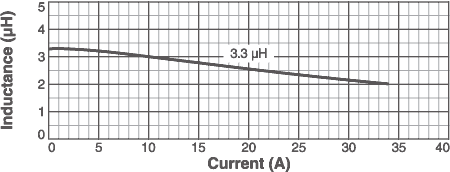

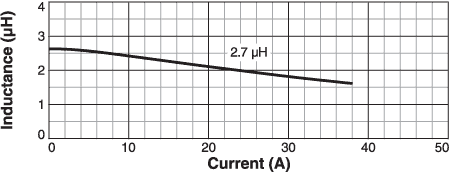

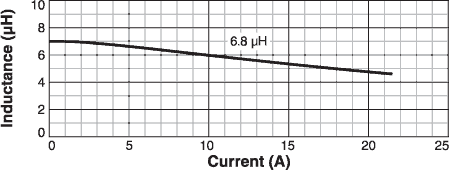

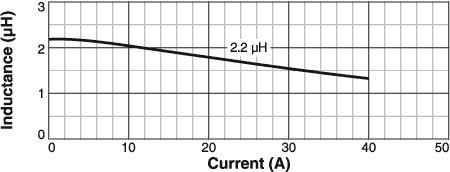

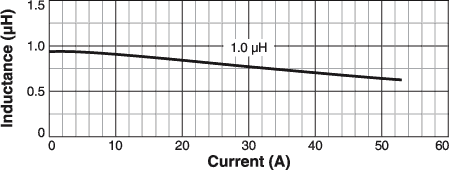

Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Anschlüsse:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

C = 7" machine-ready reel
EIA-481 embossed plastic tape (150 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel
EIA-481 embossed plastic tape (300 parts per full reel). Factory order only, not stocked.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with (40°C rise) Irms current

Lagertemperaturbereich:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations
