XEL4030V Series Ultra-Low Loss

Shielded Power Inductors

Exceptionally low DCR and ultra low AC losses for high switching frequencies (2 to 5 MHz)
Superior current handling with soft saturation characteristics
Composite construction minimizes audible buzzing
High-voltage rating of 120 V - 50% higher than the standard series.
Learn more about Voltage Ratings for Inductors
AEC-Q200 Grade 1 (−40°C to +125°C)
Can withstand high current spikes
Designed for high temperature applications
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
COTS Plus tin-silver-copper and tin-lead terminations available

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,38
100	$2,11
250	$1,56
500	$0,95
1000	$0,73
2500	$0,65
5000	$0,58

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C. Operating voltage 0 – 120 V

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	Isat (A) 5	20°C rise	40°C rise
XEL4030V-101	0,10	1,5	1,8	240	30,0	20,4	25,8
XEL4030V-201	0,20	2,2	2,4	155	22,0	17,0	21,6
XEL4030V-301	0,30	2,8	3,1	115	19,0	14,9	18,9
XEL4030V-471	0,47	4,1	4,6	95,0	15,5	12,3	15,6
XEL4030V-641	0,64	5,3	5,9	80,0	13,5	10,9	13,7
XEL4030V-901	0,90	8,0	8,8	68,0	10,0	8,8	11,2
XEL4030V-102	1,0	8,9	9,8	65,0	9,0	8,4	10,7
XEL4030V-122	1,2	10,4	11,5	60,0	8,7	7,8	9,8
XEL4030V-152	1,5	15,1	16,6	58,0	8,5	6,4	8,1
XEL4030V-222	2,2	20,1	22,1	40,0	6,1	5,8	7,8
XEL4030V-332	3,3	26,1	28,6	35,0	5,9	5,0	6,6
XEL4030V-472	4,7	40,0	44,1	30,0	4,6	3,9	5,1
XEL4030V-682	6,8	67,4	74,1	20,0	3,6	3,0	3,9

Hinweise

When ordering, please specify termination and packaging codes: e.g. XEL4030-682MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes a 30% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Anschlüsse:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2000 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with (40°C) Irms current

Lagertemperaturbereich:

Component: –55°C to +165°C
Tape and reel packaging: –55°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

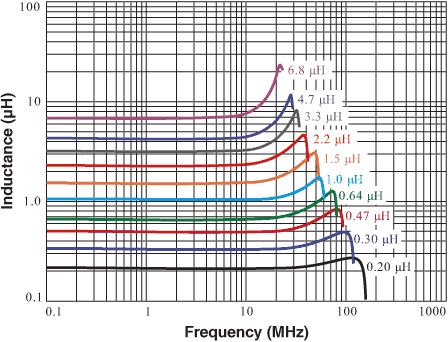

Inductance vs. Frequency

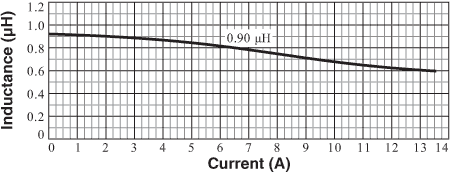

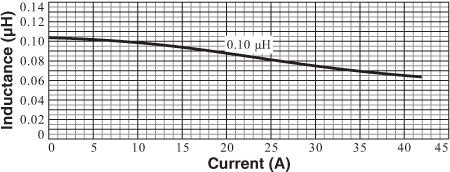

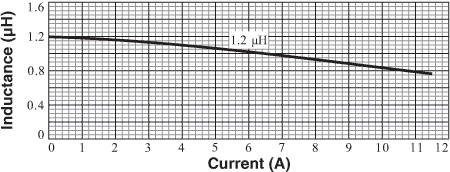

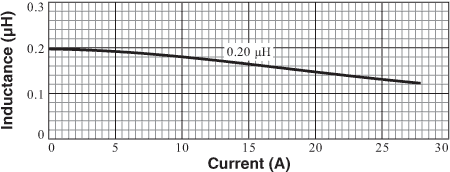

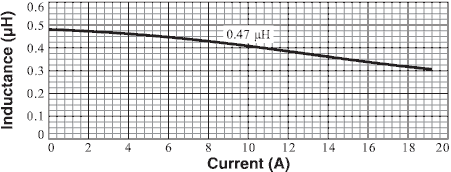

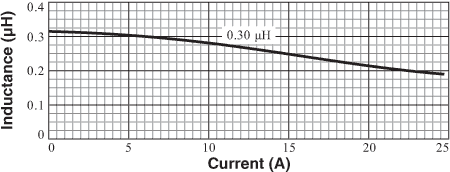

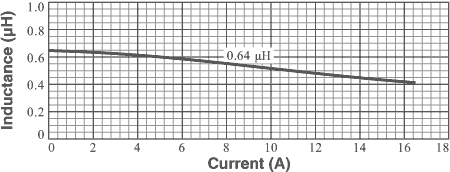

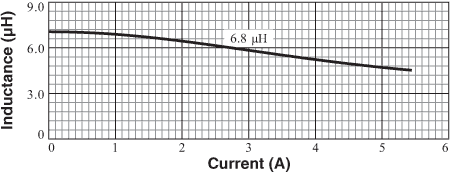

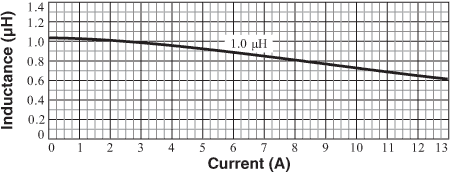

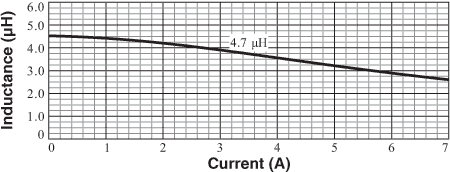

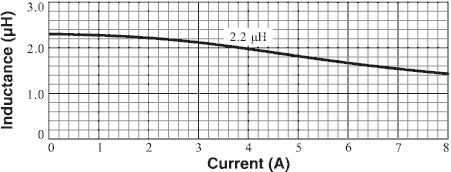

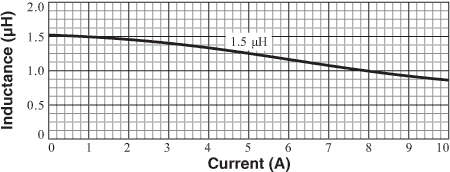

L vs. Current

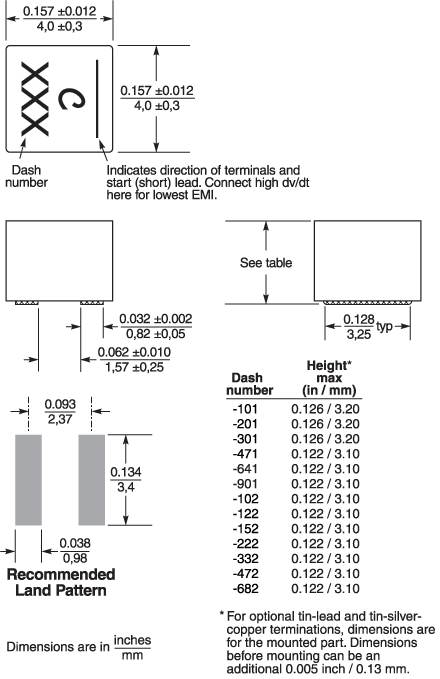

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2000*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,25	0,23

* Special order

Allgemeine Spezifikation

Kernmaterial:

Composite

Gewicht:

0.28 g

Verpackung:

500/7″ reel; 2000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
